AbstractIn recent years, dynamic component-based systems such as OSGi and its derivatives have become very successful. This has created new challenges for verification. Assemblies are created and modified dynamically at runtime, but many existing techniques such as unit testing are designed for buildtime verification. Runtime verification is usually restricted to type checks. We propose a simple component contract language that is powerful enough to represent different types of complex contracts between collaborating components, including contracts with respect to component semantics and quality of service attributes, and contracts that refer to resources other than programing language artefacts. These contracts are based on a pluggable contract vocabulary and can then be used for runtime verification of assemblies. We present a proof of concept implementation of the contract language proposed for the OSGi/Eclipse component model. 1 INTRODUCTIONComponent-based systems have become very popular in the last decade. While initially used mostly in desktop application, component-based software engineering is now used in many different areas including server-side and ubiquitous computing. This has created a number of new challenges for component models with respect to component lifecycle and resource management. Traditionally, component models focus on one particular aspect in order to describe the relationship between collaborating components - interface compatibility. This relationship is defined by a contract that is usually expressed by means of programming language artefacts like Java interfaces, or by using a dedicated interface definition language (IDL). However, modern component models have to address use cases where other types of contracts are involved. For instance, server applications often require a high level of reliability, and applications running on mobile devices have special requirements with respect to the (hardware) resources components can use. If components are dynamically discovered, it might not be enough to know that these components provide the right interface, they must also have the expected behaviour. Beugnards et al. [BJPW99] have investigated types of component contracts and have classified contracts into four layers:
Beugnards et al. have also discussed several technologies that could be used to express contracts for the various layers. This includes the use of IDLs for layer 1, design by contract [Mey92] for layer 2 and TAO [SLM98] for level 4. Other types of contracts not covered by this classification include aspects related to security, trust and licensing. For instance, an organisation might want to prevent the use of components with contagious licenses, or configurations where components with incompatible licenses are linked together. In OSGi, version 4.2 of the specification will contain features that make licensing information part of the machine readable component meta-data and will enable applications to reason about this (RFC 125, [OSGb]). In some modern component frameworks even basic layer 1 contracts can be rather complex. A good example is the successful component model used by Eclipse [Ecl]. Based on OSGi [OSGa] bundles, Eclipse plugins use extension points and extensions to define required and provided resources. Often, these resources are Java types - plugins define extension points using Java interfaces, and require other plugins providing extensions to these extension points to supply classes implementing the respective interfaces. However, in general these contracts are highly polymorphic. An example for this is the org.eclipse.help.toc extension point. In order to extend it, applications have to provide help resources and a table of content XML file instantiating a given document type definition. Moreover, many extension points use complex logical expressions. An example for this is org.eclipse.ui.actionSets. Here, the value of the attribute class must be a name of a class that implements an interface. Which interface this is depends on the value of another attribute (style). In this paper, we introduce Treaty, a component contract language designed to
address these issues. The paper is organised as follows: In section 2, we introduce
the Treaty contract language. We use an Eclipse-based example application for
this purpose. This application contains polymorphic and disjunctive contracts, and
uses unit test cases for layer 2 and layer 4 contracts. We then discuss contract
instantiation and verification. In section 4 we show how contract vocabularies can
be organised in a modular manner. In section 5 we explore the use of unit test cases The Treaty framework and the example used throughout this paper are both accessible on Google code1, the code is licensed under the Apache open source license. 2 FORMALISING CONTRACTSComponents collaborate in different ways. When designing component-based systems in an object-oriented language, the most common way of collaboration is that one component provides an abstract type, while another component provides (an instance of) an implementation class of this abstract type. The use of abstract types decouples the collaborating components. As mentioned in the introduction, modern component-based systems like Eclipse also use different types of contracts. For instance, components have to supply XML documents instantiating document type definitions (DTDs) or XML Schemas. In general, we can consider the artefacts provided and consumed by components as resources identified by uniform resource identifiers (URIs). These resources are typed, examples for types are instantiable Java classes, Java interfaces, IDL interfaces, XML instances, XML Schemas, XSL fi les, DTDs, property files, and CSV files. Relationships associating resources are defined for certain resource types only, for instance Java classes implement Java interfaces, XML documents instantiate DTDs, or style sheet transformations applying to instances of a certain XML Schema. In [DHG07] it has been proposed to use the semantic web standards RDF, OWL and SWRL to model component contracts in a platform-independent manner. The resource description framework (RDF) [KC04] provides a generic standard to describe resources. In addition, the web ontology language (OWL) [MvH04] provides language constructs to define resource types and their relationships, including subclassing and associations between resources of a certain type (object properties). The formal semantics of OWL supports ontology reasoning. Finally, the Semantic Web Rule Language (SWRL) [HPSB+04] supports the definition of derivation rules to define predicates. In [DHG07] it has been shown how contracts can be expressed using SWRL rules defining an "extends" predicate. While this has some obvious advantages, including the existence of a formal semantics for SWRL, the resulting rules are too complex and do not support a compact representation of contracts. Furthermore, these contracts have restricted expressiveness. In particular, complex constraints using exclusive disjunctions cannot be represented. For this reason, we have developed a custom XML vocabulary that supports the compact definition of component contracts. This vocabulary is part of Treaty, the contract framework we propose. Contracts define relationships between two parties: consumer and supplier. Treaty as a framework abstracts from the concrete nature of these entities. For the example used here we use the proof of concept implementation of Treaty for the Eclipse component model. Here, the consumer and supplier roles are mapped to extension points and extensions of Eclipse plugins. Figure 1 shows such a contract2. The respective example is implemented as a set of Eclipse plugins. In this contract, the relationship between a component that prints dates (clock view) and a component that provides a date formatting service (date to string) is defined. The contract is attached to the Eclipse component that has the extension point as an XML file in the component meta-data folder (META-INF). The name of this file is defined by the following naming convention: the name of the extension point followed by the extension .contract. This mechanism is non-invasive - contracts can be added to plugins without modifying existing plugin resources. Treaty does not modify the Eclipse plugin registry either - it is only queried through public interfaces and if there are no contracts found for an extension point it is interpreted as empty contract. A Treaty contract has three parts:
In the example shown in figure 1, the clock component that has the extension point provides the following resources (package names for classes omitted):
The extending component must provide one of two resources: a Java class or an XML document. The contract conditions state that a valid extension must either provide an XML instance that is valid with respect to the schema, or an instantiable class that implements the interface and passes the additional functional and performance tests. Conditions in contracts can be either atomic or complex. To build complex conditions, the usual logical connectives with their standard semantics can be used - see table 1 for details. Three types of atomic conditions are supported: relationships between resources, resource properties, and conditions that a resource must exist. Relationships and properties are equivalent to object and data properties in RDF. The mustExist constraint is weaker - this merely asserts that the respective resource must exist and must be of the declared type. Table 2 specifies the attributes of the atomic contract conditions. The attribute types used are the XMLSchema built-in types defined in [XST].
Table 1: Contract condition types and their semantics 3 CONTRACT LIFECYCLE AND VERIFICATIONThe sample contract is still abstract since it references resources (the resources of the supplier) that are not yet known at the time the contract is written. The supplier is only known later at runtime when late binding occurs. Only then the contract
Figure 1: XML Contract Example
Table 2: Properties of contract conditions can be instantiated. Contract instantiation is the creation of a deep copy of the
contract, and the instantiation of all resource proxies in this copy. A resource proxy
is a resource that has a ref attribute but no name attribute. The ref attribute is a
reference to the components meta-data. The Treaty framework contains an interface ResourceManager that is used to resolve those proxies. The details of resolving are
component-model specific. In the Eclipse-based implementation of Treaty, the ref values are XPath expressions and the ResourceManager uses them to query the Once an instantiated contract exists, verification can be performed. This is the checking of conditions according to their semantics. When complex conditions are present, this is usually done using a top-down strategy. This is a simple process: once all resources are instantiated, contracts are essentially statements of classical propositional logic, and usually they are not very complex. The interesting question is how the basic conditions are checked. This requires the resources to be loaded. For instance, to check properties of a resource of the type AbstractType, the respective class must be loaded so that it can be analysed using the Java reflection framework. This is done with a ResourceLoader. Again, on the framework level this is an interface that must be implemented when adapting Treaty for a particular component model. In case of Eclipse, the loader uses the OSGi bundle classloader to load resources. Figure 2 shows the different resource states and the respective transitions.

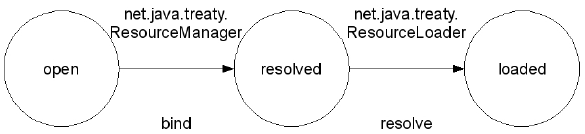

Figure 2: Resource states 4 CONTRACT VOCABULARIES Contracts reference types and properties. Both can be formally defined in a formal
ontology language, but this alone does not define their semantics [Usc01]. For instance,
the semantics of the (Java) implements predicate (figure 1, line 33) is the set
of pairs of concrete Java classes C and Java interfaces I such that C implements I.
In other terms, the semantics can be defined by a function that takes two resources C and I and can compute a boolean indicating whether (C,I) ∈ implements is the
case or not. This particular function is easy to provide: if C and I can be loaded A possible solution to this problem is to define a fixed type system that contains a set of commonly used resource types, including some code that represent the semantics of the respective properties and relationships. However, there might be very project-specific types and relationships to be used in contracts. Consider a scenario where a company has a product with a reporting extension point. This offers customers the option to plug-in their own reporting templates with customised layouts and data aggregation. The resource type to be provided by these components could be VelocityTemplate[Vel]. Or, even better, a product-specific MyReportTemplate type that represents velocity templates that use only a fixed set of variables which the host component can bind. Then the component itself would make contributions to the contract vocabulary in order to enable verification. There is a clear business use case for this: it safeguards the company against faulty third party plugins which would result in customers blaming the company or other plugin providers for the malfunctioning of their software. Therefore, the vocabulary should be kept open and extensible. This can be achieved by using the component model itself to build modular contract vocabularies. Each vocabulary component must provide the following:
In the Treaty implementation for Eclipse, this functionality is defined through the extension point net.java.treaty.eclipse.vocabulary. To extend this extension point, plugins must implement an interface that has the methods to load resources and check conditions, and have to provide an OWL resource that defines the vocabulary extensions. Figure 4 shows the contract for the vocabulary extension point, figure 3 shows a code fragments from the Java class that provides the semantics of the XML vocabulary. This class is an implementation of the net.java.treaty.ContractVocabulary interface. In this class, the xml#instantiates relationship is checked by using a validating XML parser. Treaty merges the ontology contributions into a central merged ontology. This ontology contains all contributed types, properties and relationships, plus annotation indicating which component contributed the respective artifacts. Figure 5 depicts the merged ontology that is used by Treaty for Eclipse with on-board vocabulary contributions only. The graph is visualised using the W3C style, in addition, shaded areas represent the components that contribute the respective vocabulary elements. In the RDF graph, this information is represented using annotations. Italic type is used to highlight resources representing object properties. The reporting template example also shows the benefit of using formal ontologies. For instance, assume that the reporting template type MyReportTemplate subclasses VelocityTemplate, and that the contract requires only the existence of a reporting template. Using the semantics of rdfs:subClassOf, the verifier could then first check whether the resource is of the type VelocityTemplate by using the Velocity parser. If this fails, the resource cannot be an instance of MyReportTemplate either. That is, the formal semantics of OWL can be used to optimise verification. Another ontology feature that is useful here is are rdfs:subPropertyOf relationships between properties and relationships. For this reason, in the proof of concept implementation all components making vocabulary contributions have access to a central singleton Vocabulary that maintains the virtual merged ontology. This allows them to use ontology reasoning when checking contributed properties and relationships. The ontology can be accessed as unparsed stream or as instance of org.semanticweb.owl.model.OWLOntology [BVL03].
Figure 3: Class providing the semantics for relationhips contributed by the XML vocabulary (simplified)

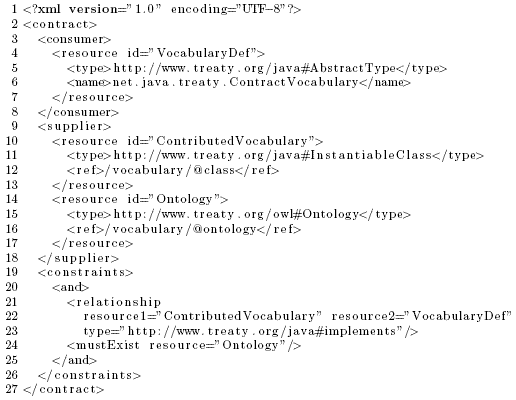

Figure 4: Contract for vocabulary extensions
Figure 5: Merged contract vocabulary used in the example program 5 UNIT TESTING AT RUNTIMEThe example contract (figure 1) uses the verifies property to express minimum requirements with respect to functionality and performance for classes implementing the DateFormatter interface. This relationship is based on JUnit, that is, the test resources are JUnit 4 test cases, and the semantics of the relationship is defined by means of a JUnit test runner. JUnit test cases are defined in the same component that defines the date formatter interface. These tests check whether date formatter implementations can convert dates in less than 10ms, and whether the generated strings contain at least tokens representing date, month and year. Unit testing is particularly useful here as it stands in the tradition of design by contract - describing the semantics of methods through a description of the state changing effects of the methods expressed by pre- and post conditions. The main weakness of unit testing when compared to other verification methods is that verification is based on selected specimen objects. Tests are not sucient to prove or ensure correctness, they can only be used to approximate it. The main advantage of unit tests is that they are widely acceptance by programmers. Also, it is easy to assess the degree of approximation (coverage metrics), and there are well-established development processes to improve test cases when it is necessary to improve the approximation. Unfortunately, JUnit has been built for design and build time verification. As a consequence of this it is assumed that the classes to be tested are known when the test cases are written and can be directly referenced by test cases. On the other hand, our approach supports late binding at composition time, that is, test cases can only reference abstract types and the actual objects have to be injected if the respective classes become available at runtime. Therefore, JUnit needs to be modified to fit into Treaty. More precisely, support for dependency injection mechanism must be added to JUnit. This is achieved by designing test cases that have constructors with parameters that can be used to inject the tested objects before the test case life cycle starts, and a special test runner that can instantiate test cases using this constructor. Such a test runner is part of the Treaty component that makes the JUnit vocabulary contributions. 6 THE BIGGER PICTURE - ADDING CONTRACTS TO COMPONENT MODELSTreaty is implemented in Java and provides support for contract definition and verification for the Java-based Eclipse component model. However, Treaty is largely independent of the underlying component model and could also be used to describe contracts in other component models even if they are not Java-based. In this respect, Treaty is more similar to a scripting language such as JavaScript or a composition language as proposed in [LSNA97]. Treaty itself can be seen as a combination of three separate subsystems:

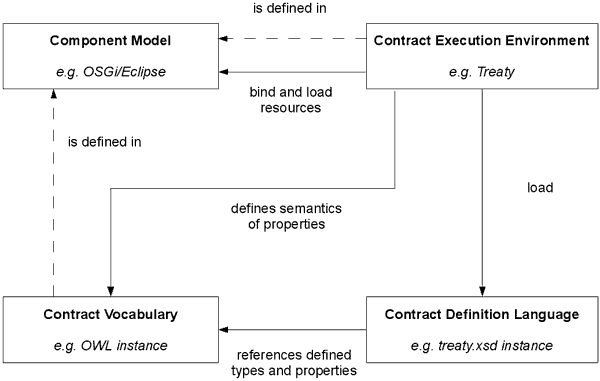

Figure 6 shows the subsystems, their internal relationships and the relationships to the host component model (CM). In particular, the CEE must reference the CM to instantiate resource references using the reflective features of the CM (such as access to meta-data). It also uses the CM to load resources needed to verify constraints. Finally, the CEE provides the semantics for the (data and object) properties used in the vocabulary. The CEE has access to the merged ontology (see figure 5) and can use it for ontology reasoning.
Figure 6: Contract languages and component models Our Eclipse-based implementation adds two more relationships: both the CV and the CEE take advantage of the CM to define both the vocabulary and the parts of the CEE providing the semantics for the vocabulary in a modular fashion. Infi gure 6, these relationships are represented by dashed lines. 7 DISCUSSIONWe have presented Treaty, a component framework that supports the easy definition of complex and polymorphic contracts. Our main contribution is the contract language, and the modular design of the contract vocabulary. We believe that using such a language adds value to environments that use late binding, such as ubiquitous or mobile computing applications where new components are discovered and integrated at runtime. The types of requirements that need to be expressed in environments like this are somehow unpredictable. We therefore think that using any fixed contract language is not appropriate. Instead, what is needed in an extensible contract language based on a platform-independent description of resource types and their relationships. This allows components to plugin vocabulary extensions that can then be used by verifiation tools. There are several related proposals to integrate explicit contracts into component models. Palladio[BKR07] is a performance prediction model. It's main goal is quality of service predictions of architectures based on design models. During the early design stages components are conceived and contracts are defined between components that determine how they perform. These contracts are defined at different stages of the development cycle from different domains such as a component developer and system architect. These contracts are domain specific and provide the basis when testing the overall system performance. Palladio contracts are restricted to layer 1 and 4 contract types. SOFA[PBJ98] is a hierarchical component model designed to provide a platform for software components, coupled with DCUP it supports dynamic evolution of components. SOFA version 2.0[BHP06] is the most recent version and adds additional support for contracts. The component model initially supported interface contracts, behaviour contracts with validation during development, and deployment contracts through connectors. Sofa 2.0 has added the formal modelling of non-functional aspects and greater behaviour validation [Kof07]. The Fractal component model [BCL+06], like SOFA, is a hierarchical component model which mainly focuses on dynamic reconfiguration of complex software systems. Dynamic reconfiguration is achieved through introspection, the discovery of the internal application structure, and intercession. This reconfiguration to be safe verification of the component systems consistency is needed, for this problem a contracting system was developed, ConFract [CRCR05]. This system supports the annotation of interfaces with pre- and post-conditions, and the checking of these conditions at runtime. Treaty is still rather simple as simplicity was one of the major design goals. One reason for Treaty's simplicity is the fact that much of the work is delegated to the vocabulary contributions. However, in many cases it is rather easy to write these contributions, and the level of reuse for vocabulary elements would be much higher than the level of reuse of the actual application components. The main advantage is that such an open framework supports a consistent representation of different contract types by using a common meta-model (OWL). To the best of our knowledge, no existing (academic or industrial) component models or architectural description language achieves this. In the prototype we have presented, verification is used as a central service that checks the integrity of the entire system. It might be more useful in many circumstances to check only contracts between certain components, for instance in response to lifecycle events such as component activation or upgrade. As verification also needs resources such as classes that must be loaded and instances that must be created, mechanisms to switch it on and off or contract prioritising (runtime levels) might be useful. Integrating verification closer with the component lifecycle also creates new challenges. In the Eclipse based implementation, verification triggers class loading. This of course is unwanted in a framework like Eclipse that is based on lazy initialisation. There are several possible strategies to deal with with problem, including reseting the plugins after verification, or running verification only if the system is in check or safe mode. An interesting issue is whether contracts should be attached to components consuming resources (as we have done this), to components providing resources or should be detached from either ("contracts as entities in the middle", as proposed in [Szy00]. On the framework level, Treaty does support contracts on both sides and in the middle, and the aggregation of multiple contracts. The proof of concept implementation based on Eclipse however only support contracts on the consumer side at the moment. An obvious limitation of Treaty is that verification is strict. That is, verification either succeeds or fails. Sometimes it would be more desirable to have soft verification that computes a value indicating to what extent a component assembly satisfies the contract. We believe that is would be possible to add support for soft verification to Treaty by annotating the contract conditions with ratings, and to use Zadeh operators [Zad65] to compute ratings for complex constraints. 1 http://code.google.com/p/treaty/, the Eclipse update site URL is http://treaty.googlecode.com/svn/trunk/treaty-eclipse-updatesite/site.xml. The Treaty plugin requires JDK 1.6 or better. 2 The package names are abbreviated REFERENCES[BCL†06] Eric Bruneton, Thierry Coupaye, Matthieu Leclercq, Vivien Quma, and Jean-Bernard Stefani. The fractal component model and its support in java. Software: Practice and Experience, 36:1257-1284, 2006. [BHP06] Tomas Bures, Petr Hnetynka, and Frantisek Plasil. Sofa 2.0: Balancing advanced features in a hierarchical component model. In SERA '06: Proceedings of the Fourth International Conference on Software Engineering Research, Management and Applications, page 4048, Washington, DC, USA, 2006. IEEE Computer Society. [BJPW99] Antoine Beugnard, Jean-Marc Jézéquel, Noél Plouzeau, and Damien Watkins. Making components contract aware. Computer, 32(7):38-45, 1999. [BKR07] S. Becker, H. Koziolek, and R. Reussner. Model-based performance prediction with the palladio component model. In Proceedings of the 6th international workshop on Software and performance, pages 54-65. ACM Press New York, NY, USA, 2007. [BVL03] Sean Bechhofer, Raphael Volz, and Phillip Lord. Cooking the semantic web with the owl api. In In Proc. 2nd International Semantic Web 16 Conference (ISWC), Sanibel Island (FL US, pages 659-675. Springer, 2003. [CRCR05] Philippe Collet, Roger Rousseau, Thierry Coupaye, and Nicolas Rivierre. A Contracting System for Hierarchical Components, pages 187- 202. 2005. [DHG07] Jens Dietrich, John Hosking, and Jonathan Giles. A Formal Contract Language for Plugin-based Software Engineering. In Proceedings of the 12th IEEE International Conference on Engineering Complex Computer Systems (ICECCS 2007), pages 175-184, Washington, DC, 2007. IEEE Computer Society. [Ecl] Eclipse. http://www.eclipse.org. [HPSB+04] Ian Horrocks, Peter F. Patel-Schneider, Harold Boley, Said Tabet, Benjamin Grosof, and Mike Dean. SWRL: A Semantic Web Rule Language Combining OWL and RuleML. W3C member submission, W3C, May 2004. http://www.w3.org/Submission/SWRL/. [KC04] Graham Klyne and Jeremy J. Carroll. Resource Description Framework (RDF): Concepts and Abstract Syntax. W3C recommendation, W3C, February 2004. http://www.w3.org/TR/2004/REC-rdfconcepts-20040210/. [Kof07] J Kofron. Behavior Protocols Extensions. PhD thesis, Charles University Prague, 2007. [LSNA97] Markus Lumpe, Jean-Guy Schneider, Oscar Nierstrasz, and Franz Achermann. Towards a formal composition language. In Proceedings of ESEC 97 Workshop on Foundations of Component-Based Systems, pages 178-187, 1997. [Mey92] Bertrand Meyer. Applying "Design by Contract". Computer, 25(10):40- 51, 1992. [MvH04] Deborah L. McGuinness and Frank van Harmelen. OWL Web Ontology Language Overview. W3C recommendation, W3C, February 2004. http://www.w3.org/TR/2004/REC-owl-features-20040210/. [OSGa] The OSGi Alliance. http://www.osgi.org. [OSGb] OSGi service platform release 4 version 4.2 - early draft.http://www.osgi.org/download/osgi-4.2-early-draft.pdf. [PBJ98] F. Plasil, D. Balek, and R. Janecek. Sofa/dcup: architecture for component trading and dynamic updating. Configurable Distributed Systems, 1998. Proceedings. Fourth International Conference on, 0:43-51, May 1998. [SLM98] Douglas C. Schmidt, David L. Levine, and Sumedh Mungee. The design of the TAO real-time object request broker. Computer Communications, 21(4):294-324, 10 April 1998. [Szy00] Clemens Szyperski. Components and contracts. Dr Dobbs, May 2000.http://www.ddj.com/architect/184414613. [Usc01] Michael Uschold. Where is the Semantics in the Semantic Web? In Workshop on Ontologies in Agent Systems, Montreal Canada, May 2001. [Vel] The Apache Velocity Project. http://velocity.apache.org/. [XST] XML Schema Part 2: Datatypes Second Edition, W3C Recommendation 28 October 2004. http://www.w3.org/TR/xmlschema-2/. [Zad65] Lotfi Zadeh. Fuzzy sets. Information and Control, (8):338-353, 1965. About the authors
Jens Dietrich and Graham Jenson: "Components, Contracts and Vocabularies - Making Dynamic Component Assemblies more Predictable", in Journal of Object Technology, vol. 8, no. 7, November - December 2009, pp. 131-148 http://www.jot.fm/issues/issue_2009_11/article4/ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
