Gradual Encapsulation
Stephan Herrmann, Technische Universität Berlin, Germany
|
 |
REFEREED
ARTICLE
PDF Version |
Abstract
Strictly enforced encapsulation is a key concept for modular software designs. However,
in many situations like unanticipated reuse, productivity can be raised by a more flexible approach to encapsulation. Also the discussion about the role of "obliviousness" in
aspect-oriented programming is one instance of a general conflict between strictness
and flexibility. Here, different technologies take di erent stands and the choice of a
particular technology locks a project into prioritizing one side over the other.
In this paper we suggest that this choice should not be determined by technology
but technology should support the co-existence of encapsulation and its inverse —
decapsulation — within a single system. We postulate four principles that define
a solution space, called "gradual encapsulation", in which each project should find
the best fitting balance between encapsulation and decapsulation with the option
to shift this balance during the life time of a system. We use the programming
language ObjectTeams/Java for illustrating how encapsulation and decapsulation can
be supported by technology and how the four principles can be implemented on top
of such technology.
1 INTRODUCTION
This paper is about the inherent conflict between encapsulation and "obliviousness"
[7]. It bundles three strands of discussion, that were started independently: At
SPLAT'06, Ossher [16] proposed "confirmed join points" as a basis for negotiating
possible join points between a "class owner" and an "aspect owner". At SPLAT'07,
Leavens and Clifton [13] suggested that language engineers should consider more
than one concern at a time and that they should use gradual scales for assessing a
language with respect to a given concern. At ECOOP'07, Siek [17] demonstrated
how typed and untyped parts of a program can safely exist side by side and how
type analysis can cope with this combination of paradigms.
At SPLAT'08 [12] we started to connect these strands by arguing that the suggestion
by Leavens and Clifton should be taken one step further, as to defer compromises
from the point of language design down to the point of language usage.
Borrowing from Siek's notion of "gradual typing", we initially proposed "gradual
encapsulation", where indeed the conflict between encapsulation and obliviousness
remains unsettled in the language. We mentioned, that the approach of confirmed
join points enables a project to negotiate the conflict of encapsulation vs. obliviousness
in a case based manner. From these ingredients we ventured to say that
language designers should in general be more modest in a way of fixing fewer decisions
in the language and passing more options down to the users of the language.
In this paper we expand the ideas from [12], focusing on the role of encapsulation
with a specific view on how it inherently conflicts with aspect-oriented programming
(Sect. 2). We elaborate the concept of gradual encapsulation, which connects language
design issues (Sect. 3) to necessary organizational considerations (Sect. 4).
This approach reconciles previously incompatible requirements, supporting new,
manageable ways even for the difficult scenario of aspect-base co-evolution. We
will present, how the concept can be implemented in a practical setting, using the
language ObjectTeams/Java for illustration, and drawing from experience of using
ObjectTeams/Java for adapting a large, complex, real-world system (Sect. 5). We
will conclude with a discussion about costs and benefits plus a summary (Sect. 6).
2 ON THE ROLE OF ENCAPSULATION
Among all principles in software engineering, encapsulation stands out to the degree
that hardly any software engineer seems to question the primacy of encapsulation as the pre-requisite to a good modular system structure, which in turn is a pre-requisite
to many software engineering properties like comprehensibility and maintainability.
Therefore, programming languages are commonly considered "good for software
engineering" when they help to strictly enforce encapsulation, and "bad for software
engineering" if they provide means for bypassing any module boundaries. In this
mind set, the world of software is like a huge piece of Lego artwork, where anything can be composed from neatly delineated building blocks, plugged together at simple,
predefined plug-points.
Complexity rules out Lego-like encapsulation
Today's software business follows rules that are di erent from the Lego-metaphor:
systems are more complex than what can be expressed with Lego pieces. By their
very nature, Lego pieces are not good for capturing crosscutting concerns and all
discussions about "obliviousness" as a possible foundation of aspect-oriented programming
hint at experience from practical development, where ignoring module
boundaries may have a value — be it a double-edged value.
Another source of complexity is actually imposed by the organizational context of software development. Software is not always developed as a one-shot production
of a monolithic system, but often bits and pieces are gathered from existing
libraries, frameworks and previous applications, whose origins are arbitrarily remote
and scattered, i.e., this is code written by someone else.
In the early days of software reuse, developers were perhaps happy when they
found any library that came close to what they needed, and would adjust the design
of their application to the given facts of that library. Today's clients (and developers)
seem to be more demanding: they would insist on exactly what features they had
in mind for their application. Competition does not allow to adjust the product under development to the libraries that are found for building it. To the contrary,
reusing a library should only help, not constrain the development. If the library
(or other piece of reusable software) does not perfectly fit, it should be made fit.
In software development with such opportunistic reuse, adaptation of given parts
is daily business. Such adaptation rarely fits into the neatly declared interfaces of
a Lego piece. Rather, these adaptations may require adjustments at the inside of
other people's components.
Purists who object to this role of opportunistic adaptation, should carefully
weigh the alternatives. Wallnau et al [18] draw a splendid picture of what happens,
when systems are to be built from black box COTS components with full obedience
to encapsulation: They observed discontinuities in the design space of systems built
this way, which means: arbitrarily small changes in the system's requirements can
not always be dealt with by small changes in the design, but by a certain small
change, an entire design would just break down and had to be replaced with a
completely new design, simply because a third-party component would not allow a
required alteration of its behavior. Such a switch from one design to another is a
worst case scenario, incurring uncontrollable costs for only small improvements, thus
easily causing complete project failure. From this we learn that even if software reuse
worked well up-to a certain point in time, by simply plugging together existing black
box components, as the system evolves we may come to a point where we are faced
with only two alternatives: start over (with an alternative design, perhaps using
a completely di erent set of reusable assets) or perform the adaptations needed to
reconcile the existing design with the new requirement.
Technical options regarding encapsulation
If we put aside legal considerations of changing third-party software, we find that
both "worlds" are actually supported by some existing technologies:
- Most class-based, statically typed, object-oriented programming languages
support encapsulation and their compilers can be used to check and enforce that module boundaries are respected. Component frameworks add further
levels of blackness of their components.
- Other programming languages may not have any notion of visibility by which
class features are divided into public and private parts, or languages may
support a meta-object protocol by which all encapsulation can be bypassed, or a language may support AOP, etc.
Leavens and Clifton [13] criticize that language design is often discussed in black
and white, in a boolean judgment about perhaps only one language property that
for a given discussion is considered paramount. Their contribution is twofold: (1)
They encourage language designers to evaluate how well a language supports a given
concern on a gradual scale rather than a boolean one. (2) They encourage language
designers to consider multiple concerns — even conflicting ones — simultaneously, in order to develop compromises that have much higher values than a language that
perfectly supports one concern but completely fails on an other.
Applied to the conflict between encapsulation and adaption, this could be read
as a plea for a language that supports - say - "90% encapsulation" and "10%
adaptation" (using a fictitious scale à la [13]). At a first look such a language could
indeed be a suitable platform for projects where encapsulation is the default and
some adaptations are also possible. The problem is: at the start of a project it
is impossible to know which level and kind of adaptation may become necessary
later-on. Yet, the choice of the programming language must be settled at the start.
Now, what happens if a project started in a perfect Lego world with a "100%-
encapsulation" language? It will never benefit from existing technology for adaptation,
because it is locked into a language that prescribes the absence of violations of
the pre-defined module structure.
Opposite, if a project started with a focus on flexibility in order to glue together a
set of noncompliant components, what if the design should be consolidated later, in
order to more and more respect module boundaries, perhaps before shipping a first
public release? If they chose a technology that only favors flexibility, this project
will have very difficult times in enforcing policies which no compiler actually checks.
Finally, when calling for (perhaps densly) populating the language space between
"100% encapsulation" and "0% encapsulation" we would end up with a extreme
fragmentation between users of far too many languages, with no chance of reuse due
to ubiquitous language barriers.
Debugging the debate
This dilemma may sound ridiculous, so what's wrong in this discussion? Encapsulation
is good for many software engineering properties. Reuse is an economical must.
The need for adaptation directly follows from conflicts between reuse and deviating
requirements. What can language design do to solve the dilemma?
After mentioning that some complexity in this situation is not caused by technology
but by the organizational context of software development, it is only a small
step to understanding that technology (in the form of language design) is not the
right level for solving the dilemma. The mentioned phenomenon of design space
discontinuities does not arise from poor language design. Even if we would put together
all known mechanisms for defining interfaces and encapsulation at any level
of precision (think of friends in C++, class-by-class export in Ei el, etc.), we simply
cannot allways refactor an existing design to accommodate new requirements because
we may not be allowed to refactor those pieces we acquired from third parties,
nor can we change the past to produce a "perfect design" in the first place.
In real world projects many interface conflicts are conflicts between di erent
stakeholders working at di erent points in time, producing di erent pieces of software,
and having di erent goals. These are the real barriers we have to consider, of which a given degree of encapsulation may only be a technical manifestation. And
yes, we do have to consider legal issues when adapting third-party software. Along
these lines, one might even claim that AOP doesn't yet have a sound business model,
if liabilities of an aspect programmer are not legally defined.
It is our belief that the task of the language designer is not in deciding about
the degree of encapsulation supported by the language, but in passing such options
down to the developers using the language. These developers, embedded in their
respective organizational contexts, are the only ones who can e ectively balance the
specific forces in a given project.
This paper defines gradual encapsulation as an approach where technology supports
both encapsulation and its absence (or violations of module boundaries).
Gradual encapsulation shall also mean, that a project can explicitly choose and establish
its specific compromise between the extremes. Gradual encapsulation shall
fi nally mean a method, guided by four principles, by which the newly gained powers
can be mastered.
3 BALANCING ENCAPSULATION AND FLEXIBILITY
In order to avoid locking a project into either the safety provided by encapsulation or flexibility of obliviousness with a lack of support for the respective other goal,
we develop the concept of gradual encapsulation. We use as our starting point
the situation of Java-like languages, i.e., languages with static typing and strict
enforcement of a predefined encapsulation policy. In order to re-establish some
degree of flexibility we add explicit support for intentionally breaking encapsulation,
which we call decapsulation.
Decapsulation
In order to be very explicit, we coined the term decapsulation to refer to any mechanism
that intentionally breaks encapsulation. Since encapsulation will always remain
a major goal, we want "decapsulation" to be perceived as a potentially dangerous
mechanism. This should motivate developers to keep the extent of decapsulation at
a minimum1.
Decapsulation means any kind of communication in a software system which
crosses an encapsulation boundary along paths that have not been specified (cf.
Aldrich's principle of "communication integrity" [1]). Fundamentally this communication
can happen in two directions: from a client to hidden details of the encapsulated
module or from within the encapsulated module to the client.
- In API decapsulation a client uses regular object-oriented concepts for accessing
elements (classes, methods, fields) in a base module with the only
di erence that access restrictions as defined by the providing module are intentionally
disregarded. This kind of decapsulation enables a client to modify
the interface of a third-party component by using a wider interface than it was
offered by the component.
- In join point decapsulation the client component does not call methods of
the supplier component, but rather instructs the supplier to call methods of
the client at specific join points. This kind of decapsulation enables a client to modify the behavior of a third-party component. Although carefully designed
aspects ("harmless advice" [4]) can indeed leave the base program intact, the
mere potential of an aspect to indeed modify the base code's behavior should
be taken seriously. Thus we propose to consider any aspect as breaching
encapsulation unless it is proven to be harmless.
By this distinction we suggest an understanding of encapsulation — and thus decapsulation
— that is not so much focused on visibility ("is module A allowed to see member m of module B?") but rather on selectively permitting communication between
elements of di erent modules. Thus, each instance of decapsulation adds one
— previously undeclared — channel of communication to the architecture (cf. [1]).
At the technical levels both kinds of decapsulation may require to change the
code of the base component. In Java-based languages this can be performed by byte
code transformations that can be executed at either compile-time or load-time or
run-time. More specifically, in AOP-languages these transformations are the job of
the aspect weaver.
Confirmed Join Points
Standard aspect-oriented programming languages tend to come with support for
both encapsulation and join point decapsulation. Thus it shouldn't surprise that
this confl
ict has started a heated debate, usually connected to the concept of "obliviousness".
While most contributions to this discussion try to solve the issue on a
purely technical level, they miss an essential point: they don't sufficiently question
the motivation for wanting either encapsulation or decapsulation. Thus, the desire
for either strictness or flexibility is usually taken for granted, almost in the style of
a dogma.
It is the contribution of Ossher [16] to point out "that the balance of control
and flexibility is largely a social issue among the developers responsible for di erent
parts of the software, such as class and aspects owners". Only when considering the
di erent stakeholders involved, it is possible to find suitable compromises. Ossher's
concept of confirmed join points is based on the two roles of class owner and aspect
owner, where the class owner is by nature conservative, striving to protect his code,
whereas the aspect owner is progressive in terms of desiring to adapt existing base code by applying aspects to it. Ossher suggests the confirmation of join points as an
additional, annotation-like part of the base software. Join point confirmation asserts
that class and aspect owners have come to an agreement about the suitability of
specific join points.
From the approach of confirmed join points we take inspiration for defining
gradual encapsulation. Gradual encapsulation takes on the perspective of the stakeholders
involved, considering also a third role: the application user. Furthermore,
gradual encapsulation broadens the scope to also include API decapsulation and
defines four principles that form a conceptual framework for how technology and
organizational processes could be harmonized.
4 PRINCIPLES FOR GRADUAL ENCAPSULATION
We agree with Leavens and Clifton[13] regarding the necessity to consider various
concerns in language design as candidates for compromises. Yet, we uphold that
encapsulation plays a unique role, because encapsulation is able to directly reflect the barriers in the organization domain (i.e., barriers/conflicts between stakeholders)
into the software proper. By this role new means for elaborating project specific
compromises are even more important than compromises regarding other concerns.
In order to establish decapsulation as a manageable option that adds some needed flexibility to the development process, we propose the following four principles to
which any mechanism for decapsulation should adhere:
Analyzability: It should be very easy to find out which parts of a system are
a ected by decapsulation and which parts are not. Such analysis should be
possible for the architecture-levels of components and classes and also for individual
elements of control flows.
Negotiation: Decapsulation must be subject to negotiation between all stakeholders
involved. Each stakeholder must be able to specify his or her assumptions
and should state the guarantees he is willing to give if those assumptions are
met. Based on the statements of other stakeholders each stakeholder must be
able to judge the risks he is willing to accept.
Enforcement: Whichever level of encapsulation has been chosen, perhaps as the
result of some negotiation, it must be possible to enforce adherence to the
architecture. While dynamic checks at runtime are ultimately needed to create
trust, as much as possible should be statically checked during development.
Migration: For each system using decapsulation a gradual path must exist along
which the system can be migrated to an equivalent system not using decapsulation.
The same should be true for the opposite direction. By requesting
the path to be gradual the migration can be performed systematically while
avoiding unnecessary risks during migration. Naturally, the consensus of all
three stakeholders may be required to actually perform such migration.
Analyzability The principle of analyzability mandates to mark any additional
paths of communication within a system that are not explicitly allowed by the
interfaces of the components involved. It should be noted that such paths of communication
consist of connections between individual pairs of components: For API
decapsulation a specific client component may interact with non-public elements of
a specific supplier component. At the same time other clients should still respect the
public API of the supplier component. When considering join point decapsulation
one specific aspect component receives the control from its specific base component,
with no other components being a ected. Such bilateral access permissions are difficult to achieve in Java-extensions, since in Java visibility is not defined between
individual pairs of classes but exports are defined in a much more coarse grained
style.
When we define analyzability based on the communication paths that are possible
in a system this is still open to refinement in two directions: (1) If static analysis
of an aspect can show that the aspect will never in fluence the base behavior (an
"Observer" in the terminology of [3]), this aspect may not need to be considered in
the subsequent steps "negotiation" and "enforcement" except for issues of software
evolution). (2) Our interface level analysis could be extended with a detailed feature
interaction analysis in order to obtain a much better understanding of the behavioral
impact of an aspect. Both kinds of supplementary analysis require at least the level
of analyzability defined above and are certainly beneficial if available2.
One purpose of the principle of analyzability is to clearly delineate areas of flexibility from areas of safe encapsulation. Thus, a purpose of any decapsulation
annotation must be to allow for the reverse conclusion: all parts of the system that
are not marked as applying decapsulation are guaranteed to follow the discipline of
encapsulation.
Given that a component may define its public interface and given that other parts
of the system may declare to use decapsulation to access hidden details, will this
not create an infinite regression of measures and counter-measures? Shouldn't the
language also support annotations to prohibit any decapsulation of specific parts?
Will those prohibited areas not create the need to define some super-decapsulation
that may even override those prohibition annotations, etc. ad infinitum?
These questions cannot be solved at the technical level because no fixpoint could
be identified if the powers of encapsulation and decapsulation were exactly symmetric.
The good news is that a plain technical solution for this issue is not needed,
moreover, it is not the purpose of technology to settle this issue.
Negotiation Zooming out of the system and considering also the stakeholders
involved, we identify three parties: a base-owner, an adaptation developer and the
user of the composed system3. The base owner provides some reusable component
and wants to protect this component from unsuitable uses. The adaptation developer
wants to use the base component in a system where the base component needs
to be adapted to specific requirements. The user finally decides which system he or
she wants to install and run.
Basically, the base owner has a conservative position, because he would be unable
to guarantee correct functioning of the base component if arbitrary adaptations were
allowed. On the other hand the base owner might be interested in broadening the
set of potential uses for his base component, because this may lead to higher sales
fi gures. The adaptation developer strives for re-using the base component even if
it does not perfectly match all of his requirements. All mentioned motivations for
decapsulation apply to the adaptation developer because he wants to combine the
power of evolving the system to any desirable direction with the reduced e orts of
buying an existing base component instead of building it from scratch. Yet, the
adaptation developer should not fully ignore encapsulation: It is him or her who
must guarantee proper functioning of the whole system, even having limited means
to investigate the base component. Thus the adaptation developer will want to reuse
the guarantees given by the base owner, which, however, are only valid if the
base component's encapsulation is not breached.
In the end it is the user who decides whom to trust. The user may for himself
balance risks against actual costs. As a foundation for this decision the user needs
to exactly know about the state of negotiation between the base owner and the
adaptation developer. In a perfect world, the user will find out that any interactions
programmed by the adaptation developer are actually acknowledged by the base
owner. By this acknowledgment the base owner will testify that his guarantees are
still valid in this particular adaptation scenario. If the consent of the base owner
cannot be shown, running the application will imply a higher risk, because parts of
the program will not be covered by the guarantees of either developer, unless the
adaptation developer promises on his own, that the adapted base component will
not misbehave. If a risk remains that is not tolerable, the user may have to pay
the adaptation developer more money in order to create a substitute for the base
component, whose public API will perfectly serve the application without any need
for decapsulation.
Enforcement The issue of enforcement relates to analyzability as discussed above
but reverses the obligations. A system with weak encapsulation can still satisfy the
principle of analyzability if all decapsulation happening within the system can be
discovered by looking at the code or by using additional tools. Any stakeholder may
investigate the state of the system regarding encapsulation but the initiative must
come from a stakeholder. Conversely, the principle of enforcement disallows any decapsulation unless explicitly allowed as the result of negotiation. Thus, enforcement re-establishes encapsulation as the default and any attempt to apply decapsulation
is strictly checked against the approved policy, not tolerating any violations.
Analyzability and enforcement emphasize the two perspectives of development
and execution: Development requires some freedom to create the best suitable architecture.
In a component-based system development includes system assembly
and thus may also involve an end-user composing a system from individual parts.
In all development activities analyzability is an important guide to achieve a good
architecture. When a system is executed the architecture is fixed,
exibility is no longer needed, but now safety comes into focus. It is a prerequisite to any safety
analysis that no interaction between components can ever happen that has not been
explicitly specified.
Based on enforcement, design by contract can be applied also in the context of
gradual encapsulation. With enforcement any failure at run-time can be ascribed to
the exact component that did not fulfill its contract. This is the basis for contractual
issues of licensing, since component vendors can be guarded against unchecked
decapsulation.
Migration Since one of the motivations for introducing decapsulation was the observation
of discontinuous design spaces in the presence of third-party components,
we must show how decapsulation helps to re-establish continuity of the design space.
This issue introduces two questions:
- Can encapsulated components be migrated to a state of enhanced
exibility?
- Can a system using decapsulation be consolidated in order to re-establish strict encapsulation?
Question (1) is answered by the very concept of decapsulation. Any solution to (2)
will rely on the principle of analyzability. Only if the locations of decapsulation are
known precisely, it is feasible to address and restructure those locations in order
to avoid decapsulation. If decapsulation was motivated by rapid development, each
single occurrence of decapsulation must be investigated in order to check whether a
simple extension to an existing interface suffices to avoid decapsulation.
If decapsulation was motivated by the need to adapt a component for which one
does not own the code, consolidating the application will require additional negotiations
among base owner and adaptation developer. In this scenario negotiation
could mean to change the public API of the base component so that decapsulation
is no longer needed. The new API will then be available to all clients. On the
other hand, several reasons exist why an architecture using an aspect (and thus
decapsulation) might be superior over an architecture with an extended base API.
In that case, negotiation should simply result in the permanent confirmation of a
set of join points with the guarantee that these join points will also be available in
future versions.
Either way the main difficulty lies in achieving a consensus between both stakeholders,
and difficulties shouldn't be aggravated by artificial barriers of technology.
To the contrary, the principle of analyzability provides all necessary information to
aid these negotiations.
The four principles presented above define what we call gradual encapsulation:
Encapsulation that can be applied as a strict discipline or can be ignored and where
di erent shades between all and nothing are well supported, too. Selection of the
policy to be applied for a given project should not be dictated by technology but
rather be subject to decisions of the project management.
5 IMPLEMENTING GRADUAL ENCAPSULATION
Adopting the concept of gradual encapsulation has both a technical and a social
part. In this section we focus on how a programming language (and perhaps further
tooling/infrastructure) can and should support gradual encapsulation. Given that
both extremes — strict encapsulation and full, unrestricted flexibility — are already
supported by individual technologies, the goal is not in supporting architectures
that until now were impossible. The goal is in providing a well integrated set of
conceptual tools that empower each software project to choose its specific balance
of strictness and flexibility in a way that this balance can be adjusted still while the
project is running.
Clearly, encapsulation and decapsulation are mechanisms to be provided by the
programming language. Regarding encapsulation we see an acceptable starting point
in the visibility restrictions as they are implemented in Java-like programming languages.
Even stronger support for encapsulation can be achieved when also borrowing
from component technology or from some kind of alias control. Decapsulation,
on the other hand, is inherently supported by most aspect-oriented programming
languages. More specifically, join point decapsulation seems to be a necessity for
AOP, whereas API decapsulation is a convenient extension but has rarely been discussed
in the aspect-oriented community.
The contribution in this section is in demonstrating how those existing extremes
can be combined in a single, coherent programming language without a premature
bias to either side. After discussing support for encapsulation and decapsulation we
will present a Join Point Access Controller as a checker for join point confirmations.
Finally we will iterate through the four principles discussing how far technology
can go in supporting these. Throughout this section we will use the programming
language ObjectTeams/Java for illustration (OT/J, [9]), which already incorporates
the mechanisms proposed in this section. We intentionally refrain from using concrete
OT/J source code examples, because only the fact that certain bindings are
explicit in the source code is relevant, not the exact syntax. The interested reader
can find various entry points regarding OT/J on our web page [15].
Encapsulation
When looking at aspect-oriented programming languages based on an object-oriented
host language like Java, the degree of encapsulation mandated by gradual encapsulation
is already provided by that host language. Naturally, also aspects should be
protected by encapsulation, which is generally achieved by making aspect a classlike
construct. All Java-based aspect languages basically inherited the standard,
class-based styles of encapsulation from their host language Java.
In order to understand how OT/J strengthens encapsulation, it suffices to consider
the two kinds of classes introduced by OT/J: teams and roles, plus the underlying
type-theory of family polymorphism[6]. An aspect in OT/J is written as
a team class containing a set of role classes. Both team and role classes are much
more normal classes than an aspect in AspectJ. This lets them participate in arbitrary
interactions and relations including instantiation, inheritance and nesting. In
AspectJ various constraints like, e.g., "a nested aspect must be static" prevent aspects
from living up the full power of classes, a regression which is carefully avoided
in OT/J.
By applying family polymorphism[6] a team instance actually protects its contained
role instances, which is stronger than Java's static visibilities. In [11] we have
presented how this protection can be taken even further towards strong confinement
and representation encapsulation. Since teams can be nested, this strong form of
encapsulation scales well even for large designs.
In [10] we have presented OT/Equinox, the integration of OT/J with the component
framework Equinox (Eclipse's implementation of the OSGi standard). Using
OT/Equinox, developers can exploit the encapsulation support from OT/J and
Equinox together. In [10] we have discussed in which way support for encapsulation
in OT/Equinox is stronger than AspectJ-based extensions of given component
models. The key point here is an explicit aspect binding declaration between a team
class and a base bundle. We will discuss below, how these declarations contribute
to the analyzability of a system.
Decapsulation
Join point decapsulation is inherent to most aspect languages. However, join
point decapsulation in AspectJ is fully unconstrained, without even an option to
re-establish encapsulation thus failing our goal to avoid a premature bias towards
strictness nor flexibility. This is where approaches like open modules [2] and XPI
[8] try to help, by making join points parts of the explicit module interface. We will
discuss these approaches as we go through the four principles.
In order to understand the mechanisms for decapsulation in OT/J, it suffices
to consider three kinds of bindings called playedBy, callin and callout. A playedBy declaration links a role class to its player (the "base class"). This declaration entitles
the role to establish bindings at the level of methods and fields. In OT/J, join point
decapsulation is given by callin method bindings. Generally, also OT/J puts no
restrictions on join point decapsulation. Only in one specific situation — a replace callin binding to an invisible base method — will the compiler issue a warning, but
only, because within the bound role method a base call (corresponds to proceed in
AspectJ) would cause API decapsulation4, a matter which goes undetected in AspectJ.
Instead of an in-language solution for restricting join point decapsulation we
propose to adopt the concept of confirmed join points [16] as an essential foundation
for supporting the four principles (see the next sub-section).
AspectJ features the keyword privileged, by which an aspect receives permission
for completely unrestricted API decapsulation. For a privileged aspect all
gates are widely opened for accessing arbitrary invisible elements within the entire
system and the language provides no means for declaring a more focused channel of
communication from the aspect to selected elements of the base system. Again, with
this all-or-nothing policy the privileged keyword contradicts the very concept of
gradual encapsulation.
OT/J supports API decapsulation at two levels: (1) a playedBy declaration may
mention a base class which according to the normal rules would be invisible ("base
class decapsulation"); (2) a callout method binding may refer to an invisible base
method (or field) thus making it accessible as a member of the role using implicit
forwarding5. By default the compiler reports a warning for any API decapsulation.
In strong contrast to AspectJ's privileged keyword, API decapsulation in OT/J
is bounded in two ways: (1) A role class has privileged access only to its associated
instance of the declared base class and only to those methods bound by callout. (2)
Any element made accessible using API decapsulation can only be accessed along
the specific channel of playedBy and callout, i.e., any direct access within the body
of any method must still adhere to the normal rules of visibility.
Summarizing the di erent take at API decapsulation, AspectJ has a single switch
by which any statement within a privileged aspect can access any element of the
base system, whereas OT/J upholds the principle that only declared channels can
be used for communication. PlayedBy and callout only add new means for actually
declaring such channels.
For the full flexibility of decapsulation, it is important that also elements of an
aspect can be accessed in much the same way as regular classes, objects, methods etc.
In OT/J this is given by treating teams and roles as mostly normal classes/objects
and by avoiding the unfortunate invention of "advice", which is not amenable to
overriding and only supports very restricted forms of interception via aspects-ofaspects.
As a result, an aspect in OT/J can equally be the subject or the object in
decapsulation.

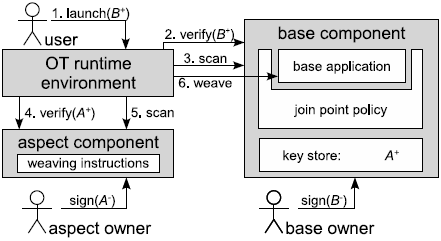

Figure 1: Security architecture for the join point access controller
Checking Join Point Confirmations
Given that OT/J supports both encapsulation and decapsulation, we needed a third,
unbiased element that controls where and when encapsulation is enforced, or decapsulation
admitted. For this purpose we adopted and extended the concept of confirmed join points. Widiker [19] developed a Join Point Access Controller (JPAC)
for OT/J that monitors whether all occurrences of decapsulation have been confirmed by the base owner. In contrast to the annotation-based style of Ossher's
original proposal [16], the JPAC uses a separate join point policy file per base component,
containing confirmations (and denials) for join points of the associated base
component. This way, the join point policy can be changed without touching the
code of the base component; the component only has to be re-packaged with a new
policy file, thus lowering the burden on configuration management.
In contrast to [16] and despite its name given in [19], the join point policy not
only addresses join point decapsulation but also API decapsulation.
The JPAC is implemented using the security architecture depicted in Fig. 1. The
right hand side of this figure symbolizes that the actual base application is shielded
by the join point policy that controls all requested decapsulation. For securing
the base component against tampering with the join point policy the component
is signed using the base owner's private key (B-ô€€€). Also the aspect component is
signed by its owner's private key (A-ô€€€ô€€€), in order to assert this owner's identity. The
Object Teams Runtime Environment (OTRE), which hosts the JPAC, now checks
consistency of the composed system using the following steps:
- The JPAC receives the public key of the base owner (B+) as an argument
passed by the user, whereby the user specifies who he assumes has provided
the base application.
- The base component is verified using the given key (B+) against the component's
signature.
- Upon success, the base component is scanned for its join point policy. As
a result of this scan, the JPAC receives lists of join point confirmations per
aspect component. Each list is annotated with the public key (A+) of the
accepted aspect owner.
- The JPAC now verifies the aspect component using this key (A+).
- If the aspect component could be verified successfully it is then scanned for
weaving instructions regarding the base component6.
- The OTRE finally performs the actual weaving, but only as permitted by the
specified join point policy, which has been scanned in step 3.
The security architecture ensures the following guarantees:
- The base component and its contained join point policy are original versions
as signed by the base owner.
- If the join point policy mentions any specific aspect owner, the aspect component
must be an original version as signed by the aspect owner, which must
be provably the same owner as mentioned in the join point policy.
- Any decapsulation on behalf of a given aspect component must be confirmed
by the base owner for the corresponding aspect owner.
These guarantees are the pre-requisite for any blame assignment in the presence of
decapsulation. In particular, if a composed system fails any of the security checks,
all liabilities of the base and aspect owner may be considered as void. More details
about the JPAC will be discussed as we go.
Principles
We will now discuss how OT/J's technologies for encapsulation and decapsulation
plus the join point access controller fit under the principles of gradual encapsulation.
Analyzability When analyzing decapsulation in a given OT/J program, the central
elements to look for are all the playedBy declarations in the system. Only a playedBy declaration may apply base class decapsulation and only under the umbrella
of an existing playedBy declaration, callin and callout method bindings can
cause join point decapsulation and API decapsulation, respectively. In other words,
playedBy declarations plus callin and callout method bindings are all that needs to
be analyzed in order to find out about the state of a airs regarding decapsulation
in a given software.
This assumes that any decapsulation corresponds with a weaving instruction. While this is
obvious for join point decapsulation, also API decapsulation requires some weaving/transformation
of the byte code, because otherwise the JVM's byte code verifier would not tolerate decapsulation. Also the design of the OT/Equinox technology [10] puts special emphasis on
raising visibility of decapsulation. In OT/Equinox the top-level declaration to consider
is a so-called aspectBinding which is declared between a team and a base
bundle. Only within the scope defined by an aspectBinding can roles (contained
in the given team) be played by base classes (contained in the given base bundle).
Within the team, all designated base classes must be imported with the modifier
base, to ensure that these classes are only mentioned in right-hand side positions
of playedBy, callin and callout. This avoids that a decapsulated name escapes the
control of these three kinds of bindings. Because the aspectBinding declaration is
part of the top-level application architecture, it is easy to zoom in and out the architecture
and at each level make precise statements about the extent of decapsulation.
Negotiation In OT/J negotiation regarding decapsulation follows the concept of
confirmed join points. The central artifact here is the join point policy mentioned
above. In this approach, an aspect developer creates a join point policy file specifying
the locations in base components where aspects (wish to) apply decapsulation. This request policy is sent to the base owner. When the base owner confirms the requested
join points, he or she creates a new package (jar) of the base component, which now
contains the confirmed policy. This package is signed by the base owner. If join
points are confirmed for a single aspect owner, the join point policy refers to that
aspect owner by his public key to ensure that only the approved aspects can utilize
the confirmed join points, thus ruling out any attempts to piggyback on a foreign
join point confirmation.
This communication could possibly go back and forth several times until a join
point policy has been found to which both sides can agree. The relevant steps of
creating and confirming a join point policy are aided by a small interactive tool (in
[19] called the "packaging tool", as it also helps to create the final signed packaging).
One might want to compare our join point policy to the pointcut interfaces in
the open modules approach [2] or XPI [8]. Firstly, both approaches completely lack
any support for controlling API decapsulation. Secondly, they are both still confined to the perspective of the core software development, rather than admitting the
importance of organizational issues. This perspective manifests in the concept of
making pointcut interfaces explicit within the software. In our approach a join point
policy is a separate artifact living in a separate dimension of development. Aspect
owners can simply ignore this dimension while prototyping their aspects, rather than
being forced to program against a pointcut interface of some kind. Cirumstances
permitting, a preliminary join point policy can certainly help to direct the development
towards a design where the final negotiation should be really easy, because the
base owner's interests have already been considered during aspect development. But
in our approach technology imposes no limitations on what happens when. Similarly,
when a base owner wants to ship the result of negotiation, he or she need not
touch any source code, nor re-compile/build the component. Re-packaging existing
binaries with a new policy is all that is needed. From this we conclude that both mentioned approaches require significantly more
(and earlier) involvement from the base owner, who in the confirmed join point
approach only has to react to (and negotiate about) specific join point requests
by the aspect owner, with no impact on the base implementation. This di erence
shouldn't be taken lightly, because in real world settings all should be done to
disburden the base owner, who naturally has a lesser interest in any aspect bindings
as compared to the aspect owner or even the user.
Enforcement A basic level of enforcement is given by the compiler: If, e.g., a
project decides to not accept API decapsulation at all, a single switch in the compiler's
configuration will turn all diagnostics concerning API decapsulation into errors,
thus making violating source code uncompilable. At the default level, any
decapsulation is reported as warnings. Here the developer has the option to either
live with the warning or - if the compiler output should be tidied up - to add @SuppressWarnings annotations to the incriminated binding. Either way, the fact
of decapsulation is visible, either as output from the tool or as annotations in the
source code.
For more fine-grained control of decapsulation it is the join point access controller
(JPAC) [19] which connects the social protocol of negotiation to a security protocol
for enforcing the results of negotiation. The JPAC enforces that an application
adheres at run-time to the policies defined in the negotiation phase. The signed
base package including the policy file from the negotiation phase is installed at the
user's site. As described above, the weaver checks (a) that the base and aspect
components are correctly signed by their respective owners to ensure that neither
the code nor the join point policy have been tampered with and (b) that the aspects
weave into base components only at confirmed join points.
Some levels of tools support exist for creating and modifying policy files and for
running applications at various levels of protection, like "development" or "secure".
Migration Ideally, migration could be seen as moving from one confirmed state
to another confirmed state (with more or less decapsulation — with equal or more
functionality). However, in practical development it is important to also support
a gray area, where confirmation is not (yet) given but functionality can already be
integrated and tested, perhaps already shipped to courageous users. At the language level this corresponds to a state where an OT/J program is still
allowed to produce compiler warnings regarding unconfirmed decapsulation.
The JPAC can be configured to run, e.g., in "development mode" where decapsulation
is allowed for all join points that are not explicitly denied. Before sending
a request policy to the base owner, an aspect developer should run the JPAC in
"request test mode", to find out, whether the request policy is sufficient. This mode
isn't strictly necessary, because the required set of join points can be calculated
statically, but it may help to further the confidence in a given architecture even
before join points are actually confirmed.
These considerations should make clear that gradual encapsulation provides better
support for "opportunistic" software reuse and adaptation, than the mentioned
approaches of re-establishing encapsulation in the presence of aspects [2, 8]. The
safety achievable by these approaches can equally be established if a phase of opportunistic
exploration is followed by a successful phase of negotiations producing
an agreed and enforced join point policy. Note, that the base owner is free to put
any knowledge about potential pointcuts into his module. So in exposing specific
events of his module he may actually follow the proposed method of either mentioned
approach. But in our case this is an option among others, not a requirement.
We are convinced that open modules and XPI are interesting points in the field
between strictly encapsulated, hierarchical structures at the one extreme and fully
unrestricted capabilities of - say - a privileged aspect in AspectJ at the other end
of the spectrum. But both approaches are locked to a specific compromise, with
all its advantages regarding join point decapsulation and its ignorance towards API
decapsulation. The problem we see with open modules as well as XPI is their lacking
support for dynamic project situations, where rules may need to be changed while
the show is running. The problem is that both approaches postulate new sets of
rules which are then carved in stone with no provision for exceptions7. As a result
from this attitude these approaches don't provide suitable paths for migration.
On the practical side we have experience in migrating components that have
been black boxes before, towards a more flexible integration. The Object Teams
Development Tooling (OTDT) itself uses the OT/Equinox technology to adapt existing
Eclipse plug-ins like JDT and PDE [10]. Moving from encapsulation towards
decapsulation is directly supported by the technology.
During this development and before the OT/Equinox technology was ready we
also had phases of copy-and-paste reuse, simply because we needed to make adaptations
that were not possible by normal means. Expectedly, this copy-and-paste reuse
was immediately successful but in the long run caused significant problems during
maintenance. In this situation we migrated parts of the system from copy-and-paste
to using OT/Equinox aspects. The copy-and-paste solution, which had adhered to
the letter of encapsulation could do so only by actually abandoning one encapsulation
boundary: due to inevitable ripple e ects we had to adopt large parts of the
base code, with no easy way for merging with new upstream versions. By migrating
to an OT/Equinox solution we could re-establish the encapsulation boundary with
only a narrow channel added by decapsulation.
During two cycles of migrating to a new version of Eclipse, this new architecture
has proven much more robust and amenable to parallel evolution of base and aspect.
This indicates that a narrow interface using decapsulation may in some cases actually
produce the most robust architecture possible under the given organizational
constraints.
In other cases OT/Equinox aspects have been used to prototype changes that
later have been adopted by the Eclipse developers. This direction benefits from
several properties of OT/J: Analyzability provides the means for isolating aspectinduced
changes in order to refactor the changes to using only object-oriented mechanisms.
Also, the similarity between the role-base relationship and regular inheritance
helps to migrate some role-based implementations to inheritance-based implementation.
This, of course, applies to only a subset of OT/J programs.
Evaluating migration based on negotiated join point policies remains a task for
future research, were collaboration with external partners is sought.
6 CONCLUDING DISCUSSION
Costs vs. benefits Introducing join point policies as additional artifacts to be
maintained raises the question how this scales for large projects involving many parties
with even more developers, and evolving over time. For a base owner, confirming
a join point has a similar impact as publishing an API: both acts impose restrictions
on future evolution. A significant advantage of a join point policy is the fact, that
a specific client (aspect owner) can be named, so that re-negotiating certain join
points becomes feasible, which is not the case for globally published API.
In order to carefully compare di erent options it is necessary to be explicit about
the alternatives. In many cases disallowing any decapsulation would either mean
to adjust the requirements to the provided functionality of existing software assets, or to refrain from reusing a specific software asset and building a better fitting one
from scratch. From an economical point of view both these alternatives may not be
acceptable.
If adaptations indeed have to be performed, one could also require the base owner
to add explicit variation points to their software. In Equinox terminology this could
mean to add a new extension point. If a client requests rather few extension points
this might in rare situations even be tractable. A larger number of client-requested
extension points will usually not be realistic, because each additional extension
point (a) pollutes the source code with stu that provides no functionality for the
large majority of uses and (b) may cause runtime overheads that a ect all users of
this software. Compared to equipping the base program with new variation points,
adding an entry to a join point policy requires tremendously less e orts, both initially
and during evolution. This approach incurs no runtime overhead on the normal user.
A final alternative would be to allow uncontrolled adaptations by aspects. As
discussed above this would result in contractually unclear situations, where any
previous liability may become void and users would be left running the composed
software totally at their own risk. In many projects these considerations render such
uses of aspects unacceptable.
We conclude that especially in larger settings involving several parties we see
no alternative to gradual encapsulation that comes close to the benefits of gradual
encapsulation without incurring significant new problems. It remains to be seen how the burdens of negotiation and maintenance will be split between stakeholders,
which may likely include new kinds of payments for new kinds of services.
Work on encapsulation Obviously, literature about encapsulation is abundant
and impossible to discuss here in full. Many publications have proposed individual
points in the design space. It seems that join point decapsulation can only be
discussed in the context of aspect-oriented programming, which, however, is not fully
true, because any mechanism for implicit invocation may produce similar situations.
Surprisingly, aspect-oriented literature has hardly produced any discussion about
API decapsulation.
The OCaml module system [14] could be seen as an existing example of API
decapsulation. In OCaml signatures (interfaces) can be bound to structures (the
implementation) after the fact, thus exposing elements of a structure just as needed.
At a closer look, this is better described as optional "after-the-fact encapsulation",
because binding a signature can only hide existing members and never expose previously
hidden ones. It is not clear how this would scale up in a commercial setting
for enforcing encapsulation in a system composed from third-party modules.
The Eclipse community has also identified a need for more specific interface definitions
and introduced new annotation types to be checked by supplementary API
tooling [5]. E.g., the @noextend annotation disallows extending a given class across
component boundaries thus restricting the scope of the fragile base-class problem
and ruling out any attempt to bypass visibility restrictions by using inheritance.
Still these annotations cannot grant access to individual client modules, only.
One thing is more important than the individual critique of all those di erent
proposals for supporting encapsulation: each approach we have seen so far only
describes one individual point in the design space, but what is needed is a conceptual
tool for positioning a concrete project on its specific sweet-spot in this design space
and to empower it to move to a di erent point when the forces determining the
project change.
Gradual encapsulation This paper presented a new approach for developing
and evolving modular designs in full awareness of the organizational context and its
constraints. The approach itself can be adopted gradually.
Using just about any aspect language, a given base system can be decapsulated
so that regular aspects apply unrestricted join point decapsulation and privileged
aspects additionally apply unrestricted API decapsulation. If the absence of decapsulation
shall be enforced, one should refrain from using such languages.
With the support of obligatory declarations, as it has been shown for OT/J,
visibility of decapsulation can be significantly improved. At this level, already the
compiler "knows" about the double-edged nature of decapsulation and the capability
of decapsulation can be controlled by corresponding compiler options. Based on the
visibility granted, experienced developers can already utilize most benefits of gradual
encapsulation.
With the additional support of join point policies the technology can be fully
embedded into the organizational context. As a last step, using a join point access
controller the results of negotiation can be technically enforced at runtime. At
this level of adoption, gradual encapsulation indeed implies a new business model
for building software using third-party components. This step might feel like an
undue burden, but we strongly believe that AOP on the long run has no other
choice but making its business model explicit. If AOP indeed involves any kind of
decapsulation, the business model has to account for this.
The technology we have developed for OT/J, including OT/Equinox and the
JPAC, provides end-to-end support for gradual encapsulation. We have practical
experience with the unilateral application of OT/J and OT/Equinox for adapting
Eclipse in unanticipated ways. Here, technology significantly helped to achieve and
maintain a design with comparatively few and narrow channels of decapsulation
implementing a large number of adaptations that without decapsulation would be
close to impossible.
Technology, however, can only provide a platform for gradual encapsulation.
In the end development communities will evolve the actual rules for negotiating
interfaces to their needs, but we are convinced that new rules are indeed needed and
that gradual encapsulation has the potential for supporting new kinds of software
reuse and cross-organizational cooperation among developers. Footnotes
1 Unlike [13] we still think that "discouraging" certain uses of a language could be a useful
means for guiding developers towards good designs, such that overriding a particular compiler
warning, e.g., should not be taken too lightly, but require a conscious decision.
2 Note that this statement also applies to ordinary API usage: the understanding of any module connection benefits from the mentioned analyses.
3 Conventional uses of the base component which adhere to all rules of encapsulation or not considered here, as they cause no conflict.
4 This can be interpreted as: Every replace callin binding implicitly includes an opposite callout binding, binding the base call to the appropriate base method (see "callout" below).
5 Similar considerations apply to the implicit callout bindings for base calls mentioned above.
6 This assumes that any decapsulation corresponds with a weaving instruction. While this is
obvious for join point decapsulation, also API decapsulation requires some weaving/transformation
of the byte code, because otherwise the JVM's byte code verifier would not tolerate decapsulation.
7 By contrast, our approach contains a hint of self-irony, whereby it questions its own rules. One might speculate, that such self-irony is a great enabler of learning. In this light we actually favor to see our approach as the beginning of something, rather than a wrap-up of previous research.
REFERENCES
[1] J. Aldrich, C. Chambers, and D. Notkin. Archjava: Connecting software architecture
to implementation. In Proc. of ICSE 2002. ACM, May 2002.
[2] Jonathan Aldrich. Open modules: Reconciling extensibility and information
hiding. In Proc. of the SPLAT workshop at AOSD'04, March 2004.
[3] C. Clifton and G. T. Leavens. Observers and assistants: A proposal for modular
aspect-oriented reasoning. In Proc. of the FOAL workshop at AOSD'02,
Enschede, The Netherlands, March 2002.
[4] D. S. Dantas and D. Walker. Harmless advice. In POPL '06: Conference record
of the 33rd ACM SIGPLAN-SIGACT symposium on Principles of programming
languages, pages 383-396, New York, NY, USA, 2006. ACM.
[5] Eclipse API tools. Homepage: http://www.eclipse.org/pde/pde-api-tools,
Description: http://wiki.eclipse.org/PDE/API_Tools.
[6] Erik Ernst. Family polymorphism. In Proc. of ECOOP'01, number 2072 in
LNCS, pages 303-326. Springer Verlag, 2001.
[7] R. E. Filman and D. P. Friedman. Aspect-oriented programming is quantifi-
cation and obliviousness. In Proc. of the Workshop on Advanced Separation of
Concerns at OOPSLA 2000, October 2000.
[8] W. G. Griswold, K. Sullivan, Y. Song, M. Shonle, N. Tewari, Y. Cai, and
H. Rajan. Modular software design with crosscutting interfaces. IEEE Software,
23(1):51-60, 2006.
[9] S. Herrmann, C. Hundt, and M. Mosconi. ObjectTeams/Java Language Definition version 1.0 (OTJLD). Technical Report 2007/03, Technische Universität
Berlin, 2007.
[10] S. Herrmann and M. Mosconi. Integrating Object Teams and OSGi: Joint
e orts for superior modularity. In Journal of Object Technology, 6(9), 2007. http://www.jot.fm/issues/issue_2007_10/paper6/index.html
[11] Stephan Herrmann. Confinement and representation encapsulation in Object
Teams. Technical Report 2004/06, Technical University Berlin, 2004.
[12] Stephan Herrmann. Balancing language concerns - who decides? In Proc. of
the SPLAT workshop at AOSD'08, Bruxelles, Belgium, March 2008.
[13] G.T. Leavens and C. Clifton. Multiple concerns in aspect-oriented language
design: a language engineering approach to balancing benefits, with examples.
In Proc. of the SPLAT workshop at AOSD'07. ACM, 2007.
[14] Xavier Leroy. A modular module system. Journal of Functional Programming,
10(3):269-303, 2000.
[15] ObjectTeams/Java web page. http://trac.ObjectTeams.org/ot/wiki/OTJ.[16] Harold Ossher. Confirmed join points. In Proc. of the SPLAT workshop at
AOSD'06, Bonn, Germany, March 2006.
[17] J. Siek and W. Taha. Gradual typing for objects. In Erik Ernst, editor, Proc.
ECOOP 2007, volume 4609 of LNCS, pages 2-27. Springer, 2007.
[18] K. Wallnau, S. Hissam, and R. Seacord. Building Systems from Commercial
Components. SEI Series in Software Engineering. Addison-Wesley, 2001.
[19] Jürgen Widiker. Policy-basierte Zugriffskontrolle für Joinpoints in der aspektorientierten
Sprache ObjectTeams/Java. Diploma thesis (in German), Technische
Universität Berlin, 2007. About the author
|
|
Stephan Herrmann received his Ph.D. at Technische Universität
Berlin in 2002 for his work on applying new techniques for separation
of concerns to the development of a multi-view software engineering
environment. Since then his focus is on developing the language
ObjectTeams/Java and its tools. He has taught ObjectTeams/Java
both at university and in tutorials at international conferences.
|
Stephan Herrmann: "Gradual Encapsulation", in Journal of Object Technology, vol. 7, no. 9, Special Issue: SPLAT, December 2008, pp.47-68http://www.jot.fm/issues/issue_2008_12/article3/
|
