Qualifying Types with Bracket Methods in
Timor
J. Leslie Keedy, Klaus
Espenlaub, Christian Heinlein and Gisela
Menger, University of Ulm, Germany
|
 |
REFEREED
ARTICLE

PDF Version |
Abstract
A new kind of type is described whose objects ("qualifiers")
have bracket methods which can modify the run-time behaviour of other
objects ("targets"). Bracket methods can qualify either specific
methods of a target or can separately qualify their reader and writer
methods, thus allowing general qualifiers to be developed for standard
activities such as synchronisation, monitoring and protection. Qualifiers
are associated with a target when it is created, in the form of a qualifier
list. Individual qualifiers can be dynamically added to and removed
from the list even while the target object is active.
1 INTRODUCTION
Software often involves the programming of "aspects" which
are not only orthogonal to each other, but which sometimes have a quite
general character and a wide area of application (e.g. synchronisation,
monitoring). As proponents of aspect oriented programming have emphasised
[13], it is not only important to be able separately to program such
aspects, but also to have mechanisms ("aspect weavers") which
allow the aspects to be woven together into the compound units actually
needed for application systems.
The present authors consider that such
a weaving mechanism can best be provided as a construct within (new)
programming languages. In order
to handle at least some of the aspects of software design which can
arise, we present in this paper a novel programming language feature,
which we call qualifying types. These allow software units to be defined
which can qualify the methods of other software units in a general
way, using bracket methods in their implementations. They are useful
for programming a wide variety of general purpose properties, e.g.
synchronisation, monitoring, logging, protection and transaction control.
Preliminary versions of this idea have been presented in [7, 8] and
the technique has been illustrated with respect to synchronisation
in [11].
In the present paper we describe how qualifying types are integrated
into Timor1, a programming language which is currently being developed
at the University of Ulm in Germany. Section 2 briefly outlines the
basic concepts of Timor which are relevant for an understanding of
the paper. Section 3 explains the basic idea of qualifying types and
section 4 describes how they are defined and implemented using bracket
methods. Section 5 describes how qualifying objects (qualifiers) are
associated with objects of the types which they qualify (targets) and
section 6 briefly addresses some flow of control issues. Section 7
describes when bracket methods are applied. Section 8 briefly considers
issues relating to type compatibility and section 9 compares the technique
with subtyping/subclassing. The paper concludes with a discussion of
related work in section 10 and some concluding remarks in section 12.
2 A QUICK TOUR OF RELEVANT TIMOR CONCEPTS
Timor has been designed primarily
as a language for supporting the development of software components.
Wherever feasible, Java and C++
have been used as its basic models, but it is structurally a quite
different language. One of its aims is to support a components industry
which develops general purpose software for re-use in many different
application systems. This aim has fundamentally influenced the main
features of the language.
Timor has abandoned the traditional OO class
construct by decoupling interfaces and their implementations. Components
designed at an abstract
level can often have quite different implementations (e.g. a type Queue
can be implemented as a linked list, as an array, etc.) and a component
designer may well wish to produce and distribute several different
implementations for the same type. Consequently there is a rigorous
distinction between an interface and its potentially multiple implementations.
Interfaces and implementations are formulated according to the information
hiding principle [21]. An interface is either a type (which
may be concrete or abstract) or a view.
Concrete types are units from which
multiple instances can be constructed. Constructors, known in Timor
as makers, have individual names and are
listed in a section introduced by the keyword maker.
A maker returns an instance of its own type. It may have parameters
of its own type
(e.g. to construct a new instance by concatenating or merging values
from existing instances). If a maker is not explicitly defined in a
concrete type the compiler automatically adds a parameterless maker
with the name init.
The instances of a type are manipulated by methods
defined in an instance section. Instance
methods must be designated by the keyword op (i.e.
operations which can change state variables of the instance) or the
keyword enq (enquiries which can read but
not change state variables).
Abstract variables can be defined in the instance section.
These have the appearance of value or reference2 variables
but are formally defined
as pairs of methods (an op for setting and
an enq for getting the value
of the "field") [11].
It is well known that binary methods are
problematic [4]. Timor type definitions can have a method category
binary, which defines binary
type methods, i.e. methods that access multiple instances
of the type (e.g. to compare them). A compile time error occurs if
a programmer
attempts to define an instance method which has a parameter (value
or reference) or local variable of its own type or a supertype thereof.
As we shall see later, public binary instance methods would create
substantial difficulties for a clean design of qualifying types.
Abstract
types are intended to be abstractions of "complete" types
(e.g. a collection as an abstraction for a set, a bag, a list, etc.)
and although they do not have real makers, they can predefine makers
and binary methods which are inherited as real methods in concrete
types derived from them [10].
A view is an interface which defines a
related set of instance methods and/or abstract variables that can
usefully be incorporated into different
types. It is intended to encourage the idea of "programming to
interfaces". A view can have implementations, but it cannot define
makers or binary methods.
In Timor a type can be derived from other
types by extension and/or inclusion. The resulting
units are known as derived types and those
from which they are derived are their base types. The keyword extends
defines a subtyping relationship and is intended to be used to signal
behavioural subtyping (in the sense of Liskov and Wing [17]),
though this cannot be checked by a compiler. Instances of a type derived
by
extension can be assigned to variables of the supertype. The keyword
includes allows an interface to be inherited
without implying a subtyping relationship. In this case the derived
unit cannot be used polymorphically
as if it were an instance of the base unit [9]. Timor provides several
techniques for supporting multiple type inheritance, addressing different
kinds of problems to be modelled. From the viewpoint of the present
paper these need not be described further, since the end effect of
each technique is that a derived type is defined in terms of instance
methods, binary methods and makers, as above. Instance methods are
what determines how a type can be qualified, as we shall shortly see.
Subtyping
is decoupled from code inheritance. An interface (type or view) can
have multiple implementations, which must be behaviourally
equivalent, in the sense that each fulfils the interface's specification.
An implementation, whether for a base or a derived type, can be a completely
new implementation, i.e. code is not automatically inherited. But it
can optionally re-use the code of implementations of other related
and/or unrelated interfaces, by defining re-use variables in the
state section of an implementation. These are variables defined either
in terms of interfaces (without specifying a particular implementation)
or of individual implementations, and are demarcated by a hat symbol.
The compiler compares those public methods of the type being implemented
which do not appear in the instance section of the implementation with
the public methods of the re-use variables and when a match occurs
this is treated as the implementation for that method. When a re-use
variable is defined in terms of an interface any of its implementations
can be re-used, but the re-using implementation can access this only
via its public members. When individual implementations
are nominated the re-using implementation can gain access to the internal
state of the re-used implementations (and therefore can – but
need not – simulate conventional subclassing). An earlier version
of this mechanism is described in [9]. Again, the important
point here is
that an implementation consists of instance methods, binary methods
and makers, and these determine how a type can be qualified.
Types can
be instantiated either as separate objects or as values which can be
regarded as components of an object. Objects are always accessed
via references. An object can contain references to other objects of
the same or different types.
3 QUALIFYING TYPES: AN OVERVIEW
A qualifying type is a type whose
objects can qualify the behaviour of objects of other types. In the
normal OO paradigm an object of one
type (the client) can invoke methods of an object of any other type
(the target), as is trivially illustrated in Figure 1.

Figure 1: A Normal Method Invocation
An object of a qualifying type "interferes with" this in
that it "catches" the invocation and executes the code of
the appropriate bracket method (see Figure 2).

Figure 2: A Qualifying Type with a Bracket Method
At this point the bracket method can do one of three things.
First,
the bracket method can augment the code of the target method by adding
a prelude and/or a postlude. On completing the prelude it
executes a body statement to indicate the point where the target method
is to be invoked (cf. Figure 3). This technique can be used e.g. to
add synchronising or logging operations in the prelude and postlude.

Figure 3: An Augmenting Bracket Method
Because body is a normal statement, it can
be executed conditionally. Hence a bracket method might allow the target
object to be invoked
only if some test is passed (cf. Figure 4). This allows qualifying
types to implement protection mechanisms. Thus the state of the qualifier
might include an access control list used to carry out the test, or
the test may involve demanding a password from the user before allowing
access to the target object.

Figure 4: A Testing Bracket Method
In the simplest case the target method
need not be invoked at all. Control is returned to the client on completion
of the execution of
the bracket method, without any warning as such that this has occurred
(see Figure 5). This might for example be used as a disinformation
technique, e.g. to fool a hacker into thinking that he can access some
object when in fact its owner has substituted a decoy. Or it might
be used to test client software before a working target is available.

Figure 5: A Replacing Bracket Method
As
the above examples make clear, the qualifying object is a normal object
of its own type and it has its own state and methods, which
are quite separate from the states and methods of the client and target
objects. Its only special property is that its implementation includes
bracket methods, which can execute body statements. These, like the
other methods of the qualifying object, have access to the state of
the qualifying object.
But they do not have access to the state of
the client object or target object (unless they possess a reference
which provides such access).
4 DEFINING AND IMPLEMENTING QUALIFYING
TYPES
A qualifying type is characterised by
the appearance of one or more qualifies clauses in its definition.
Each of these nominates
an interface which can be qualified and provides a list of bracket
methods which can perform this qualification. Like other interfaces,
these can have multiple implementations.
Qualifying Objects of Any Type
Bracket methods which can qualify objects
of any type are introduced by the qualifying clause qualifies
any.
In this case the type can be
defined either to have a single bracket method which qualifies all
the methods of target objects, or up to two bracket methods can be
listed, one which can qualify op methods and one which can qualify
enq methods (see section 2). Here is a simple example of a type definition
defined to provide mutual exclusion synchronisation for target objects:

Although the bracket method declaration in this examples looks special,
it is
like a "normal" instance method declaration except that it uses special
syntax. The modifier in the first position is the normal op/enq modifier, indicating
whether the bracket method itself is an operation or an enquiry with respect
to its own state. In this example the bracket method is designated as an op,
because it changes its state (e.g. by modifying a semaphore). The requirement
to designate bracket methods as op or enq methods is important, because it allows
qualifiers themselves to be qualified.
The keyword bracket replaces the usual
return type, indicating that the return value has the type of whatever method
is being bracketed. The method "name" all signifies that the method is applied to all instance (and bracket) methods
of the target object. Finally a parameter list containing the ellipsis character
is used to indicate that any parameters defined for a target method can be
accepted,
and that these are not accessed in the bracket method's implementation.

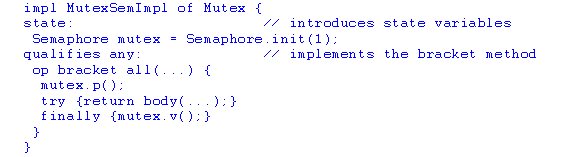

The
type Mutex can be implemented using semaphores as follows:

The body statement indicates the point in
the code at which the method of the target object invoked by the client
is actually called. A body statement
is a "normal" statement,
except that it can only appear in an implementation of a bracket method.
The use of the ellipsis in the argument list indicates that the parameters
which
were originally provided are passed on without change. A return statement
is used, indicating that the value which body returns
(which may be void)
is in turn passed back.
A qualifying type for providing reader-writer
synchronisation can distinguish
between op instance methods (i.e. writer methods) and enq instance
methods (i.e. reader methods), without requiring the designer of the
qualifying
type to know
details of the individual methods of the objects to be qualified. Here
is a definition:

and the reader priority implementation of Courtois, Heymans and Parnas
[5]:

In this example the method "names" op and enq signify
which bracket method is applied to operations and which to enquiries
of the
target object.
Both Mutex and RWsync are
unusual in that they have no instance methods of their own. Most qualifying
types need instance methods independently
of their
bracket
methods. These typically provide information which governs the decisions
taken in bracket methods and/or allow information to be recovered which
has been
acquired by bracket methods. Sometimes the instance methods form a
consistent type without
the bracket methods, in which case it can be more modular to define
a separate type and then extend this to a type with bracket methods
as
in the following
example of an access control list (ACL) [16]. The ACL is held in the
state variables and is maintained via its instance methods. Subjects
are threads
which have unique
integer identifiers.

Using the normal subtyping technique we can extend the type ACL to
become a qualifying type which checks an invoking thread's right to
modify or
read the
target object:

This could be implemented, re-using any implementation of ACL, as follows:

The keyword thisThread is a built in expression which identifies
the current thread.
Bracket methods for qualifying all, op or enq are
known as standard bracket methods, because they qualify
non-specific methods of the target interface.
Standard bracket
methods cannot access parameters nor the values returned by the target
object. Exceptions thrown by a target method
are (implicitly)
passed on unchanged. Standard bracket methods can throw
exceptions, as the above example illustrates.
Qualifying
Specific Views and Types
Bracket methods designed to qualify particular
instance methods are known as specific bracket methods. These can be
defined to qualify
the instance
methods
of particular types, and they are often appropriate for qualifying
objects of more than one type which contain the same view interface.
Consider,
for example,
a view Openable, which might be incorporated into many "file" types:

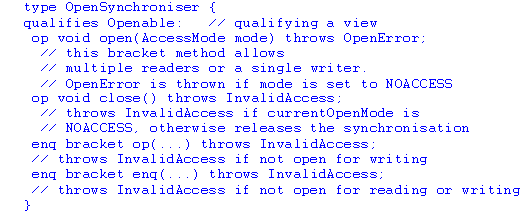

A type designed to synchronise access to individual objects containing
this view might be defined as follows:

The advantage of qualifying a view is that the same qualifying type
can be used to bracket objects of different types (here different kinds
of "files")
which contain that view.
A specific bracket method declaration must
match the signature of the method which it is designed to qualify,
except that, as with standard
bracket
methods, the op/enq qualifier
reflects the behaviour of the bracket method with respect
to its own state data. It can be defined to throw some or all of the
exceptions of the target method, and it can add new
exceptions.
An implementation of a specific
bracket method
can access the parameters intended for the target object and return
a different value from that returned by the target object.
In an implementation
of a specific bracket method the body statement can be used either
with an ellipsis as its parameters (indicating that
the
parameters are
passed unchanged to the target method) or parameter values may be explicitly
supplied. Similarly, a different return value can be supplied from
that which body returns. If the method is defined as void, the return
statement need not be used.
The example illustrates that standard bracket methods can be
defined in a qualifies clause for a specific interface. These are not
to be confused with the standard bracket methods defined to qualify any. When appearing in a clause
for qualifying a specific view (or type), they are applied to all matching
instance methods of the target object (including those not defined in the view) except
those for which specific bracket methods have been defined.
5 USING QUALIFYING TYPES
Timor types can be instantiated either as dynamic objects (using
the operator new) or as variables within
objects (without new). Only
dynamic objects can be qualified using the technique described in this
section, which shows how qualifying objects can be associated with
target objects. A later paper will describe how qualifiers can be statically
associated with instances of other types.
Instantiating Qualifying and Qualified Objects
A qualifier is
instantiated like any other object, as follows:
ACLprotecting* protected
= new ACLprotecting.init(100);
In this example protected is a reference
to a new ACLprotecting object. At this or any later point in the program's
execution the instance methods of this object
can be invoked to add and remove ACL entries, etc., e.g.
protected.addThread(20,
READ);
This qualifier might be used to protect access to an object of
type Thing (which we need not explicitly
define, because objects of any type can be qualified
by ACLprotecting objects). An association
with the qualifier can be established when the qualified object is
instantiated, e.g.
Thing* t1 = new {protected} Thing.init();
The same qualifier can be
used to qualify more than one object, e.g.
Thing* t2 = new {protected}
Thing.init();
Furthermore an object can have multiple qualifiers. Thus
after instantiating a further qualifier using a statement such as
RWsync*
synchronised = new RWsync.init();
it would be possible to define another
Thing qualified as
Thing* t3 = new {protected, synchronised} Thing.init();
The Qualifier List
The expression {protected, synchronised} is a normal Timor list
literal, here with two entries. In the object creation context it refers
to a qualifier list, which has the type List<:Qualifier*:>
(specialising the generic type List as a list of Qualifier
references). The type Qualifier is automatically a supertype
of all qualifying types.
The effect is that all method invocations on
this Thing object (whether via t3 or
via some other reference) are qualified via the ACLprotecting and
then the
RWsync object. When an instance method of
the target is invoked, the qualifiers in its qualifier list are searched
for appropriate bracket methods, and
these are scheduled from left to right as described in section 6. For
example the
ACLprotecting qualifier would permit an attempt
by thread 20 to invoke an enq method on this
Thing object to proceed, and it would then
be synchronised as a reader, while an attempt by the same thread to
invoke an op method
would result in the exception InvalidAccess being
thrown.
The qualifier list for
an object contains copies of references to the qualifiers which apply
to a target. Hence if a new reference value
is subsequently
assigned to a reference variable which has been used to add an entry
to a qualifier
list this does not affect the qualifier list.
Because any List<:Qualifier*:> expression
can appear in an object creation clause, a qualifier list can be explicitly
created as an object
and then
be associated with a target object or objects. For example the creator
of the Thing in the
above example might have used the following alternative code:

Making the qualifier list a
first class object has a number of advantages. For example, the qualifier
list can be directly accessed as a separate
object, with
the effect that qualifiers can be dynamically added to and removed
from it, even after the list has been associated with target objects.
(In
this case
the qualification
of targets is affected.)
A user can prevent other users from changing
the qualifier lists of target objects which he creates simply by choosing
to pass references
for the
targets into their
scopes while not passing them references for their qualifier lists.
Alternatively
a user might choose to protect the qualifier lists by qualifying these
with qualifiers which carry out security checks. This
is another
advantage of making qualifier lists into first class objects, e.g.

Synchronising Targets
with their Qualifier Lists
Care must be taken
when modifying qualifier lists to ensure that such activities are properly
synchronised. This is the responsibility of
the programmer,
but it can easily be achieved using techniques which have already largely
been
described. For this purpose we define a qualifying type ListSync.
This can be viewed as
a special form of reader-writer qualifier which regards all critical
accesses to a qualifier list as writer actions, and all accesses to
its target object(s)
as reader actions. In this way a change to a qualifier list can only
occur when no other changes to the list are in progress and no methods
of the
target objects
are active. On the other hand methods of the target object(s) can be
invoked in an unrestricted manner (e.g. in parallel) provided that
the qualifying
list is not being changed3. To achieve
this the type ListSync can
be defined as
follows:

This example illustrates that even if a specific type (here List<:Qualifier*:>)
is being qualified, the qualifier need not include specific bracket
methods but can simply define general bracket methods.
The example also
illustrates that a qualifying type can contain multiple qualifies clauses.
The rule determining their applicability is that
the most specific
qualification applies. In the present case it means that if an object
of type List<:Qualifier*:> is
qualified the first set of bracket methods applies, whereas any other
type is qualified by bracket methods of the second qualifies clause.
This
qualifier might be used as follows to ensure properly synchronised
access to a qualifier list and its target:

This code takes
advantage of the fact that the same qualifier can qualify multiple
targets and that a qualifier list can itself be qualified
(here even by a qualifier
which is also in its own list)4.
6 FLOW OF CONTROL
The flow of control of bracket methods is complicated
by at least the following issues:
- a body statement
is a "normal" statement which can, for
example, be used in a conditional statement, and it can be invoked
more than once
in a bracket method;
- exceptions can be thrown by the target method
and/or by bracket methods;
- an object can be qualified by more than
one qualifying object;
- bracket methods can themselves be bracketed
by other bracket methods; and
- access to an object may proceed (using
the dot notation) via other objects which are themselves qualified.
The
combined effects of these possibilities leads to a non-trivial flow
of control algorithm, the details of which must be left to a later
paper.
Suffice here to say that the basic algorithm involves dynamically
traversing a tree of objects with the target object at its root and
its child
nodes being those objects in its qualifier list which have a matching
bracket
method for
the target method being invoked. Lower levels of the tree are based
on the same principle, except that the bracket method selected at
the higher
level
is considered
to be the target method and child nodes are those objects in the
qualifying object's qualifier list with a bracket method which matches
this, recursively.
The selected
bracket methods are executed in endorder sequence (activated by the
invocation of a target method or a body statement). 7 APPLICABILITY
OF QUALIFIERS
Bracket methods are applied only to invocations of the
public instance methods of a target object, including the set and get
methods of its
abstract variables [11].
They are not applied to invocations of its private methods, nor to
the invocations of the methods of its internal variables.
When the object dereferencing operator is used in a right side expression
(i.e. when it returns the complete state of an object) this is considered
to be the equivalent of an enq method. An object dereferencing operator
used on the left side of an assignment statement is similarly considered
to be equivalent to an op method. Hence enq or op (or all) bracket
methods associated with qualifiers are applied as appropriate to dereferencing
operations on targets.
If instance or bracket methods of an object invoke public
instance methods of the object itself (whether or not the keyword this is
explicitly used)
these are not subject to qualification, because that could lead to
difficulties such
as creating deadlocks when a synchronisation qualifier is used.
If it were possible to pass a reference for an
object to the object itself which could then be used by the object
to invoke its own public
methods,
this could
also create situations which could easily lead to bracketing problems
such as deadlocks. However, the rule designed to prevent binary instance
methods
(cf.
section 2) also prevents this situation from arising under normal circumstances.
When an abstract
reference of an object is read (e.g. using the dot notation, to reach
another object), this is of course an invocation
of the get
method associated with the object which contains the reference, and
its qualifiers
must be applied
accordingly. For example if the object has a qualifies
any qualifier
then the standard enq bracket method must
be applied (unless a more specific bracket method applies). However
none of the qualifiers associated with the referenced object is applied
at this stage.
8 TYPE COMPATIBILITY AND POLYMORPHISM
The type of a reference to
which a target object can be assigned does not reflect that qualifiers
may be associated with the object. Hence
given
the existence
of a type Thing, the following statements are all valid:

This reflects the decision that the qualifiers associated
with an object do not formally affect the type of the object, i.e.
a qualified object
is always
compatible
with an unqualified object which has the same basic type.
On the other
hand the behaviour of an object can be radically influenced by its
qualifiers. For example it might be synchronised or monitored
or protected. In
the last case the effect is that it may not be called at all, and if
a qualifier is used as a decoy object the client may not be able to
observe that the
behaviour
has changed. In some cases qualifiers may throw exceptions
unexpectedly
(e.g. to indicate access violations), or a qualifier might demand a
password from the user at the terminal, etc. These points clearly indicate
that
behavioural conformity in the sense of [17] can by no means be guaranteed,
though often
the behaviour could be described as "behaviourally conform if
successful" (e.g.
if an ACLprotecting object allows an access
to proceed).
If a qualified
object is assigned to a supertype reference the normal subtyping rules
apply. The methods invocable from the supertype reference
are dynamically
scheduled in the usual way, and the bracket methods are still applied,
of course.
9 BRACKET METHODS VS. SUBCLASSES/SUBTYPES
It is sometimes assumed
that qualifying types can be viewed as an alternative to subclassing/subtyping.
In [12] we discussed the relationship between
these two concepts in more detail, reaching the conclusion that the
latter are
considerably more powerful than normal subtyping/subclassing, for at
least the following
reasons.
- There is no general way of simulating qualifies
any via
subclassing in the standard OO paradigm. Each class qualified in
this way must
be separately subclassed.
- There is no general way of imitating standard
bracket methods for all/op/enq methods.
Each superclass method must be separately programmed
in a subclass
with the code which appears in these brackets, depending whether
it is a reader or
a writer.
Points a) and b) taken together help to explain why it is
impossible, for example, to have user-supplied standard synchronisation
modules
in the
standard OO paradigm.
(There are additional reasons, e.g. concerned with static variables
and methods and with the use of public fields in the OO paradigm, but
these
are not relevant
to the present discussion.)
- Although in many cases the use of specialised
qualifying types can be simulated by subclassing, this is not always
so. The creator of
a new target
object in
Timor can combine different qualifiers in any order which he chooses.
Using subclassing is less modular in that an order has to be statically
determined
for successive
subclasses.
- As we have shown in [12] in an example involving various
orthogonal combinations of bounded buffer synchronisation, subclassing
cannot
always be reasonably
used to simulate qualifying types.
- Qualifying types are more powerful
in that they can provide code which in reasonable circumstances permits
methods declared as final to be "overridden" e.g.
to protect an object.
- The instance methods of a qualifier do not
automatically become methods of the target. This is important in
a case such as ACLprotecting,
where
a protected object should not also include the methods which allow
the ACL
to be modified!
(Passing the object via a supertype variable does not help if the
language allows
downcasts.)
- Subclassing cannot be used to simulate the fact that
a single qualifying object can be used to qualify more than one
object.
- Subclassing cannot be used to define a subclass which modifies
its own behaviour as a superclass, whereas one ACLprotecting object
can
be used
for example to
protect the access to another object which is also an ACLprotecting object.
This list shows that subclassing is not a real alternative to
qualifying types. On the other hand we do not regard it as a replacement
for subtyping,
which
is also supported in Timor. Subtyping in particular is important when
types are
being modelled which can be used polymorphically, e.g. a set or a bag
can be modelled as more specific examples of a general type collection.
In
such cases
we are concerned with variants of the "same" kind of thing.
On the other hand the idea of qualifying types becomes more significant
when
we are
concerned with programming quite different aspects of a problem.
10
COMPARISON WITH OTHER WORK
This paper has described the basic concepts
of qualifying types with bracket methods. The idea is based on earlier
work in our group [7,
8].
The idea that code can be bracketed is by no means new, and dates
back at least to Pascal-Plus [24]. A form of bracketing is possible
in almost
all
object
oriented languages by redefining the methods in a subclass and calling
the original methods
from within the redefined methods via a super construct.
So, for example, a class RWsyncThing can
be defined as a subclass of Thing. But in
languages which
support
only single inheritance, a subtype RWsyncBook of Book must
include all the same additional code as RWsyncThing.
In languages such as Eiffel
[18] with multiple inheritance, a class RWsync can
be defined and inherited by both RWsyncThing and RWsyncBook.
This
means that
the type RWsync is only declared in a single
place. The bracketing must, however, still be achieved via redefinition
in both RWsyncThing and RWsyncBook.
When the inner construct of Beta [15] (cf. body)
appears in a superclass method, the same method in a subclass is bracketed
by the superclass
method's code.
But a Beta superclass RWsync needs to know
which methods occur in its subclass RWsyncThing in
order to bracket them and is therefore of no use in bracketing RWsyncBook.
Mixins
are a generalization of both the super and the inner constructs. The
language CLOS [6] allows mixins as a programming technique without
supporting
them as
a special language construct, but a modification of Modula-3 to support
mixins explicitly has also been proposed [3]. A mixin is a class-like
modifier which
can operate on a class to produce a subclass in a manner similar to
that of qualifying types. So, for example, a mixin RWsync can be combined
with a class
Thing to
create a new class RWsyncThing. Bracketing can be achieved by using
the
'call-next-method' statement (or super in the Modula-3 proposal) in
the code of the mixin methods.
As with Beta, however, the names of the methods to be bracketed must
be known in the mixin. This again prevents it from being used as a
general component.
In [22] encapsulators are described as a novel paradigm
for Smalltalk-80 programming. The aim is to define general encapsulating
objects (such
as a monitor) which
can provide pre- and post-actions when a method of the encapsulated
object is invoked. This is similar to bracket methods but is based
on the assumption
that
the encapsulator can trap any message it receives at run-time and pass
this on to the encapsulated object. This is feasible only for a dynamically
typed
system.
The mechanism illustrated in this paper can be seen as a way of achieving
the same result in a statically type-safe way via a limited form of
multiple inheritance.
The applications of encapsulators are also more limited than bracket
methods as they cannot distinguish between reader and writer methods.
Specialised
qualifying types can be simulated using Java proxies, but the programming
is considerably more cumbersome, and methods to be
bracketed cannot be isolated
from those not requiring brackets. Thus all method calls to a target
object
must be redirected to the proxy. But even for methods which require
bracketing the
approach is inefficient: the proxy object and an associated handler
must both be invoked, and reflection must be used to establish which
target
methods have
been invoked. Multiple qualification of a target method is particularly
complicated and inefficient.
Composition filters [2] allow methods of
a class to be explicitly dispatched to internal and external objects.
In addition the message associated
with a method call can be made available via a meta filter to an internal
or
external object,
thus allowing the equivalent of a bracket method to be called. However,
because filters are defined in the "target" class, a dynamic
association of filters with classes is not possible, and all the objects
of a class are
qualified
in the same way.
MetaCombiners support the dynamic addition/removal
of mixin-like adjustments for individual objects [19]. The
effect of specialised qualifying types
can be achieved with specialisation adjustments (which can
invoke super)
on an
individual
object basis. Similarly field acquisition and field overriding [20]
can be used to simulate inheritance of field methods and therefore
in conjunction
with the
keyword field (cf. super)
can simulate the use of body in bracket methods.
In both cases there appears to be no equivalent to general bracket
methods.
The experimental language Piccola [1] is a component composition
language which allows abstractions not well supported by the OO paradigm
(such
as synchronisation)
to be integrated into applications. While it has similar aims, it differs
from the Timor approach, where qualifying types are integrated into
the base language
and therefore need no special composition language.
The AOP language
AspectJ [14] and similar languages (cf. [23]) can achieve many of
the aims of qualifying types, but with a number of
limitations:
- Because Java has no way of distinguishing between op and enq methods, some convention for method names must be used
(e.g. methods beginning
with set are
writers, those with get are readers). Target classes not developed
according to the convention must each be examined individually
and separate aspects
developed.
- Because they operate at the source level an aspect affects
the target class, so that different objects of the same class cannot
be qualified
in different
ways.
- Because aspects are not separately instantiated an aspect "instance" cannot
be flexibly associated with a group of objects rather than a single
object.
- New methods explicitly defined with an aspect ("introduction")
become methods of the qualified objects. Thus methods defined, for
example, to manipulate
an ACL in a protection aspect, become methods of the objects being
protected, so that a protected object includes the methods which
control its protection!
- Because the order of the execution of AspectJ advice
is statically defined in aspects, these must be defined with
a knowledge of each
other, except
in cases where precedence is considered to be irrelevant. In
contrast the execution
order
of Timor bracket methods is easily defined at the time a target
object is created.
- In contrast with AspectJ aspects, general qualifying
types and specialised types based on view interfaces (e.g. Openable)
do not
depend on a knowledge
of (nor the presence at compile time of) each other's source
or bytecode or that of types
which they might qualify.
11 CONCLUDING REMARKS
Qualifying types and their implementations,
as defined in Timor, strongly support the idea that a system can be
built from separately developed,
re-usable components
which need not have an advance knowledge of each other. It is easy
for example to develop qualifying modules which can synchronise, protect
or monitor target
modules in a general way, although the targets may have been developed
in complete isolation from them or may not even exist at the time the
qualifiers are produced.
And because qualifiers are themselves first class objects they can
themselves
easily be qualified by other qualifiers.
Mixing and matching such modules
is easily and flexibly achieved at run-time using object creation expressions
which allow multiple qualifiers
to
be associated with a single target and/or multiple targets to be qualified
by a single
qualifier. This flexibility contrasts with other approaches to weaving
aspects into a
single program, where the qualifying code is in effect cut and pasted
into
existing
types at the source or bytecode level and thus affects the static types
of objects.
Achieving
this level of flexibility in a general way was only possible by defining
a new language with particularly clean structures for type
definitions.
These
include
- replacing public fields by abstract variables that correspond
to instance methods,
- a clear distinction between instance methods
and binary methods (which can only be defined as binary type methods),
- designating each instance method as either an op (writer) or an
enq (reader),
- abandoning Java's idea that all type instantiations are
referenced objects in favour of the concept that a type can be
instantiated either
as a separate
object (which can be referenced from other objects) or as a value
component of some other object,
- abandoning Java's concept of type related
static variables and methods.
It has been impossible in the space available
for this paper to provide a fuller discussion of Timor's structure,
and how it handles features
such as static
variables, which cannot be cleanly integrated with the concept of qualifying
types.
It has similarly also been impossible to describe other features
of qualifying types, e.g. how they can be integrated more statically
with
the type
definitions of their targets (e.g. how to produce a type which is always
synchronised)
and how calls out of a target can be qualified. Lack of space also
prevents us from
providing examples of qualifying types which program aspects that are
conceptually strongly integrated with particular types. These are all
topics which will
be addressed in future papers.
ACKNOWLEDGEMENTS
Special thanks are due to Dr. Mark Evered and Dr.
Axel Schmolitzky for their invaluable contributions to discussions
of Timor and to the
ideas
which have
been taken over from earlier projects. Without their ideas and comments
Timor would not have been possible.
Footnotes
1 see http://www.timor-programming.org
2 References are not directly related to physical addresses. They
are logical references to objects.
3 Further qualifiers can be included in a target's qualifier list
in order to provide appropriate synchronisation for the target itself.
4 If the target is itself a qualifier list this code will not work
quite as intended, as the target (qualifier list) will have its operations
synchronised exclusively,
although a higher degree of parallelism might in principle be achievable. However,
this somewhat pathological case (which does not cause an error) does not merit
a modification of the definition of qualifying types.
REFERENCES
[1] F. Achermann and O. Nierstrasz, "Applications =
Components + Scripts - A Tour of Piccola," in Software Architectures
and Component Technology, M. Aksit, Ed.: Kluwer, 2001, pp. 261-292.
[2]
L. Bergmans and M. Aksit, "Composing Crosscutting Concerns Using
Composition Filters," Communications of the ACM, vol. 44, no.
10, pp. 51-57, 2001.
[3] G. Bracha and W. R. Cook, "Mixin-based
Inheritance," ECOOP/OOPSLA
'90, Ottawa, Canada, 1990, ACM SIGPLAN Notices, vol. 25, no. 10, pp.
303-311.
[4] K. B. Bruce, L. Cardelli, G. Castagna, et al., "On Binary
Methods," Theory
and Practice of Object Systems, vol. 1, no. 3, pp. 221-242, 1995.
[5]
P. J. Courtois, F. Heymans, and D. L. Parnas, "Concurrent Control
with Readers and Writers," Communications of the ACM, vol. 14,
no. 10, pp. 667-668, 1971.
[6] L. G. DeMichiel and R. P. Gabriel, "The
Common Lisp Object System: An Overview," ECOOP '87, Paris, 1987,
Springer-Verlag, LNCS, vol. 276, pp. 151-170.
[7] J. L. Keedy, M. Evered,
A. Schmolitzky, and G. Menger, "Attribute Types
and Bracket Implementations," 25th International Conference
on Technology of Object-Oriented Languages and Systems, Melbourne, 1997,
pp. 325-338.
[8] J. L. Keedy, K. Espenlaub, G. Menger, A. Schmolitzky,
and M. Evered, "Software
Reuse in an Object Oriented Framework: Distinguishing Types from Implementations
and Objects from Attributes," 6th International Conference
on Software Reuse, Vienna, 2000, pp. 420-435.
[9] J. L. Keedy, G. Menger,
and C. Heinlein, "Support for Subtyping and
Code Re-use in Timor," 40th International Conference on Technology
of Object-Oriented Languages and Systems (TOOLS Pacific 2002), Sydney,
Australia,
2002, Conferences
in Research and Practice in Information Technology, vol. 10, pp. 35-43.
[10]
J. L. Keedy, G. Menger, and C. Heinlein, "Inheriting from a Common
Abstract Ancestor in Timor," in Journal of Object Technology,
vol. 1, no. 1, May-June 2002, pp. 81-106. http://www.jot.fm/issues/issue_2002_05/article2.
[11] J. L. Keedy, G. Menger, and C. Heinlein, "Taking Information
Hiding Seriously in an Object Oriented Context," Net.ObjectDays,
Erfurt, Germany, 2003, pp. 51-65.
[12] J. L. Keedy, G. Menger, C. Heinlein,
and F. Henskens, "Qualifying Types
Illustrated by Synchronisation Examples," in Objects, Components,
Architectures, Services and Applications for a Networked World, International
Conference NetObjectDays, NODe 2002, Erfurt, Germany, vol. LNCS
2591, M. Aksit, M. Mezini, and R. Unland, Eds.: Springer, 2003, pp.
330-344.
[13] G. Kiczales, J. Lamping, A.
Mendhekar, C. Maeda, C. Lopes, J.-M. Loingtier, and J. Irwin, "Aspect-Oriented
Programming," ECOOP
'97, 1997, pp. 220-242.
[14] G. Kiczales, E. Hilsdale, J. Hugonin,
M. Kersten, J. Palm, and W. G. Griswold, "An
Overview of AspectJ," ECOOP 2001 - Object-Oriented Programming,
2001, Springer Verlag, LNCS, vol. 2072, pp. 327-353.
[15] B. B. Kristensen,
O. L. Madsen, B. Moller-Pedersen, and K. Nygaard, "The
Beta Programming Language," in Research Directions in Object-Oriented
Programming, MIT Press, 1987, pp. 7-48.
[16] B. W. Lampson, "Protection," Proc.
5th Princeton Symposium on Information Sciences and Systems,
1971
[17]
B. Liskov and J. M. Wing, "A Behavioral Notion of Subtyping," ACM
Transactions on Programming Languages and Systems, vol. 16, no.
6, pp. 1811-1841, 1994.
[18] B. Meyer, Eiffel: The Language. New York.
Prentice-Hall, 1992.
[19] M. Mezini, "Dynamic Object Evolution
without Name Collisions," ECOOP
'97, 1997, Springer Verlag, LNCS, vol. 1241, pp. 190-219.
[20] K. Ostermann
and M. Mezini, "Object-Oriented Composition Untangled," OOPSLA
'01, Tampa, Florida, 2001, ACM SIGPLAN Notices, vol. 36, no.
11, pp. 283-299.
[21] D. L. Parnas, "On the Criteria To Be Used in Decomposing
Systems into Modules," Communications of the ACM, vol.
15, no. 12, pp. 1053-1058, 1972.
[22] G. A. Pascoe, "Encapsulators: A New
Software Paradigm in Smalltalk-80," OOPSLA
'86, 1986, pp. 341-346.
[23] O. Spinczyk, A. Gal, and W. Schröder-Preikschat, "AspectC++:
An Aspect-Oriented Extension to the C++ Programming Language," 40th
International Conference on Technology of Object-Oriented Languages
and Systems (TOOLS
Pacific 2002), Sydney, Australia, 2002, Conferences in Research
and Practice in Information
Technology, vol. 10, pp. 53 - 60.
[24] J. Welsh and D. W. Bustard, "Pascal-Plus
- Another Language for Modular Multiprogramming," Software-Practice
and Experience, vol. 9, pp. 947-957, 1979.
About the authors

|
 |
J. Leslie Keedy is Professor and Head,
Department of Computer Structures, University of Ulm, Germany,
where he leads the Timor language design and the Speedos operating
system design groups. His email address is keedy@informatik.uni-ulm.de.
His biography can be visited at http://www.informatik.uni-ulm.de/rs/mitarbeiter/jlk/ |

|
|
Klaus Espenlaub is working towards
his Ph.D. in Computer Science at the University of Ulm. Currently
he works as a research assistant in the Department of Computer
Structures at the University of Ulm. His research interests include
secure operating systems, protection mechanisms and computer architecture.
His email address is espenlaub@informatik.uni-ulm.de. |

|
|
Christian Heinlein received a Ph.D.
in Computer Science from the University of Ulm in 2000. Currently,
he works as a scientific assistant in the Department of Computer
Structures at the University of Ulm. His research interests include
programming language design in general, especially genericity,
extensibility and non-standard type systems. His email address
is heinlein@informatik.uni-ulm.de. |
 |
|
Gisela Menger received a Ph.D. in Computer
Science from the University of Ulm in 2000. Currently she works
as a scientific assistant in the Department of Computer Structures
at the University of Ulm. Her research interests include programming
language design and software engineering. Her email address is
menger@informatik.uni-ulm.de. |
Cite this article as follows:J. Leslie Keedy et al: “Qualifying
Types with Bracket Methods in Timor”, in Journal of Object Technology,
vol. 3, no. 1, January-February 2004, pp. 101-121. http://www.jot.fm/issues/issue_2004_01/article1
|
