Modeling the .NET CLR Exception Handling Mechanism for a Mathematical Analysis

Nicu G. Fruja, Computer Science Department, ETH Zürich, Switzerland
Egon Börger, Dipartimento di Informatica, Università di Pisa, Italy

ARTICLE

PDF Version

We provide a mathematical reference model for the exception handling mechanism of the Common Language Runtime (CLR), the virtual machine underlying the interpretation of .NET programs. The model filles some gap in the ECMA standard for CLR and is used to sketch the exception handling related part of a soundness proof for the CLR bytecode verifier.

1 INTRODUCTION

This work is part of a larger project [17] which aims at establishing some important properties of C^# and CLR by mathematical proofs. Examples are the correctness of the bytecode verifier of CLR [11], the type safety (along the lines of the first author’s correctness proof [14,15] for the definite assignment rules) of C^#, the correctness of a general compilation scheme. We reuse the method developed for similar work for Java and the Java Virtual Machine (JVM) in [25]. As part of this effort, in [5,13,20] an abstract interpreter has been developed for C^#, including a thread and memory model [24,23]; see also [8] for a comparative view of the abstract interpreters for Java and for C^#.

In [16] an abstract model is defined for the CLR virtual machine without the exception handling instructions, but including all the constructs which deal with the interpretation of the procedural, object-oriented and unsafe constructs of .NET compatible languages such as C^#, C++, Visual Basic, VBScript, etc. The reason why we present here a separate model for the exception handling mechanism of CLR is to be found in the numerous non-trivial problems we encountered in an attempt to fill in the missing parts on exception handling in the ECMA standard [10]. Already in JVM the most difficult part for the correctness proof of the bytecode verifier was the one dealing with exception handling (see [25, §16]). The concrete purposes we are pursuing in this paper are twofold. First, we want to define a rigorous ground model (in the sense of [3]) for the CLR exception mechanism, to be used as reference model for the exception handling related part of a correctness proof for the bytecode verifier [11]. Secondly, we want to clarify the numerous issues concerning exception handling which are left open in the ECMA standard, but are relevant for a correct understanding of the CLR mechanism.

The ECMA standard for CLR contains only a few yet incomplete paragraphs about the exception handling mechanism. A more detailed description of the mechanism can be found in one of the few existing documents on the CLR exception handling [9]. The CLR mechanism has its origins in theWindows NT Structured Exception Handling (SEH) which is described in [22]. What we are striving for, the CLR type safety, is proved for a subset of CLR in [19]. However, that paper does not consider the exception handling classified in [19, §4] as a fairly elaborate model that permits a unified view of exceptions in C++, C^#, and other high-level languages. So far, no mathematical model has been developed for the CLR exception handling. The JVM exception mechanism, which differs significantly from the one of CLR, has been investigated in [6, 25].

We use three different methods to check the faithfulness (with respect to CLR) of the modeling decisions we had to take where the ECMA standard exhibits deplorable gaps. First of all, the first author made a series of experiments with CLR, some of which are made available in [12] to allow the reader to redo and check them. We hope that these programs will be of interest to the practitioner and compiler writer, as they show border cases which have to be considered to get a full understanding and definition of exception handling in CLR. Secondly, to provide some authoritative evidence for the correctness of the modeling ideas we were led to by our experiments, over the Fall of 2004 the first author had an electronic discussion with Jonathan Keljo, the CLR Exception System Manager, which essentially confirmed our ideas about the exception mechanism issues left open in the ECMA documents. Last but not least a way is provided to test the internal correctness of the model presented in this paper and its conformance to the experiments with CLR, namely by an executable version of the CLR model, using AsmL [1]. The AsmL implementation of the entire CLR model is available in [21].

Since the focus of this paper is the exception mechanism of CLR, we assume the reader to have a rough understanding of CLR. We also refer without further explanations to the model execCLR_N defined in [16], which describes what the machine does upon its ”normal” (exception-free) execution.

Our model for CLR together with the exception mechanism comes in the form of an Abstract State Machine (ASM) CLR_E. Since the intuitive understanding of the ASMs machines as pseudo-code over abstract data structures is sufficient for the comprehension of CLR_E, we abstain here from repeating the formal definition of ASMs which can be found in the AsmBook [7]. However, for the reader’s convenience we summarize here the most important ASM concepts and notations that are used in this paper. A state of an ASM is given by a set of static or dynamic functions. Nullary dynamic functions correspond to ordinary state variables. Formally all functions are total. They may, however, return the special element undef if they are not defined at an argument. In each step, the machine updates in parallel some of the functions at certain arguments. The updates are programmed using transition rules P, Q with the following meaning:

We stress the fact that in one step, an ASM fires simultaneously all its rules (synchronous parallelism).

Notational convention Beside the usual list operations (e.g., push, pop, top, length, and·)¹, we use split(L,1) to split off the last element of the list L, i.e., split(L,1) is the pair (L', [x]) where L' · [x] = L.

The paper is organized as follows. In Section 2, we list a few notations defined in [16] and used in this paper. Section 3 gives an overview of the CLR exception handling mechanism. The elements of the formalization are introduced in Section 4. Section 5 defines the so-called StackWalk pass of the exception mechanism. The other two passes, Unwind and Leave are defined in Section 6 and Section 7, respectively. The execution rules of CLRE are introduced in Section 8. Section 9 considers the refinements that shall be applied to our model in order to also treat the handling of the special ThreadAbortException. In Section 10 we illustrate a verification usage of the mathematical CLR_E model by providing the exception handling related details of a soundness proof of (a model of) the CLR bytecode verifier. A preliminary version of this paper appeared in [18].

2 PRELIMINARIES

We summarize briefly the notations introduced in [16] that are relevant for the exception handling mechanism. For a detailed description we refer the reader to [16].

A method frame consists of a program counter pc : Pc, local variables addresses locAdr : Map(Local, Adr), arguments addresses argAdr : Map(Arg, Adr), an evaluation stack² evalStack : List(Value), and a method reference meth : MRef. The frame denotes the currently executed frame. Accordingly, pc gives the program counter of the current frame, locAdr the local variables addresses of the current frame, etc.

The stack of call frames is denoted by frameStack and is defined as a list of frames. Note that we separate the current frame from the stack of call frames, i.e., frame is not contained in frameStack. The macros PushFrame and PopFrame are used to push and pop the frame, respectively.

Fig. 1 The CLR_E machine

3 THE GLOBAL MACHINE STRUCTURE

Every time an exception occurs, the control is transferred from “normal” execution (in execCLR_E) to a so-called “exception handling mechanism” which we model as a submachine excCLR. To switch from normal execution (read: in mode Noswitch) to this new component, the mode is set to, say, switch := ExcMech which interrupts execCLR_E and triggers the execution of excCLR. The machine execCLR_E is an extension of the exception-handling-free machine execCLR_N by a submachine which executes instructions related to exceptions (like Throw, Rethrow, etc.); it will be defined in Fig. 4. Due to the very weak conditions imposed by the ECMA standard on class initialization, the overall structure of CLR_E has to foresee that the initialization of a beforefieldinit³ class may start at any moment, as analyzed in detail in [13]; this explains the definition of CLR_E as a machine which, in the normal execution mode (see also the remark below) non-deterministically chooses whether to start a class initialization or to execute the current instruction code(pc) pointed at by the program counter pc (see Fig. 1).

The exception handling mechanism proceeds in two passes. In the first pass, the runtime system runs a “stack walk” searching, in the possibly empty exception handling array associated by excHA : Map(MRef , List(Exc)) to the current method, for the first handler that might want to handle the exception:

a catch handler whose type is a supertype of the type of the exception, or
a filter handler – to see whether a filter wants to handle an exception, one has first to execute (in the first pass) the code in the filter region: if it returns 1, then it is chosen to handle the exception; if it returns 0, this handler is not good to handle the exception.

Visual Basic and Managed C++ have special catch blocks which can “filter” the exceptions based on the exception type and / or any conditional expression. These are compiled into filter handlers in the Common Intermediate Language (CIL) bytecode. The filter handlers bring considerable complexity to the exception mechanism.

The ECMA standard does not clarify what happens if the execution of the filter or of a method called by it throws an exception. The currently handled exception is known as an outer exception while the newly occured exception is called an inner exception. As we will see below, the outer exception is not discarded but its context is saved by excCLR while the inner exception becomes the outer exception.

If a match is not found in the faulting frame, i.e., the frame where the exception has been raised, the calling method is searched, and so on. This search eventually terminates:

When a match is found, the first pass terminates and in the second pass, called “unwinding of the stack”, CLR walks once more through the stack of call frames to the handler determined in the first pass, but this time executing the finally and fault⁴ handlers and popping their frames. It then starts the corresponding exception handler.

Class initialization vs. Exception mechanism Although the ECMA standard [10, §8.9.5] says that a beforefieldinit class can be initialized at any time (before an access to one if its static fields occurs), it is not clear whether the .NET implementation follows the same line and allows such initialization to happen, for example, even during the purely administrative handler search excCLR has to accomplish to provide the specified effect of exception handling code, formally when switch = ExcMech. As one can see in Fig. 1, our model rules this out and considers that no initialization can happen when switch is ExcMech. This does not exclude initializations to be triggered during the execution of filter or handler code (when switch is different from ExcMech).

However, our model can be refined to allow class initializers to be non-deterministically triggered when switch is ExcMech:

A stack switchStack of switch values is added.
Assume that switch is ExcMech and the run-time system decides to initialize a beforefieldinit class. In this case, the current value of switch, i.e., ExcMech, is pushed onto switchStack, and the macro InitializeClass is executed.
The rule for Return instructions is refined to reflect the special semantics of a Return instruction of a .cctor of a beforefieldinit class: frame is discarded, and switch is set to the topmost value on switchStack.

Fig. 2 The predicates isInTry, isInHandler and isInFilter

4 THE GLOBAL STRUCTURE OF ecxCLR

In this section, we provide some detail on the elements, functions and predicates needed to turn the overall picture into a rigorous model.

The elements of an exception handling array excHA : Map(MRef , List(Exc)) are known as handlers and can be of four kinds. They are elements of a set Exc:

Any 7-tuple of the above form describes a handler of kind clauseKind which “protects” the region⁵ that starts at tryStart and has the length tryLength, handles the exception in an area of instructions that starts at handlerStart and has the length handlerLength– we refer to this area as the handler region; if the handler is of kind catch, then the type of exceptions it handles is provided, whereas if the handler is of kind filter, then the first instruction of the filter region is at filterStart. In case of a filter handler, the handler region starting at handlerStart is required by the ECMA standard to immediately follow the filter region – in particular we have filterStart < handlerStart. We often refer to the sequence of instructions between filterStart and handlerStart - 1 as the filter region. We assume that a filterStart is defined for a handler if and only if the handler is of kind filter, otherwise filterStart is undefined.

To simplify the presentation, we define the predicates in Fig. 2 for an instruction located at program counter position pos Pc and a handler h Exc. Note that if the predicate isInFilter is true, then filterStart is defined and therefore h is of kind filter. Based on the lexical nesting constraints of protected blocks specified in [?, Partition I,§12.4.2.7] which we assume in the model, one can prove the following property:

Disjointness 1 The predicates isInTry, isInHandler and isInFilter are pairwise disjoint.

We also assume all the constraints concerning the lexical nesting of handlers specified in the standard [10, Partition I,§12.4.2.7]. The ECMA standard [10, Partition I,§12.4.2.5] ordering assumption on handlers is:

To handle an exception, the excCLR needs to record:

the exception reference exc,
the handling pass,
a stackCursor, i.e., the position currently reached in the stack of call frames (a frame f ) and in the exception handling array of f (an index in excHA),
the suitable handler determined at the end of the StackWalk pass (if any); this is the handler that is going to handle the exception in the pass Unwind – until the end of the StackWalk pass, handler is undefined.

According to the ECMA standard [10, §12.4.2.8, Partition I], every normal execution of a try block or a catch/filter handler region (not to be confused with a filter region) must end with a Leave(target) instruction. When doing this, excCLR has to record the current pass and stackCursor together with the target up to which every included finally code has to be executed.

We list some constraints which will be needed below to understand the treatment of these Leave instructions.

The nesting of passes determines EXCCLR to maintain an initially empty stack of exception records or leave records for the passes that are still to be performed.

In the initial state of EXCCLR, there is no pass to be executed, i.e., pass = undef.

Only one handler region per try block? The ECMA standard specifies in [10, Partition I,§12.4.2] that a single try block shall have exactly one handler region associated with it. But the IL assembler ilasm does accept also try blocks with more than one catch handler block. This discrepancy is solved if we assume that every try block with more than one catch block, which is accepted by the ilasm, is translated in a semanticspreserving way as follows:

We can now summarize the overall behavior of excCLR, which is defined in Fig. 3 and analyzed in detail in the following sections, by saying that if there is a handler in the frame defined by stackCursor, then excCLR will try to find (when StackWalking) or to execute (when Unwinding) or to leave (when Leaveing) the corresponding handler; otherwise it will continue its work in the invoker frame or end its Leave pass at the target.

5 THE STACKWALK PASS

During a StackWalk pass, EXCCLR starts in the current frame to search for a suitable handler of the current exception in this frame. Such a handler may exist if the search position n in the current frame has not yet reached the last element of the array excHA of handlers of the corresponding method m.

If there are no (more) handlers in the frame fr pointed to by stackCursor, then the search has to be continued at the invoker frame fr'. This means to reset the stackCursor to point to the invoker frame, which precedes fr in the frame stack combined with frame:

There are three groups of possible handlers h excCLR is looking for in a given frame during its StackWalk:

a catch handler whose try block protects the program counter pc of the frame pointed at by stackCursor and whose type is a supertype of the exception type;

a filter handler whose try block protects the pc of the frame pointed at by stackCursor;

a filter handler whose filter region contains the pc of the frame pointed at by stackCursor. This corresponds to an outer exception described below.

The order of the if clauses in the let statement from the rule StackWalk in Fig. 3 is not important. This is justified by the following property:

Disjointness 2 For every type t, the predicates matchCatch^t, matchFilter and isInFilter are pairwise disjoint⁶.

The above property can be easily proved using the definitions of the three predicates and the property Disjointness 1.

The handler pointed to by the stackCursor, namely hanWithinFrame(( , , , ,m), n), is defined to be excHA(m)(n). If this handler is not of one of the three types above, then the stackCursor is incremented to point to the next handler candidate in the excHA:

The Ordering assumption stated in Section 4 and the lexical nesting constraints stated in [?, Partition I,§12.4.2.7] ensure that if the stackCursor points to a handler of one of the three types above, then this handler is the first such handler in the exception handling array (starting at the position indicated in the stackCursor).

Handler Case 1 If the handler pointed to by the stackCursor is a matching⁷ catch, then this handler becomes the handler to handle the exception in the pass Unwind. The stackCursor is reset to be reused for the Unwind pass: it shall point to the faulting frame, i.e., the current frame. Note that during StackWalk, frame always points to the faulting frame except in case a filter region is executed. However, the frame built to execute a filter is never searched for a handler corresponding to the current exception.

Handler Case 2 If the handler is a filter, then by means of ExecFilter its filter region is executed. The execution is performed in a separate frame constructed especially for this purpose. However this detail is omitted by the ECMA standard [?]. The currently-to-be-executed frame becomes the frame for executing the filter region. The faulting exception frame is pushed on the frameStack. The current frame points now to the method, local variables and arguments of the frame in which stackCursor is, it has the exception reference on the evaluation stack evalStack and the program counter pc set to the beginning filterStart of the filter region. The switch is set to Noswitch in order to pass the control to the normal machine execCLR_E.

Fig. 3 The exception handling machine excCLR

Handler Case 3 The stackCursor points to a filter handler whose filter region contains the pc of the frame pointed at by stackCursor.

Exceptions in filter region? It is not documented in the ECMA standard what happens if an (inner) exception is thrown while executing the filter region during the StackWalk pass of an outer exception. The following cases are to be considered:

if the inner exception is taken care of in the filter region, i.e., it is successfully handled by a catch/filter handler or it is aborted because it occured in yet another filter region of a nested handler (see the isInFilter clause), then the given filter region continues executing normally (after the exception has been
taken care of);
if the inner exception is not taken care of in the filter region, then it will be discarded (via the ContinueOuterExc macro defined in Section 6) after its finally and fault handlers have been executed (see Tests 6, 8, and 9 in [?]). Therefore, in this case excCLR exits via the macro ExitInnerExc the StackWalk and starts an Unwind pass, during which all the finally/fault handlers for the inner exception are executed until the filter region where the inner exception occured is reached.

6 THE UNWIND PASS

As soon as the pass StackWalk terminates, the excCLR starts the Unwind pass with the stackCursor pointing to the faulting exception frame. Starting there, one has to walk down to the handler determined in the StackWalk, executing on the way every finally/fault handler region. This happens also in case handler is undef. When Unwinding, the excCLR searches for one of the following four handlers:

• the matching target handler, i.e., the handler determined at the end of the StackWalk pass (if any) – handler can be undef if the search in the StackWalk has been exited because an exception was thrown in a filter region. For the matching target handler case, the two handler and stackCursor frames in question have to coincide. We say that two frames are the same if the address arrays of their local variables and arguments as well as their method names coincide.

a matching finally/fault handler whose associated try block protects the pc;

a handler whose handler region contains pc;
a filter handler whose filter region contains pc;

The order of the last three if clauses in the let statement of the rule Unwind in Fig. 3 is not important. It only matters that the first clause is guarded by matchTargetHan.

Disjointness 3 The predicates matchFinFault, isInHandler and isInFilter are pairwise disjoint.

The property follows from the definitions and the property Disjointness 1.

The Ordering assumption in Section 4 and the lexical nesting constraints given in [?,Partition I,§12.4.2.7] ensure that if the stackCursor points to a handler of one of the above types, then this handler is the first handler in the exception handling array (starting at the position indicated in the stackCursor) of any of the above types.

If the handler pointed to by the stackCursor is not of any of the above four types, the stackCursor is incremented to point to the next handler in the excHA.

Handler Case 1 The handler pointed to by the stackCursor is the handler found in the StackWalk. Then the handler region of handler is executed through ExecHan: the pc is set to the beginning of the handler region, the exception reference is loaded on the evaluation stack (when ExecHan is applied for executing finally/fault handler regions, nothing is pushed onto evalStack), and the control switches to exexCLR_E.

Handler Case 2 The handler pointed to by the stackCursor is a matching finally or fault handler. Then its handler region is executed with initially empty evaluation stack. At the same time, the stackCursor is incremented through GoToNxtHan.

Handler Case 3 The handler region of the handler pointed to by stackCursor contains pc.

Exceptions in handler region? The ECMA standard does not specify what should happen if an exception is raised in a handler region. The experimentation in [?] led to the following rules of thumb for exceptions thrown in a handler region, in a way similar to the case of nested exceptions in filter code:

if the exception is taken care of in the handler region, i.e., it is successfully handled by a catch/filter handler or it is discarded (because it occured in a filter region of a nested handler), then the handler region continues executing normally (after the exception is taken care of);
if the exception is not taken care of in the handler region, i.e, escapes the handler region, then the following two actions are taken:
- the previous pass of excCLR is aborted through AbortPrevPassRec;

the exception is propagated further via GoToNxtHan in the Unwind pass which sets the stackCursor to the next handler in excHA.

This implies that an exception can go “unhandled” without taking down the process, namely if an outer exception goes unhandled, but an inner exception is successfully handled. In fact, the execution of a handler region can only occur when excCLR runs in the Unwind or Leave pass: in Unwind, handler regions of any kind are executed whereas in Leave only finally handler regions are executed. If the raised exception occured while excCLR was running an Unwind pass for handling an outer exception, the Unwind pass of the outer exception is stopped and the corresponding pass record is popped from passRecStack (see Tests 1, 3 and 4 in [?]). If the exception has been thrown while excCLR runs a Leave pass for executing finally handlers on the way from a Leave instruction to its target, then this pass is stopped and its associated pass record is popped off passRecStack (see Test 2 in [12]).

Handler Case 4 The handler pointed to by the stackCursor is a filter handler whose filter region contains pc. Then the execution of this filter region must have triggered an inner exception whose StackWalk led to a call of ExitInnerExc. In this case, the current (inner) exception is aborted, and the filter considered as not providing a handler for the outer exception. Formally, ContinueOuterExc pops the frame built for executing the filter region, pops from the passRecStack the pass record corresponding to the inner exception and reestablishes the pass context of the outer exception, but with the stackCursor pointing to the handler following the just inspected filter handler. The updates of the stackCursor in PopRec and GoToNxtHan are done sequentially such that the update in GoToNxtHan overwrites the update in the macro PopRec. Note that by these stipulations, there is no way to exit a filter region with an exception. This ensures that the frame built by ExecFilter for executing a filter region is used only for this purpose.

The execution of PopFrame is safe since the frameStack cannot be empty at the time when ContinueOuterExc is fired. [10, Partition II, §12.4.2.8.1] states that the control can be transferred to a filter region only through excCLR. Since pc is in a filter region, an ExecFilter should have been already executed. But in this case, a new frame is pushed on the frameStack. Hence, frameStack is not empty when ContinueOuterExc is executed.

If the Unwind pass exhausted all the handlers in the frame indicated in stackCursor, the current frame is popped from frameStack and the Unwind pass continues in the invoker
frame of the current frame. Note that the execution in the else clause of the macros PopFrame and SearchInvFrame is safe as frame has a caller frame, i.e., frame cannot be the frame of the entrypoint. This is because Backstop entry guarantees that the else clause is not reachable if frame is the frame of the entrypoint. The same argument can be invoked also in case of SearchInvFrame in the StackWalk pass.

Exceptions in class initializers? If an exception occurs in a class initializer .cctor, then the class shall be marked as being in a specific erroneous state and the specific exception TypeInitializationException is thrown. This means that an exception can and will escape the body of a .cctor only by a TypeInitializationException. Any further attempt to access the corresponding class in the current application domain will throw the same TypeInitializationException object. This detail is not specified by the ECMA standard but it seems to correspond to the actual CLR implementation and it complies with the related specification for C^# in the ECMA standard (see Test 7 in [12]). Therefore, we assume that the code sequence of every .cctor is embedded into a catch handler. This catch handler catches exceptions of type Object, i.e., any exception, occured in .cctor, discards it, creates an object of type TypeInitializationException⁸ and throws the new exception.

7 THE LEAVE PASS

The excCLR machine gets into the Leave pass when execCLR_E executes a Leave instruction, which by the Leave constraints can happen only upon a normal termination of a try block or of a catch/filter handler region. One has to execute the handler regions of all finally handlers on the way from the Leave instruction to the instruction whose program counter is given by the Leave target parameter. The stackCursor used in the Leave pass is initialized by the frame of the Leave instruction (see Fig. 4). In the Leave pass, the excCLR machine searches for

finally handlers that are “on the way” from the pc to the target,
real handlers, i.e., catch/filter handlers that are “on the way” from the pc to the target – more details are given below.

Handler Case 1 The handler pointed to by stackCursor is a finally handler on the way from pc to the target position of the current Leave pass record. Then the handler region of this handler is executed (see first Leave rule in Fig. 3).

Handler Case 2 The stackCursor points to a catch/filter handler on the way from pc to target. Then the previous pass record on passRecStack is discarded (see second Leave rule in Fig. 3). In fact, the discarded record refers to the Unwind pass for handling an exception by executing the catch/filter handler pointed at by stackCursor, thus terminating the handling of the corresponding exception.

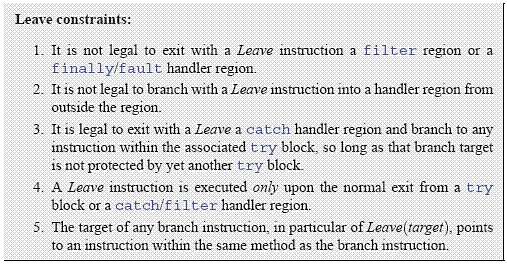

Although the two if clauses in the let statement from the Leave pass are executed in parallel, it is never the case that the embedded ExecHan and AbortPrevPassRec are simultaneously executed. The reason is given by the following property which can be easily proved using the definitions of the predicates:

Disjointness 4 The predicates isFinFromTo and isRealHanFromTo are disjoint.

For each handler excCLR inspects also the next handler in excHA. When the handlers in the current method are exhausted, by the Leave constraints this round of excCLR is terminated, and the execution proceeds at target: pc is set to target, the context of the previous pass record on passRecStack is reestablished, and the control is passed to normal execCLR_E execution (see Fig. 3).

8 THE RULES OF EXECCLRE

The rules of execCLR_E in Fig. 4 specify the effect of the CIL instructions related to exceptions. Each of these rules transfers the control to excCLR. Throw pops the topmost evaluation stack element (see Remark below), which is supposed to be an exception reference. It loads the pass record associated to the given exception: the stackCursor is initialized for a StackWalk by the current frame and 0. If the exception mechanism is already working in a pass, i.e., pass ≠ undef , then the current pass record is pushed onto passRecStack.

If the exception reference found on top of the evalStack by the Throw instruction is null, a NullReferenceException is thrown. For a given class c, the macro Raise(c) is

Fig. 4 The rules of execCLR_E

defined by the following code template⁹:

This macro can be viewed as a static method defined in class Object. Calling the macro is then like invoking the corresponding method.

The ECMA standard states in [10, Partition III,§4.23] that the Rethrow instruction is only permitted within the body of a catch handler. However, in reality it is allowed also within a handler region of a filter (see Test 5 in [12]) throwing the same exception reference that was caught by this handler, i.e., the current exception exc of excCLR.Formally, this means that the pass record associated to exc is loaded on excCLR.

In a filter region, exactly one EndFilter is allowed, namely its last instruction, which is supposed to be the only one used to normally exit the filter region (see the remark above on exceptions in a filter region). EndFilter takes an integer val from the stack that is supposed to be either 0 or 1. In the ECMA standard, 0 and 1 are assimilated with “continue search” and “execute handler”, respectively. There is a discrepancy between [10, Partition I,§12.4.2.5] which states Execution cannot be resumed at the location of the exception, except with a user-filtered handler – therefore a “resume exception” value in addition to 0 and 1 is foreseen allowing CLR to resume the execution at the point where the handled exception has been raised— and [10, Partition III,§3.34] which states that the only possible return values from the filter are “exception continue search”(0) and “exception execute handler”(1).

If val is 1, then the filter handler to which EndFilter corresponds becomes the handler to handle the current exception in the pass Unwind. Remember that the filter handler is the handler pointed to by the stackCursor. The stackCursor is reset to be used for the pass Unwind: it will point into the topmost frame on frameStack which is actually the faulting frame. If val is 0, the stackCursor is incremented to point to the handler following our filter handler. Independently of val, the current frame is discarded to reestablish the context of the faulting frame. Note that we do not explicitly pop val from the evalStack since the global dynamic function evalStack is updated anyway in the next step through PopFrame to the evalStack' of the faulting frame.

The EndFinally instruction terminates (normally) the execution of the handler region of a finally or of a fault handler. It transfers the control to excCLR. A Leave instruction loads a pass record corresponding to a Leave pass.

Remark The reader might ask why the instructions Throw, Rethrow, and EndFilter do not set the evalStack. The reason is that this set up, i.e., the emptying of evalStack, is supposed to be either a side-effect (the case of the Throw and Rethrow instructions) or ensured for a correct CIL (the case of the EndFilter instruction). Thus, the Throw and Rethrow instructions pass the control to excCLR which, in a next step, will execute¹⁰ a catch/finally/fault handler region or a filter code or will propagate the exception in another frame. All these “events” will “clear” the evalStack. In case of EndFilter, the evalStack must contain exactly one item (an int32 which is popped off by EndFilter). Note that this has to be checked by the bytecode verifier (see Fig. 5) and is not ensured by the exception handling mechanism.

9 THE threadabortexception

There is one exception, i.e., ThreadAbortException [2], whose handling needs an extension of our exception model. When a call is made to Thread::Abort to terminate a thread, the system throws a ThreadAbortException in the target thread. ThreadAbortException is a special exception (known also as an “unstoppable” exception) that can be caught by application code, but is rethrown at the end of the catch/filter handler region unless the method Thread::ResetAbort is called. When the ThreadAbortException is raised, the exception mechanism executes any finally/fault handler regions for the target thread.

As the ECMA standard [10] does not specify the special handling of this exception, we did not include it in our basic model. However, the model is flexible enough to be refined in a few places (in the sense of ASM refinements defined in [4]) to also cover the handling of this “unstoppable” exception:

The universe ExcRec of exception records is refined to include an object reference denoted discardedTAE.

Assume that a ThreadAbortException is handled by the exception handling mechanism excCLR. If another exception, say exc, is raised, and the handling of exc attempts to discard the ThreadAbortException, then the discarded ThreadAbortException reference is stored in discardedTAE. Let us assume that the current thread is going to be aborted. We assume that an exception record associated to a ThreadAbortException is loaded into excCLR. The discardedTAE component of the record is set to the exception reference. Thus, the components exc and discardedTAE are the same.

The macro AbortPrevPassRec used in the isInHandler clause of the Unwind rule is refined to also “transfer” the abort request (if any), i.e., the current exception will take over the ThreadAbortException reference (if any) carried by the discarded exception record:

Similarly, PopRec used in the isInFilter clause of the Unwind rule is refined to “ transfer” the ThreadAbortException that has to be raised later again. Note that in this way a ThreadAbortException can escape a filter region.

Also, the macro SetRecUndef is refined to also reset discardedTAE to undefined.

The isRealHanFromTo clause of the Leave rule in Fig. 3 is modified to rethrow the discarded ThreadAbortException:

Note that the incrementation of the stackCursor through GoToNxtHan shall not be anymore done in the isRealHanFromTo clause but only for the isFinFromTo clause.

The special semantics of invoking the Thread::ResetAbort method has to be added to the definition of the machine CLR_E in Fig. 4. Beside executing the method body, the invocation also aborts the ThreadAbortException. Note that the abort does not stop the handling of the ThreadAbortException but only its“ unstoppable” attribute. In other words, after the ThreadAbortException is handled by excCLR, the execution continues normally and the exception is not raised automatically again.
The abort is realized by setting to undefined the discardedTAE component of the exception records on passRecStack¹¹.

10 THE BYTECODE VERIFICATION

The bytecode verifier statically checks the type-safety of the bytecode and therefore its soundness is critical for the security model. We show in this section how one can use the mathematical model introduced in the previous sections in the soundness proof of the .NET CLR bytecode verifier specified in [10, Partition III]. We provide arguments to establish the soundness of the bytecode verification in case exception handling related steps could be performed by the code, assuming the soundness for the verification of code related only to exception free (execCLR_N) execution. More precisely, we sketch a proof that, for methods accepted by the verifier, the execution of instructions related to exceptions does not violate any of the following properties: type safety, i.e., every instruction will always execute with arguments of expected types, bounded evaluation

Fig. 5 Verifying the instructions related to exceptions

stack, i.e., the evaluation stack will never exceed a bound computed by the compiler, program counter safety, i.e., the program counter will always point to a valid code index.

What the verifier checks

For the soundness proof, we do not rely upon any particular bytecode verifier but list only the assumptions we need on the execution of the bytecode verification as described in [10, Partition III]. The bytecode verification is performed on a per-method basis. The verifier simulates all possible control flow paths through the code, attempting to associate a valid type stack state¹² with every reachable instruction. The type stack state evalStackT specifies for each slot of evalStack a required type in that slot and thereby also the number of values on the evalStack at that point in the code. Before simulating the execution of an instruction, the verifier checks whether certain conditions are satisfied. We specify in Fig. 5 by means of the predicate check the conditions checked by the verifier for the instructions related to exceptions. The checks for a single instruction operate on evalStackT. The relation denotes the compatibility relation between types; for a formal definition see [11].

In JVM, the Throw instruction expects an object of type Throwable on the stack. The CLR bytecode verifier is not so strict: it requires that the top stack element is of type object. The EndFilter instruction which terminates the execution of a filter region expects an integer on the stack and that the stack contains only this integer. For the instructions Rethrow, EndFinally, and Leave nothing has to be checked.

Since the bytecode verifier works on a stack of types and not of values, at branching points in the control-flow it has to consider every successor that may be possible at runtime. Therefore, the type stack state for an instruction at pos yields constraints on how to match the type stack states of all instructions that are runtime possible control-flow successors of pos. In Fig. 6, we define the function succ which, given an instruction and a type stack state, computes the successor code indices together with their type stack states.

Each instruction can throw exceptions. This assumption is realistic since the special ExecutionEngineException may be thrown at any time during the execution of a program. Therefore, for an instruction at pos, all the handlers h that protect pos

Fig. 6 The type stack state successors of the instructions related to exceptions

are included into the set of possible successor type stack states by means of a function excHandlers. Upon entering a catch handler, the type stack state contains only the type type(h) of exceptions that h is “handling” whereas, upon entering a filter region or a filter handler region, the type stack state is [object]. In case of a finally/fault handler, the type stack state is [ ]. Except for the case of a filter region, the successor code index is given by handlerStart(h). In case of a filter region, the successor is filterStart(h).

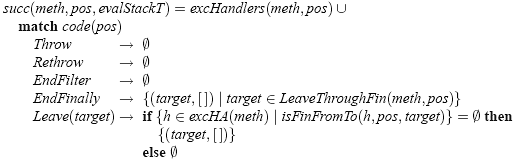

Beside the successors defined by excHandlers, in case of the instructions Throw, Rethrow, and EndFilter there are no other successors (see Fig. 6). In case of an EndFinally instruction succ yields also the targets of Leave instructions that could trigger the execution of the finally handler to which the EndFinally instruction corresponds. The associated type stack state is the empty list. The set LeaveThroughFin of these possible targets is defined as follows.

Thus, target is an element of LeaveThroughFin(meth, pos) for an EndFinally instruction at pos if this EndFinally corresponds to the last finally handler “on the way” from a Leave(target) instruction to the instruction at target. By definition, the set LeaveThroughFin is empty for an EndFinally instruction which corresponds to a fault handler (because the predicate isFinFromTo evaluates to false for fault handlers). This means that the EndFinally instruction which terminates the execution of a fault handler region has no successors (beside those defined in excHandlers).

We now explain the definition of succ in the case of a Leave instruction. If there is no finally handler “on the way” from the Leave instruction to its target, the target instruction with an empty type stack state is an additional successor. If there is a finally handler “on the way”, say h, the successor given by the instruction at handlerStart(h) is already considered in excHandlers, so that in this case succ provides no additional successor.

The context of the verifier soundness proof

Instead of a particular bytecode verifier, we use a characterization of the type properties of bytecode that is accepted by the verifier. This leads us to Definition 1 of well-typedness of a method, which we consider as a requirement for every method to be accepted by the verifier. The auxiliary relation len of pointwise compatibility of type stack states is defined for lists of types L', L" of lengths m, n as follows:

Definition 1 (Well-typed method) A method mref is called well-typed if there exists a family of type stack states (evalStackT_i) over a domain which satisfies the conditions:

The domain collects the code indices which are reachable from the code index 0. (wt1) states that consists of valid code indices only, and (wt2) says that 0 is in the domain. (wt3) requires the type stack state to be empty upon the method entry. (wt4) ensures that the type stack states satisfy all type-consistency checks. (wt5) says that a successor type stack state has to be more specific than the type stack state associated to the successor index. In particular, this means that the type stack state asserted in any successor shall be more specific but of the same length as the predecessor type stack state. The condition is related to the rules described in [10, Partition III, §1.8.1.3] for “merging” type stack states. When simulating the control flow paths, the verifier merges the simulated type stack state with the existing type stack state at any successor instruction in the flow. If the numbers of slots in the two type stack states differ, the merge fails. Otherwise, the merge of the type stack states is computed slot-by-slot. A precise abstract definition of the structurally similar JVM bytecode verifier formalizing such merge rules is provided in [25, §17].

The proof for CLR_E

In this section, we show how to extend the soundness proof from execCLR_N to CLR_E. The soundness theorem proved for the exception-free machine execCLR_N guarantees that the following type-safety invariants hold at runtime for well-typed methods.

(pc) pc , i.e., the program counter pc is always a valid code index;

(stack1) the current evalStack has the same length as evalStackT_pc;

(stack2) the values on the current evalStack are compatible with the corresponding types assigned in evalStackT_pc;

(loc) all the local variables have values compatible with the declared local variable types;

(arg) all the arguments have values compatible with the declared argument types;

(init) an “uninitialized” object can only occur in an object class constructor .ctor of an appropriate class (see the object initialization rules in [10, Partition III, §1.8.1.4]);

(field) all fields of an object class instance are compatible with the declared field types;

(box) the value type instance embedded into a boxed value (object) is of the expected value type;

As one can easily see in the proof of Theorem1, the invariants (loc)-(box) are not affected by computation steps of excCLR. It suffices therefore to consider here only the invariants (pc), (stack1), and (stack2). The formalization of the invariant (stack2) involves a typing judgment val : t defined in [11] and interpreted as follows: the type of the value val is a subtype of the type t.

Theorem 1 (Soundness of Bytecode Verification) The following invariants are satisfied by every frame in every runtime state of CLR_E for every well-typed method meth:

Proof. The proof assumes the proof for execCLR_N and proceeds by induction on the run of CLR_E. In the initial state of CLR_E., the invariants for the single existing frame (of the .entrypoint method) are satisfied. In fact, this frame satisfies pc = 0 and evalStack = [ ]. Thus, (pc) holds by (wt2) and (stack1), and (stack2) follows from (wt3). In the induction step, we proceed by case distinction on code(pc), whether execCLR_E has the control (switch = Noswitch) or excCLR (switch = ExcMech). In the second case, we make an additional case distinction on pass. Due to space limitations we present here only some characteristic subcases that can occur in each case.

Case 1 switch = Noswitch. The subcases code(pc) {Throw, Rethrow, EndFinally} are trivial because they do not affect neither pc nor evalStack.

Subcase 1.1 code(pc) = EndFilter. Then CLR_E executes PopFrame, and sets switch to Noswitch. PopFrame reestablishes the context of the invoker frame of frame. The induction hypothesis guarantees that the invariants hold for the new current frame, namely the caller frame of frame.

Subcase 1.2 code(pc) = Leave(target). When executing Leave(target), execCLR_E loads the leave record (Leave, (frame, 0), target) onto the passRecStack and gives the control to excCLR, i.e., sets switch to ExcMech. As the invariants are not affected, the claim follows from the induction hypothesis.

Case 2 switch = ExcMech. We present two subcases out of three.

Subcase 2.1 pass = Leave. Let s and target be the current value of the stackCursor and the target associated to this Leave pass, respectively.

Subcase 2.1.1 existsHanWithinFrame(s) is true. Let h be the handler pointed to by s. If isRealHanFromTo(h, pc, target) is true, excCLR executes AbortPrevPassRec and GoToNxtHan which do not influence the invariants. Therefore, the claim follows from the induction hypothesis.

If isFinFromTo(h, pc, target) is true, excCLR executes the macros ExecHan(h) and GoToNxtHan. ExecHan(h) sets pc to handlerStart(h), evalStack to [] (since by the definition of isFinFromTo, h is a finally handler) and switch to Noswitch. By the definition of excHandlers, we get that (handlerStart(h), []) is in the set excHandlers(meth, pc) and therefore in succ(meth, pc, evalStackT_pc). This together with (pc) and (wt5) imply handlerStart(h) and [] _len evalStackT_{handlerStart(h)}. This means that the invariants (pc), (stack1), and (stack2) are preserved for the current frame (the last two invariants hold since evalStackT_{handlerStart(h)} is necessarily []).

Subcase 2.1.2 existsHanWithinFrame(s) is false. In this case, excCLR sets pc to target, evalStack to [], switch to Noswitch and executes PopRec. From the definition of the Leave rules in execCLR_E and excCLR, it follows that code(pc) = EndFinally or code(pc) = Leave(target).

If code(pc) is the EndFinally instruction, the definition of the function succ implies (target, []) succ(meth, pc, evalStackT_pc).

If code(pc) is an instruction Leave(target), then by the definition of Subcase 2.1.2, the set {h excHA(meth) | isFinFromTo(h, pc, target)} is empty. Then the definition of succ implies (target, []) succ(meth, pc, evalStackT_pc).

Thus, in every case holds (target, []) succ(meth, pc, evalStackT_pc). This together with (pc) and (wt5) implies target and [] _lenevalStackT_target. Consequently, the invariants (pc), (stack1), and (stack2) hold for the current frame (the last two hold since evalStackT_target shall be []).

Subcase 2.2 pass = StackWalk. Let s be the current value of the stackCursor.

Subcase 2.2.1 existsHanWithinFrame(s) is true. Let h be the handler pointed to by s and pos the program counter of the frame pointed to by s.

If h satisfies matchFilter(pos, h), thenexcCLR executes ExecFilter(h) which loads on the frameStack a frame with pc set to filterStart(h) and evalStack to [exc]. From the definition of matchFilter, we have isInTry(pos, h) and clauseKind(h) = filter. By this and the definitions of succ and excHandlers, we get (filterStart(h), [object]) succ(mref , pos, evalStackT_pos) where mref is the method of the frame pointed to by s. The definition of ExecFilter implies that mref is also the method of the new current frame. Thus, (filterStart(h), [object]) succ(meth, pos, evalStackT_pos). This, (pc), and (wt5) imply filterStart(h) and [object] _len evalStackT_{filterStart(h)}. In particular, this means that (pc) holds in the new state and that evalStackT_{filterStart(h)} = [object]. From (wt4) applied to the Throw instruction that threw exc, we know that the type of exc is a subtype of object. Since evalStack = [exc], it follows that the invariants (stack1) and (stack2) hold in the new state.

In all the other cases, excCLR executes submachines that do not update pc or evalStack, so that the claim follows from the induction hypothesis.

Subcase 2.2.2 existsHanWithinFrame(s) is false. Then SearchInvVFrame is executed, without affecting any of the invariants.

Remark From the proof point of view, the case when a method raises an exception is treated as if the corresponding call instruction in the invoker frame would have thrown the exception. Similarly, the case when a class initialization (that might happen at any time if the class is beforefieldinit) throws a TypeInitializationException is considered as if the instruction executed just before the initialization would have thrown the TypeInitializationException. Both cases could also be treated (modulo the corresponding exception object on the evalStack) as if the current instruction would be Throw.

11 CONCLUSION

We have defined an abstract model for the CLR exception handling mechanism. It lays the ground for a mathematical correctness proof of the CLR bytecode verifier. Through a mathematical analysis we discovered a few gaps in the ECMA standard for CLR. Our model fills these gaps.

12 ACKNOWLEDGMENT

We are thankful to Jonathan Keljo for the useful discussion and to the three referees for valuable questions.

Footnote:

¹ The “·” denotes the operation append for lists.

² In order to simplify the exposition we describe here the evalStack as a list of values though [16] defines it as a list of pairs from Value × Type.

³ The ECMA standard states in [?, Partition I, §8.9.5] that, if a class is marked beforefieldinit, then the class initializer method is executed at any time before the first access to any static field defined for that class.

⁴ Currently, no language (other than CIL) exposes fault handlers directly. A fault handler is simply a finally handler that only executes in the exceptional case.

⁵ We will refer to this region as protected region or try block.

⁶ By matchCatch^t we understand the predicate defined by the set {(pos, h) | matchCatch(pos,t,h)}.

⁷ We use the actualTypeOf function defined in [?] to determine the runtime type of the exception.

⁸ In the real CLR implementation, the exception thrown in .cctor is embedded as an inner exception in the TypeInitializationException. We do not model this aspect here.

⁹ The NewObj instruction called with an instance constructor c::.ctor creates a new object of class c, and then calls the constructor .ctor.

¹⁰ One can formally prove that there is such a “step” in the further run of the excCLR.

¹¹ One can formally prove that, at a given time, there exists at most one exception record that has the discardedTAE component defined.

¹² The ECMA standard uses the name stack state. However, we prefer type stack state since we have a more complex notion of state and also more than one stack.

REFERENCES

[1] Abstract State Machine Language (AsmL). Web pages at http://research.microsoft.com/foundations/AsmL/. Foundations of Software Engineering Group, Microsoft Research.

[2] The ThreadAbortException class (System.Threading). Web pages at http://msdn2.microsoft.com/library/system.threading.threadabortexception.aspx.

[3] Egon Börger. The ASM Ground Model Method as a Foundation for Requirements Engineering. In N. Dershowitz, editor, Verification: Theory and Practice, volume Springer, Lecture Notes in Computer Science 2772, pages 145–160, 2003.

[4] Egon Börger. The ASM Refinement Method. Formal Asp. Comput., 15(2-3):237–257, 2003.

[5] Egon Börger, Nicu G. Fruja, Vincenzo Gervasi, and Robert F. Stärk. A High–Level Modular Definition of the Semantics of C^#. Theoretical Computer Science, 336(2–3):235–284, June 2005.

[6] Egon Börger and Wolfram Schulte. A Practical Method for Specification and Analysis of Exception Handling-A Java/JVM Case Study. IEEE Trans. Softw. Eng., 26(9):872–887, 2000.

[7] Egon Börger and Robert F. Stärk. Abstract State Machines – A Method for High-Level System Design and Analysis. Springer–Verlag, 2003.

[8] Egon Börger and Robert F. Stärk. Exploiting Abstraction for Specification Reuse: The Java/C^# Case Study. In F. S. de Boer et al., editors, Formal Methods for Components and Objects: Second International Symposium, FMCO 2003, Leiden, The Netherlands, pages 42–76. Springer–Verlag, Lecture Notes in Computer Science 3188, 2004.

[9] Chris Brumme. The Exception Model. Web pages at http://blogs.msdn.com/cbrumme/, 2003.

[10] Common Language Infrastructure (CLI) – Standard ECMA–335, 2005. Third Edition.

[11] Nicu G. Fruja. The Soundness of the .NET CLR Bytecode Verifier. submitted.

[12] Nicu G. Fruja. Experiments with CLR. available at http://www.inf.ethz.ch/personal/fruja/publications/clrexctests.pdf, November 2004. Example programs to determine the meaning of CLR features not specified by the ECMA standard.

[13] Nicu G. Fruja. Specification and Implementation Problems for C^#. In W. Zimmermann and B. Thalheim, editors, 11th International Workshop on Abstract State Machines, ASM 2004, Wittenberg, Germany, pages 127–143. Springer–Verlag, Lecture Notes in Computer Science 3052, 2004.

[14] Nicu G. Fruja. The Correctness of the Definite Assignment Analysis in C^#. In Vaclav Skala and Piotr Nienaltowski, editors, 2nd International .NET Technologies Workshop, Plzen, Czech Republic, pages 81–88, 2004.

[15] Nicu G. Fruja. The Correctness of the Definite Assignment Analysis in C^# (Extended Version). J. Object Technology, 3(9):29–52, 2004.

[16] Nicu G. Fruja. A Modular Design for the .NET CLR Architecture. In A. Slissenko D. Beauquier and E. B¨orger, editors, 12th International Workshop on Abstract State Machines, ASM 2005, Paris, France, pages 175–199, March 2005.

[17] Nicu G. Fruja. Type Safety in C^# and .NET CLR. PhD thesis, ETH Zürich, expected 2007. in preparation.

[18] Nicu G. Fruja and Egon Börger. Analysis of the .NET CLR Exception Handling. In Vaclav Skala and Piotr Nienaltowski, editors, 3rd International Conference on .NET Technologies, .NET 2005, Pilsen, Czech Republic, pages 65–75, June 2005.

[19] Andrew D. Gordon and Don Syme. Typing a Multi-Language Intermediate Code. Technical Report MSR-TR-2000-106, Microsoft Research, December 2000.

[20] Horatiu V. Jula and Nicu G. Fruja. An Executable Specification of C^#. In A. Slissenko D. Beauquier and E. Börger, editors, 12th International Workshop on Abstract State Machines, ASM 2005, Paris, France, pages 275–287. University Paris 12, March 2005.

[21] Christian Marrocco. An Executable Specification of the .NET CLR, March 2005. Diploma Thesis supervised by N. G. Fruja.

[22] Matt Pietrek. A Crash Course on the Depths of Win32^TM Structured Exception Handling. Microsoft Systems Journal, January 1997.

[23] Robert F. Stärk. Formal Specification and Verification of the C^# Thread Model. Theor. Comput. Sci., 343(3):482–508, 2005.

[24] Robert F. Stärk and Egon Börger. An ASM Specification of C^# Threads and the .NET memory model. In W. Zimmermann and B. Thalheim, editors, 11th International Workshop on Abstract State Machines, ASM 2004, Wittenberg, Germany, pages 38–60. Springer–Verlag, Lecture Notes in Computer Science 3052, 2004.

[25] Robert F. Stärk, Joachim Schmid, and Egon Börger. Java and the Java Virtual Machine – Definition, Verification, Validation. Springer–Verlag, 2001.

About the authors

Nicu G. Fruja is a PhD student and research assistant at the Computer Science Department at ETH Z¨urich, Switzerland. His research interests are in the areas of formal methods, specification, verification and validation of systems, abstract state machines, semantics of programming languages, bytecode verification. He can be reached at fruja@inf.ethz.ch. See also http://www.inf.ethz.ch/personal/fruja/.

Egon Börger Professor of Computer Science at University of Pisa, Italy. (Co-) Author of four books and of over 100 research papers in logic and computer science. Current research interest in rigorous methods and their industrial applications for the design and the analysis of hardware/ software systems.

Cite this document as follows: Nicu G. Fruja and Egon Börger: “Modeling the .NET CLR Exception Handling Mechanism for a Mathematical Analysis, in Journal of Object Technology, vol. 5, no. 3, April 2006, Special issue: .NET Technologies 2005 Conference, pp. 5-34, http://www.jot.fm/issues/issue_2006_04/article1

Next article
