              <td> <h1>The Platform Based-Agents to Test and Evaluate Software Architecture</h1>
			    <p class="text"><strong>Amar Ramdane-Cherif</strong>, <strong>Samir Benarif</strong> and
                               <strong>Nicole Levy</strong>, PRiSM, Universit&eacute; de
		      Versailles, Saint-Quentin en Yvelines, France                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       </p></td>
              <td align="right"><img src="/images/graph/line20h.gif" alt="space" width="20" height="5" border="0"></td>
              <td align="right"><span class="toptitle">REFEREED<br>
                ARTICLE</span><br><br>
			<a href="article1.pdf"><img src="/images/logos/pdficonsmall.gif" alt="PDF Icon" width="22" height="24" border="0"><br>
                </a><span class="text_small">PDF Version</span></td>
            </tr>
          </table>
        </div>
        <h4>Abstract</h4>
        <p>Architecture conception is a difficult and time consuming process,
          requiring advanced skills from the software architect. The tasks of
          an architect are alleviated if means can be provided to generate architectures
          that can be evaluated with respect to functional and non functional
          requirements. This paper discusses of an easier approach to evaluate
          the software architecture. To achieve this goal, we orient our research
          to the development of intelligent and autonomous platform based-agents
          in order to evaluate and test the software architecture. The platform
          is oriented to intelligent system based-agents, which is an emerging
          technology that is making computer systems easier to use by allowing
          people to delegate work back to the computer. However, we exploit the
          advantage of the multi-agents systems like the flexibility, the performance,
          the parallelism and the high level of abstraction for the construction
          of our platform. We propose in our paper, a multi-agents platform which
          can be used, in static mode, as a tool to guide and help architect
          to make the right architectural choice during the design phase process.
          In this phase; the architects are interested in the outcome of the
          evaluation and have the power to make decisions that affect the future
          of the project. This platform can also be used, in dynamic mode, as
          tool to show to the architects different scenarios about the evolution
          and the behavior of one or several quality attributes. Each quality
          attribute is given an estimated value, using qualitative or quantitative
          assessment technique. Then, the platform offers the advantage to observe
          the relationships and the influence between several quality attributes
          required for an application. The platform offers the possibility to
          reconfigure dynamically the architecture in order to maintain one or
          several quality attributes. These qualities are represented by some
          scenarios grouped in some profiles that capture typical changes in
        quality requirements.</p>
        <hr noshade width="80%" size="1">
        <h3>1 INTRODUCTION</h3>
        <p>The architecture of complex software or system is a collection of
          hard decisions that are very expensive to change. Successful product
          development and evolution depend on making the right architectural
          choices to achieve the quality required. An unsuitable architecture
          will precipitate disaster on a project. Performance goals will not
          be met. Security goals will fall by the wayside. The customers will
          grow impatient because the right functionality is not available, and
          the system is too hard to change. For this reason, we based our research
          on the conception of a platform which will operate at the top of the
          a software architecture. This platform must be able to know the mechanism
          of this architecture, to interact and monitor the system of this architecture,
          to give the important results about the quality attributes by testing
          and evaluating this architecture in dynamic mode and to help the architect
          to take the correct choices. Thus, the platform can play the role of
          managing the architecture and maintaining the quality required by the
        its dynamic reconfigurations.</p>
        <p>To construct this platform, we direct
          our research to the comprehension of the architecture, the dynamic
          reconfiguration of an architecture
          and the multi-agents approaches. The &#8220;architecture&#8221; term
          conveys several meanings, sometimes contradictory. In our research
          we consider that architecture deals with the structure of the components
          of a system, their interrelationships and guidelines governing their
          design and evolution over time [1][2]. The architecture then becomes
          the basis of systematic development and evolution of software systems.
          It is clear that a new architecture that permits the dynamism reconfiguration,
          adaptation and evolution while ensuring the quality management of an
          application is needed. In addition, the complexity of emerging applications
          and trend of building trustworthy systems from existing, untrustworthy
          components are urging quality concerns be considered at the architectural
          level. Therefore, architecture analysis can be used to evaluate the
          influence of the design decisions on important quality attributes.
          Software monitoring is a well-know technique for observing and understanding
          the dynamic behavior of programs when executed, and can provide for
          many different purposes [3][4]. Other purposes for applying monitoring
          are: testing, debugging, correctness checking, performance evaluation
          and enhancement, security, control, program understanding and visualization,
        ubiquitous user interaction and dynamic documentation.</p>
        <p>Recently, a number
            of new scenario-based software architecture evaluation methods have
            been developed by different academic groups and published
            in form of bock or doctoral dissertation theses. Many of these methods
            are refinement of Software Architecture Analysis Method (SAAM) [5][6]
            or Architecture Tradeoff Analysis Method (ATAM) [5][7]. They usually
            restrict themselves to a particular class of systems. For example,
            Architecture Level Modifiability Analysis (ALMA) [8][9] method focuses
            on the modifiability of business information system. Another newly
            developed approach, the Family Architecture Analysis Method (FAAM)
            [10], assesses the interoperability and extensibility of information
            system families. Actually, scarce tools supporting evaluation session
            methods exist. For example, in the SAAM, the voting procedure invoked
            for the scenario prioritization and modifiability estimates with
          respect to cost and effort to adapt the architecture are the only techniques
            used. Newly, The ATAM session count a tool to support the evaluation
          [10].</p>
        <p>Our approach can be used as tools to support certain steps of
            all evaluation method based-scenarios, precisely questioning techniques
              (scenarios)
              and measuring techniques (metrics, simulations, prototypes and
          experiments) [11][12]. This paper covers following topics: In the first,
          we introduce
              our platform and describe its structure, the next section we explain
              how the platform monitors the quality attributes of the software
              architecture and interacts with the environment. So, we present
          an example of the
              monitoring of some qualities and its application on real architecture.
            Finally, we finish this paper by discussion and conclusion.</p>        <h3>2	THE PLATFORM
        MULTI-AGENTS</h3>
        <p>In recent years, agents and Multi-Agent Systems (MAS) have
          become a highly active area of Artificial Intelligence (AI) research.
          Agents
          have been developed and applied successfully in many domains. MAS can
          offer several advantages in solving complex problems compared to conventional
          computation techniques. The purpose of traditional Artificial Intelligence
          is to perform complex tasks, thanks to human expertise. This often
          assumes assimilation of many competencies to be subject of centralized
          programming. Moreover, in such monolithic system, the consensus between
          various expertise is difficult to model; indeed, the structure of communication
          between the experts is fixed whereas it should depend on the considered
          problem. Thus, a formalization close to reality where several people
          work together on a same problem is needed. Such formalism should describe
          the participants and interactions between them. This approach is the
          paradigm of the Distributed Artificial Intelligence (DAI). The DAI
          leads to the realization of systems known as &quot;multi-agent&quot; systems
          allowing modeling the behavior of all the entities according to some
          laws of social type. These entities or agents have certain autonomy
          and are immersed in an environment in which and with which they interact.
          Their structure is based on three main functions: perceiving, deciding
        and acting.</p>
        <p>The conception of our agents is based on two descriptions.
            The first is a reasoning view point of agents, it can be considered
            as a system
            of reasoning, aiming at determining the possible actions, privileges,
            and coordination with the environment and other agents. The second
            description is a cooperative view point of agents. It uses vowel
          approach, it is based on four dimensions which are: Agent (A), Environment
          (E),
            Interaction (I), and Organization (O) (see Figure 1). Facet (A) indicates
            the whole of the functionalities of internal reasoning of the agent.
            The facet (E) gathers the functionalities related to the capacities
            of perception and actions of the agent on the environment. Facet
          (I) gathers the functionalities of interaction of the agent with the
          other
            agents (interpretation of the primitives of the communication language,
            management of the interaction and the conversation protocols). The
            facet (O) can be most difficult to obtain, it relates to the functions
            and the representations of the capacities of structuring and management
        of the relations between agents.</p>
        <p align="center"><img src="images/fig1.gif" width="291" height="166"></p>
        <p align="center">Figure 1: Cooperation view point of the agent.</p>

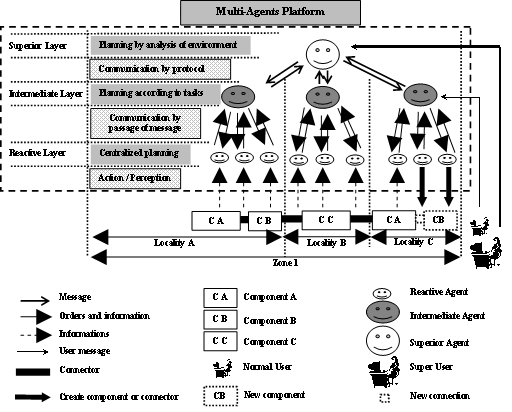

        <p>Our goals is a creation of an autonomous platform able to act on the
          software architecture. While following a logical reasoning, we can
          see three layers in our platform, one layer represents the intelligent
          part of the platform (decisional part), and another layer represents
          the active part of our platform (reactive part). The third layer acts
          as link between the decisional and the reactive parts of the platform
          (see Figure 2). This offers the advantages of the division of the tasks
          and the specialization of the layers. Other aspect of our problem is
          the dynamic nature of our architecture, indeed architecture does not
          cease to evolve, to reconfigure and to extend. It is inconceivable
          to create a rigid and static platform which can follow the evolution
          of this architecture. We must thus already think of such a dynamic
          and evolutionary platform so that it can constantly reach and follow
          the evolution of this architecture. We will consider that our software
          architecture is a such board cut out in small pieces. We consider that
          we can extend this board as parts are added. We have also the freedom
          to modify the parts and to make them move on the board. While considering
          this example, we will establish specific rules to the platform based
          multi-agents which we will build. We will consider that the available
          software architecture is divided into localities, grouped; they form
          one or several zones. This strategy will enable us to better control
          the characteristics of the modifiability and the extensibility of the
        available architecture.</p>
        <p align="center"><img src="images/fig2.gif" width="512" height="412"></p>
        <p align="center">Figure 2: Structure of multi-agents platform</p>
        <p>The architecture of our
            platform consists of three distinct layers.</p>
        <h4>The Higher Layer</h4>
        <p>The higher layer is the highest layer of the platform,
          it is thus, more evolved than the others. This layer has the capacity
          to analyze
            information coming from architecture, thanks to the facet E of its
            agents. Thus, it can evaluate the qualities of an architecture constantly
            and intervene in a targeted way, since the agents have a facet A,
            implying the reasoning. The facet O and I, of the agents enter in
            action when the agents of the intermediary layer do not manage to
            find a solution to a problem. The agents of the higher layer have
            the capacity to organize a group of agents in the intermediary layer
            (implies a cooperation) or to utilize another agent of the higher
            layer (implies a negotiation) in order to achieve the goal. The agents
            of this layer can constantly exchange information relating to the
            zone which they control so that they always have a global and complete
            architecture vision. Each agent of this layer controls a zone of
            architecture; it is responsible for a group of agents of the intermediary
          layer.</p>
        <h4>          Intermediary Layer </h4>        <p>As its name indicates it is a layer which is placed
          between the higher layer and the reactive layer. Each agent of this
          layer takes care of
          several agents of the reactive layer, it is responsible for a quite
          precise locality. The agent itself is connected to only one agent of
          the higher layer. A set of agents of the intermediary layer forms what
          is called a zone. The principal role of this layer is to take care
          of the good progress of the reconfigurations imposed by the higher
          layer. It is a question of controlling and coordinating the agents
          of the reactive layer in order to carry out and to achieve a goal.
          Another role of this layer is the collection of information coming
          from the reactive layer in order to forward them to the agent of the
          higher layer. </p>
        <h4>The Reactive Layer</h4>
        <p>This layer is the body of perception and of action
          of the platform. It is equipped with purely reactive agents which act
          with simple stimulus
          coming from the intermediary layer. The reactive agents belong to a
          locality depending on only one agent of the intermediary layer whose
          they receive the plans. These agents answer to a centralized planning
          and work in cooperation. The exchange between the reactive agents and
          the agent of intermediary layer is simple. The perception induces sending
          simple information toward the central agent, the action is the consequence
          of a stimulus or a simple command.</p>
        <h3>3	MONITORING SYSTEM</h3>
        <p>Software monitoring is a well-know technique
          for observing and understanding the dynamic behavior of programs when
          executed and can provide for
          many different purposes. We adopt this system and adapt it to the agent
          approach. We think that the utilization of agents increase the capability
          of the monitoring system because we add to it the advantages of the
          multi-agents system such as:</p>
        <ul>
          <li> Autonomous monitoring of the architecture.</li>
          <li> Intelligent monitoring.</li>
          <li> Possibility to introduce a new exception or a test by adding
            a new planning in the knowledge base of the agents.</li>
          <li> Parallel monitoring of components and their proprieties.</li>
          <li> Possibility to see several tests and the influence between
            them.</li>
          <li> Filtrate of critical information in the package of information
            for a higher identification of the fault in an architecture.</li>
          <li> Evolve treatment part of monitoring by introducing various
            behaviors of agents according to the environment (the information
            collected).</li>
          <li> Record of collected information in the database of agents
            for its future exploitation (for example, graphic representation).</li>
          <li> Possibility to initiate different parameters of monitoring,
            and capacity to change them at dynamical mode.</li>
        </ul>
        <p>We decompose the monitoring system
          in two parts, the detection phase and treatment phase. The first part
          of system monitoring consists
            in collecting information from the system execution, detecting particular
            events or states using the collected data, analyzing and presenting
            relevant information to the user. As the information is collected
            from
            the execution of the program implementation, there is inherent gap
            between the levels of abstraction of the collected events, states
            of the software architecture. For monitoring, there are basically
            two
            types of monitoring systems based on the information collection:
            sampling (time-driven) and tracing (event-driven) (see Figure 3.a).
            By sampling,
            information about the execution state is synchronously (in a specific
            time rate), or asynchronously (through direct request of the monitoring
            system). By tracing, on the other hand, information is collected
            when an event of interest occurs in the system. Tracing allows a
            better
            understanding and reasoning of the system behavior than sampling.</p>
        <p>The
          treatment part of monitoring occurs after detection phase, it reacts
          to the collected information. The treatment intervenes in
            two cases,
            when event is detected by agent or when state of component don&#8217;t
            respect the constraints imposed by the user. The event occurs when
            exception is sent to monitor agent of reactive layer, this exception
            is due at the abnormal behavior of components (internal or external
            exception). The abnormal state of component is due to overtaking
            of limits imposed by the user (for example, memory consumption out
            of
            fixed limits). The treatment of monitoring system is an action of
            the platform, according its decisional part, two actions can occur.
            The
            platform can recover the warning (event or abnormal state) by adding,
            deleting or modifying components or connectors (for example by replacing
            the failure component by adding another component with the same functionality).
            Another solution is that the platform can recover the warning, by
            reconfiguring the interaction among components of the architecture
            (for example,
            isolation of failure components by reorienting their connections).</p>
        <h4>Detection
              Phase of the Monitoring System</h4>
        <ol type="a">
          <li>The monitoring system in the case
                of state : The basic information is collected (by sampling) by
            reactive layer (see Figure 3.b) and
                    sent to the intermediate agent (see Figure 3.c). The intermediate
                    agent
                    decrypts information by identifying the origin of the message,
                    the type of the information and the value of test (see Figure
              3.d). The
                    higher agent receives the message from the intermediate agent
              and takes decision according to the nature of the message. If the
            value of the
                    test respects the constraint, the state of the components
            will be saved in the state of the architecture knowledge base. If
              the
                    value
                    of the
                    test does not respect the constraint, the higher agent reacts
              by using its knowledge base (planning).</li>
          <li> The monitoring system in
                the case of event: The component emits an event to reactive agent
              (see Figure 3.b). The intermediate
                      agent
                      receives this information; identifies the sender agent
            (by its knowledge base of reactive agents) and the name of the exception
                      (see Figure
                      3.c). Then, it sends the message to higher agent. The higher
                      agent decrypts the message of its intermediate agent and
            starts
                      research
                      procedure in order to identify the exception and find the
            solution in its knowledge base (planning) (see Figure 3.d).</li>
        </ol>
        <p align="center"><img src="images/fig3.gif" width="611" height="581"></p>

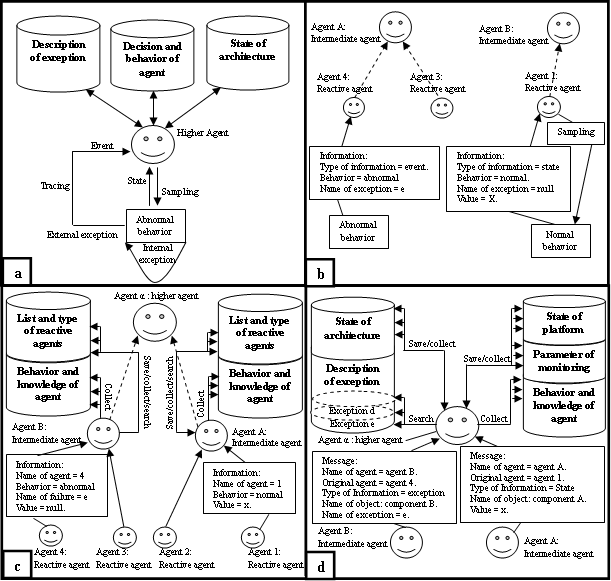

        <p align="center">          Figure 3: Detection phase of monitoring system</p>
        <h4>          Treatment Phase of the Monitoring System</h4>
        <p>The monitoring system
            in the case of state and event: The higher agent reacts to the overtaking
            of constraints or events by using its planning
            in order to recover the fault or respect constraints (see Figure
          4.a). The platform can recover the fault generated from the architecture
            by identifying the exception. The quality attributes are maintained
            by respecting the constraints (performance constraint, availability
            constraint, etc.) imposed by the user, so, the role of the platform
            is to monitor the architecture in order to verify the respect of
          the
            all constraints.</p>
        <p>In the two cases (the case of state and event), the
            strategy is the same one, the higher agent takes decisions based
          on its knowledge
              base, organizes actions and sends the planning to its intermediate
              agents.
              The intermediate agent uses the cooperation of reactive agents
          to solve the problem and act on the architecture (see Figure 4.b).
          The
              treatment
              process uses tow types of plans, the first plan consists to reconfigure
              the architecture connections for finding temporary solution for
          the fault (disabled component or connector), and the second plan recovers
              errors by addition or changing disabled components or connectors.</p>                <p align="center"><img src="images/fig4.gif" width="611" height="298"></p>

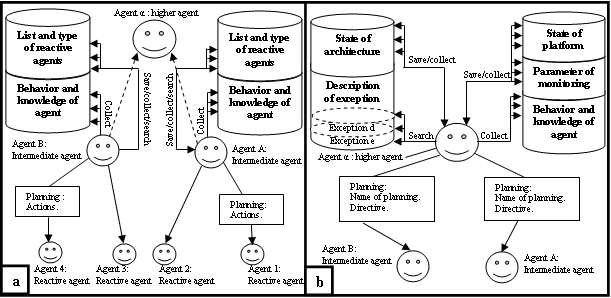

              <div align="center">Figure 4: Treatment phase of monitoring system        </div>        <h3>          4	IMPLEMENTATION OF THE PLATFORM ON CLIENT/SERVER ARCHITECTURE</h3>
        <h4>          The Problem</h4>
        <p>We realize our application by developing a software
          for a company specialized in hydrocarbon industry, it intervene in
          different building
            sites in hostile and distant places. This little company develops
            its activity and engages a lot of human resources, so the leaders
            require to manage and estimate the resources needed and the scheduling
            of the projects of the different sites. This information must be
            exchange between sites and the direction. The developed software
            contains the personnel files, the state on the projects (calculation
            of number of worked hours, days worked&#8230;etc.). The principal
            requirements of the customer are performance and availability. We
            have used our platform to test and maintain these quality attributes,
            materialized in different scenarios.</p>
        <h4>            The Overview of the Software Architecture</h4>
        <p>We used to develop
            this software C++ and Access database, we dispose of two servers,
          principal server (server A) and second server (server
                B) and the dispatcher of connections (see Figure 5). The clients
                can connect to the data base by internal network (100 Mo/s network
                card) and via internet (56 Kb/s modem). The client can consult
              the personnel data base and perform the calculation on the server
              application.</p>
        <p>In our application, the principal requirements of users
            in term of software quality are availability and performance. By
          applying the
                  ATAM method of evaluation, we develop some scenarios. We present
                  two of these scenarios. The first will be used to test and
          evaluate the performance at dynamical mode, the second will be focused
                on the availability of the architecture. We will show how the
          platform
                  intervene to maintain these quality attributes.</p>
        <p align="center"><img src="images/fig5.gif" width="326" height="144"></p>

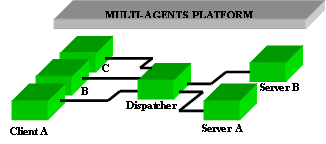

        <p align="center">Figure 5: General functional view of architecture</p>
        <h4>            The Performance Scenario</h4>
        <p>            The first scenario is about the performance. The performance is the
                ability of a system to allocate its computational resources,
              to request for services in a manner that will satisfy timing requirements.
              The
                system must do so in the presence of competing requests (see
              Figure
                6). Stimuli trigger a computation to be initiated. For the performance,
                the stimuli include external events such us message or user key
              strokes, internal events based on state changes, and click interrupts.
              The
                performance architectural decisions include various types of
              resources consumption. The resource types comprise for example:
              processors,
                networks, buses and memory. The resource arbitration, also know
              as scheduling, concerns policies for determining which of asset
              of pending
                resource requests (from entities such as processes and messages)
                will be served. The resource allocation concerns policies for
              moving resources demands in a manner that will achieve better throughput
                or minimize the number of necessary resources. The resources
              consumption
                is measured in terms such as execution time on processors or
              bandwidth for networks. The response is characterized by measurable
              quantities
                such as latency, throughput, and precedence.</p>        <p align="center"><img src="images/fig6.gif" width="623" height="200"> </p>

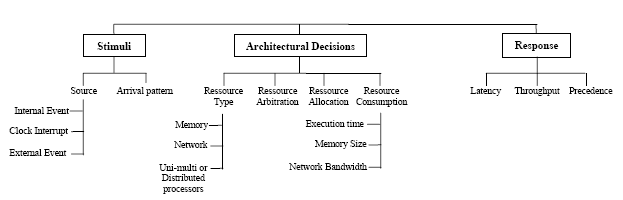

                <p align="center">Figure 6: Performance characterization</p>        <p>We use external stimuli to evaluate the performance of the software,
          the evaluator can test the performance of the architecture via the
          platform by using its monitoring system. The reactive agents execute
          a sampling on the critical software and hardware components to collect
          information about the architecture. The constructed scenario monitors
          the resources consumption of the software like memory size, the execution
          time. The metrics evaluations give different values to help the architect
          to show the performance of its architectural decisions. The platform
          monitors each software and hardware component implicated in the performance
          of the architecture, all the information collected (by reactive agents)
          and transmitted (by intermediate agents) to the higher agents will
          be saved in its knowledge base. these information of test can presented
          by graphics (see Figure 7).</p>
                <p>                  In addition the evaluator, can make another
                  functionality of the monitoring which consist to parameter
                  the limit
                      of the performance in the decisional
            part of the platform, so, the platform can react to performance state
            of components if the values is over the constraints by using modifiability
            of the architecture (for example, if principal server is over its
                      CPU charge, the platform can reorient task to the second
                  server)</p>
                <p align="center"><img src="images/fig7.gif" width="300" height="168"></p>

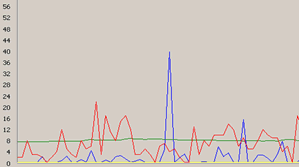

                <p align="center">Figure 7: The monitoring of performance of the server
                    A</p>        <h4>The Availability Scenario</h4>
        <p>The important stimuli in an availability
            characterization are faults, in both hardware and software components
            (see Figure 8). Such faults
              are the events that cause systems to fail. We measure the system
              response by looking at measures such as reliability (the probability
              of not failing over period of time), mean time failure, and steady
              state availability. </p>
        <p align="center"><img src="images/fig8.gif" width="581" height="171"></p>

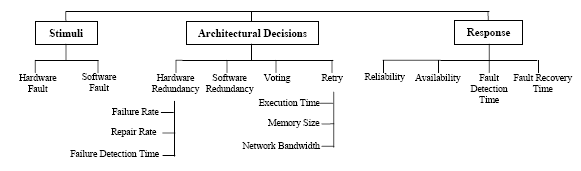

        <p align="center"> Figure 8: Availability characterization</p>        <p>In our scenario, we suppose that the principal server breakdown (stimuli
          are hardware faults), the client must continue to work on the software
          without interruption of its functionalities and services, the detection
          and the treatment processes of monitoring system follow these steps:</p>
        <p>          <strong>Step 1</strong>: The reactive agents of the platform monitor the architecture,
            precisely, the servers and the dispatcher. The reactive agents collect
            the information from the server A and send it to the intermediate
              agent, the information contain the abnormal of the behavior (see
              Figure 9.a).</p>
        <p><strong>Step 2</strong>: The state of the server A is analyzed by the intermediate
          agent, and this agent detects the exception and the name of the server
          failure (breakdown) and sends a message to the superior agent (see
          Figure 9.b). The superior agent decrypts the message and consults its
          knowledge base, so, it creates the planning in order to recover fault
          (see Figure 9.c). The platform reacts automatically when the breakdown
          of server A is detected.</p>
        <p><strong>Step 3</strong>: The planning of higher agent sends
            to the intermediate agent. The intermediate agent uses reactive agents
            in cooperative mode to
            achieve its goals. A reactive agent recovers the clients of breakdown
            server and reorients the connections to the second server (server
          B), another agent disables the connector between dispatcher and server
            A, other reactive agent parameters the dispatcher to do a unique
          connection
            to the server B. Also, the client can continue to use database without
            problem, the platform find solution in order to maintain the availability
            of software architecture.</p>
        <p align="center"><img src="images/fig9.gif" width="443" height="257"> </p>

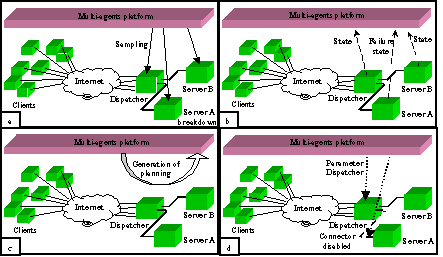

        <p align="center">Figure 9: Monitoring system of the platform on Client/Server
          architecture.</p>        <h3>5	STRENGTHS OF OUR APPROACH</h3>
          <ul>
            <li>The platform takes advantage of multi-agents system like
              flexibility, parallelism, high level of interaction between agents.</li>
            <li> Autonomous monitoring of an architecture.</li>
            <li> Utilization of intelligent agents for reasoning part
              of the platform.</li>
            <li> Capability to test several qualities at the same time
              and observe the interaction and the influence of these quality
              attributes each other.</li>
            <li> The platform manages and maintains the quality attributes
              of the architecture.</li>
            <li> The platform gives metrics results of the quality tested,
              represented by graph or values.</li>
            <li> Dynamic reconfiguration of the architecture.</li>
            <li> Overview of the architecture and its configuration.</li>
            <li> The platform can produce the report of different states
              of components and the modifiability of the architecture during
              the application. </li>
            <li> Possibility to increase the ability of the platform,
              by adding new functionality in its knowledge base.</li>
            <li> Portability of the multi-agents system.</li>
          </ul>          <h3>6	CONCLUSION </h3>
        <p>The right architecture is the first step to success.
          The wrong architecture will lead to calamity. We can identify causal
          connections between
            design decisions made in the architecture and the qualities/properties
            that
            result downstream in the system. This means that it is possible to
            evaluate an architecture, to analyze architectural decisions. The
            architecture then becomes the basis of systematic development and
            evolution of software/hardware
            systems. It is clear that a new architecture that permits the dynamism
            reconfiguration while ensuring the use of software in multiple contexts
            and the ability of software to support evolution and changing requirements
            in various contexts are needed. This paper presents a new platform
            based multi-agents which monitors the global architecture of a system
            and manages its provided quality attributes (in our case, performance
            and availability). It will achieve its functional and non functional
            requirements and evaluate and manage changes in such architecture
            dynamically at the execution time. In this paper we have developed
            our generic
            platform and we have applied and implemented it on the Client/Server
            architecture. We have showed by some scenarios the dynamic reconfigurations
            for the improvement of the quality attributes. Our approach can be
            extended to deal with other architectural &#8220;non-functional&#8221; quality
            attributes in the context of developing complex and reliable systems,
            and to support major method of evaluation based-scenarios.</p>
        <h3>          REFERENCES</h3>
        <p>[1] Shaw, M., Garlan, D., Software Architecture.
          Perspectives on Emerging Discipline, Prentice-Hall, Inc. Upper Saddle
          River, New
            Jersey, 1996.</p>
        <p>[2] Dias, M.S., and Richardson, D.J., The role of Event
          Description in Description in Architecting Dependable Systems. In proceeding
            of WADS: Workshop on Architecting Dependable Systems. Orlando, USA
            25
            May 2002.</p>
        <p>[3] Shroeder, B., On-line monitoring, IEEE Computer, vol.
          28, n. 6, June 1995. pp. 72-77.</p>
        <p>[4]	Snodgrass, R., &#8220;A Relation
          approach to monitoring complex systems&#8221;, ACM Trans. Computer
          Systems, vol. 6, n. 2, May 1988, pp. 156-196. </p>
        <p>[5] Paul Clements, Rick
          Kazman and Mark Klein, Evaluating Software Architectures: Method and
          Case Studies, Addision Wesley, 2002.</p>
        <p>[6] Rick Kazman, Len Bass, Gregory
          Abowd, and Mike Webb, SAAM: A Method for Analyzing the Properties Software
          Architecture, Proceeding
            of the
            16th International Conference on Software Engineering, Sorrento,
            Italy, May 1994, pp. 81-90.</p>
        <p>[7]	ATAM: Method for architecture evaluation:
          ATAM &#8211; Architecture
            Tradde-off Analysis Method report.</p>
        <p>[8] Lassing, Nico, Ph.D. Thesis,
            architecture-level Modifiability analysis, Ph.D. thesis, Free University
            Amsterdam, February 2002.</p>
        <p>[9] Bengtsson, PerOlof, Ph.D. Thesis, architecture
            level modifiability analysis, Department of software Engineering
          and Computer Science,
                Belkinge Institute of technology, Sweden 2002.</p>
        <p>[10] Stephan Kurpjuweit,
            Ph.D. Thesis. A family of tools to integrate software architecture
            analysis and design. Final draft version,
                  to be published 2002</p>
        <p>[11] R. Kazman, G. Abowd, L. Bass, P. Clement,
            Scenario-based Analysis of Software Architecture, IEEE Software 13,
            6 (November
                    1996):
                    47-55.</p>
        <p>[12] Len Bass, Paul Clements, Rick Kazman, Linda Northrop,
                      Amy Zaremski, Recommended Best Indistrial Pratice for Software
                      Architecture
                      Evaluation,
                      Technical Report, Software Engineering Institute, January
                      1997</p>
        <p>&nbsp;</p>
        <h4>About the authors</h4>
		 <table border="0" cellpadding="0" cellspacing="0">
          <tr>
            <td><img src="images/amar.jpg" width="103" height="104"><br>              <br> </td>
            <td><img src="/images/graph/line10h.gif" alt="space" width="10" height="10" border="0"></td>
            <td><p class="text"><strong>Amar Ramdane-Cherif</strong> received his Ph.D. degree from Pierre
                and Marie university of Paris in 1998 in neural networks and
                IA optimization for robotic applications. Since 2000, he has
                been associate Professor in the laboratory PRISM, University
                of Versailles, Saint-Quentin en Yvelines, France. His main current
                research interests include: Software architecture and formal
                specification, dynamic architecture, architectural quality attributes,
              architectural styles and design patterns, E-mail: <a href="mailto:rca@prism.uvsq.fr">mailto:rca@prism.uvsq.fr</a><br>
              <br>
            </p></td>
          </tr>
          <tr>
            <td><img src="images/samir.jpg" width="90" height="113"><br>
            <br></td>
            <td>&nbsp;</td>
            <td> <p class="text"><strong>Samir Benarif</strong> received his BS degree at the University of Science and Technology
    Houari Boumediene (Algiers, Algeria) in electrical engineering and his MS degree
    at the university of Versailles, Saint-Quentin en Yvelines, France, respectively
    in 2000 and 2002. Since 2003 he has been studying for his Ph.D. at PRISM laboratory,
    University of Versailles, France. His investigations and field interests concern,
    dynamic architecture, architectural quality attributes, architectural styles
    and design patterns.<br>
    <br>
            </p></td>
          </tr>
          <tr>
            <td><img src="images/nicole.jpg" width="101" height="99"><br>
            <br></td>
            <td>&nbsp;</td>
            <td><p class="text"><strong>Nicole L&eacute;vy</strong> is a professor at the University of Versailles,
                Saint-Quentin en Yvelines, France. She holds a doctoral degree
                from the Nancy University. She is Director of the ISTY and a research
                staff of the PRISM Laboratory, Versailles, where she coordinates
                the SFAL (Sp&eacute;cification Formelle et Architecture Logicielle)
                research group. Her main research interests are formal and semiformal
                development methods, formalization of styles and architectural
            patterns.<br>
            <br>
            </p></td>
          </tr>
        </table>
		 <hr noshade width="80%" size="1">
        <p>Cite this article as follows: Amar Ramdane-Cherif, Samir Benarif,
          Nicole Levy: &#8220;The Platform Based-Agents to Test and Evaluate
          Software Architecture&#8221;, in <em>Journal of Object Technology</em>, vol.
        4, no. 1, January-February 2005, pp. 67-82. <a href="http://www.jot.fm/issues/issue_2005_01/article1">http://www.jot.fm/issues/issue_2005_01/article1</a></p>
        <hr>
		<table border="0" align="right" cellpadding="5" cellspacing="0">
          <tr>
            <td> <p class="text"><a href="../column5">Previous article</a></p></td>
            <td align="right"> <p class="text"><a href="../article2">Next
                article</a></p></td>
          </tr>
        </table></td>
    </tr>
  </table>
</div>
<!--#include virtual="/include/wide_footer.html" -->
