A Pedagogical Experiment: Introducing Students to a First GUI Project Using C#/.NET Richard Wiener, Editor-in-Chief, JOT, Associate Professor, Department of Computer Science, University of Colorado at Colorado Springs

COLUMN PDF Version

1 INTRODUCTION

It can be difficult to design a first GUI-based student project that is reasonably challenging, realistic, fun and most importantly instructive. Such a project should deal with a problem that students can relate to in a problem domain that they all can easily understand.

My experience has shown that to be effective such a first project should involve a reasonable amount of “hand-holding” in which students are directed to perform a series of steps that introduces them to the construction tools and steps that help ensure their success and provides motivation and excitement about future projects that they will be expected to work on.

The project to be described in this paper is being presented to a group of 26 students in a course that deals with modern software development using C#/.NET(and using a book soon to be published with the same title “Modern Software Development Using C#/.NET” by Richard Wiener, 711 pages, Thompson Course Technology, April, 2006. The students are new to the C# language and the .NET framework but have prior experience with Java as their first programming language, studied in CS 1 and CS 2. Most of the students have little or no experience constructing a GUI application.

The technical issues that are dealt with in this first GUI project include: How to construct a GUI that contains textbox and label components that are programmatically controlled as well as the use of a powerful standard calendar component. Event-handling is used and illustrated for the calendar component, an “Enter” key entry in a textbox component, and a form-closing handler. Another major issue illustrated is the use of a generic collection class to hold the application data coupled with object persistence that enables the application to open and retrieve the application data and save this data before closing the application.

The application is specified as follows. We wish to construct a GUI application that allows a user to specify the number of calories expended using an exercise machine at some health club for any given selected date using a standard .NET calendar component. The GUI should show the number of calories expended for the date selected (current date by default) as well as the previous six days from either the current date or the date selected as well as the total number of calories for the seven days shown. The collection object used to store the historical data should be automatically loaded when the application begins and automatically saved when the application ends. A user interface is shown below that meets the above specifications. Each student is free to modify the layout of this interface, if desired, but not change the set of components that are used. When another date is selected, all the data should be automatically updated including the labels on top of the seven non-editable output boxes. This is shown in the second screen shot below where February 5th is selected.

Some students might wish to layout the non-editable output text boxes that contain the current and past six days of data vertically rather than horizontally. Students are encouraged to experiment with different layouts using the one editable input text box and the eight non-editable output text boxes, the other labels and the calendar component.

This paper will be used by the students to assist them in constructing their first GUI project application. A significant amount of step-by-step help will be provided in the details to follow in the hopes that this will motivate experimentation on the part of the students and provide the foundation for future GUI project development in which students will be on their own. Feedback from students working on this project will be solicited to determine whether this approach to introducing GUI development in C#/.NET is effective or should be abandoned.

The remaining portion of this paper is aimed at students developing their first non-trivial GUI application and also educators and other readers who wish to eavesdrop on the details being provided for the students as they engage in their first C#/.NET GUI project.

2 LET’S DO IT USING VISUAL STUDIO AND SOME C# PROGRAMMING

The first step is to create a GUI project using Visual Studio (Professional Edition used for this paper but the Express Edition works just as well).
The screen shot below shows how to get started. The name of the project, CaloriesExpended, will become the name of the executable file (in the \bin subdirectory). Visual Studio will create a subdirectory, CaloriesExpended\, under c:\CSharpWork\ using the entries shown below.

The blank design form shown below will be created by Visual Studio because a Windows Application was chosen. If you select View/Code menu item, the following partial class will be displayed (code generated by Visual Studio):

The name of the Form component (Form1) should be changed to CaloriesUI using the Properties window as follows:

The form is expanded using the mouse. Each student is free to size the form as desired. The size of the form created here is shown as 579 (width) x 398 (height) pixels.

Next the StartPosition property and Text property are modified as shown below.

Next using the Toolbox and dropping and dragging standard visual components onto the CaloriesUI form, the following user interface is produced:

Each visual component should be given a meaningful name. The following table indicates the names used for the components shown above.

It is highly recommended that students working on this project use the same names for the visual components as those given in the table above in order that the code segments to be discussed below make sense.

It is important to provide meaningful names for the seven Label components because their Text property will be set each time a date is selected by the user or the default current date is used. Each of the output text boxes shows the calories expended for the date given by the label above the output text box.

The ReadOnly property of each of the output text boxes is set to true (from their default of false). Using the visual designer, all the output text boxes can be selected at once and then their ReadOnly property set to true.

One of the most important features of a class is its fields. They represent the information model for the objects that are constructed from the class. There are three fields that are defined for this class. They are shown below:

The field date, of .NET type DateTime, captures the current year, month and day. It is initialized at its point of declaration to the current date using the Now property. The field selectedDate, also of type DateTime, is returned by the MonthCalendar component when the user selects a new date. Finally the field data, of type Dictionary<DateTime, int>, uses the generic Dictionary class with keys declared to be of type DateTime and values of type int (System.Int32). Each entry in data contains a key/value pair with the key given by a DateTime object and the value by the number of calories expended (represented by an int). This collection of key/value pairs stored in data will be saved to disk when the application exits and the form is closed and loaded from disk when the application starts.

Please note the two “using” namespaces that are added (System.IO and System.Runtime.Serialization.Formatters.Binary).

Portions of the constructor, CaloriesUI show how to use the DateTime class in the context of this application. Part of its implementation is:

In this constructor many useful technical details are revealed. The properties Month, Day and Year are shown for a DateTime object. The Subtract query is shown in action along with an instance of the .NET class TimeSpan. The use of a FileStream and BinaryFormatter and the Deserialize method is used to retrieve a previously stored persistent object from a file “Calorie.data” that is stored in the application ’s bin\ subdirectory (by default) is shown.

The segment of code,

shows how the Dictionary object data is tested to see whether it contains the key newDate. If so the Text property of the output TextBox oneDay is assigned to "" + data[newDate], if not the Text property is assigned to an empty string.

An event handler for the MonthCalendar component is created by selecting the monthCalendar component, selecting the event-handling properties using the lightning bolt tab and double clicking in the DateSelected row to produce the handler shown below:

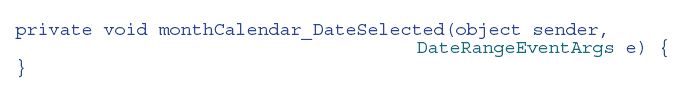

The skeletal structure of the monthCalendar_DateSelected handler is automatically generated by Visual Studio as follows:

Whenever the user selects a new date using the MonthCalendar component, this event handler is triggered. Portions of this event handler are presented below:

The private method ComputeAndFillAllOutputBoxes() uses the field data as well as the selectedDate field computed from the parameter, e, of type DateRangeEventArgs, as shown above, to populate all the output text boxes with information. Each student working on this project must write the complete implementation of this important method.

An event handler that is triggered when the user types the “Enter” key after providing input into the TextBox beneath the label “Calories Expended on Selected Date” must be provided.

After selecting this input Textbox component and clicking the lightning bolt tab (for event handlers), the KeyDown handler is double-clicked producing the handler shown below:

The skeletal structure of the KeyDown handler is automatically created by Visual Studio.

The completed event-handler is shown in its entirety below:

The KeyEventArgs parameter, e, and its KeyCode property is used to determine whether the value typed by the user equals Keys.Enter. If so, the input entered by the user is converted to an int and used to assign to the dictionary data using,

The final event handler is associated with closing the form when the user clicks the “x” in the upper-right portion of the window containing the user interface.

If the Form object is selected and the tab moved again to the lightning bolt icon (event-handling properties), the FormClosing property must be double-clicked producing the handler shown below.

The complete event-handler that shows how to write the data object (of type Dictionary<DateTime, int> to persistent storage is given.

3 NOW DO IT

It is now the responsibility of students who have been assigned the task of implementing this application to do it.

In the next issue of JOT I will report how my students did on this first GUI project and whether the pedagogical approach suggested here has merit.

I welcome comments from other educators and students working on this project (rsw@runbox.com).
