Object-Oriented Design Patterns for Detailed
Design
W. Al-Ahmad, NYIT - Bahrain Campus, School
of Engineering and Technology, Manama, Bahrain
|
 |
ARTICLE
PDF Version |
Abstract
This paper discusses the use of design patterns during the transition
phase from analysis to design of object-oriented systems. Pattern
mining, which is the process of finding and documenting design patterns,
usually takes place during or after the development of a software
system. This paper introduces several new design patterns that were
discovered through the experience of teaching object-oriented analysis
and design in both industry and academia. These are low level design
patterns that can be used in almost every application. Finally, a
tool will be proposed to automate the application of these patterns
when creating a detailed design model.
1 INTRODUCTION
There is increasing pressure on software developers to produce quality
software in as short a time as possible. This necessitates the reuse
of previously developed or commercially available software elements
to expedite the development process. The most common form of reuse
is the reuse of code in a fine-grain manner such as objects in the
object-oriented paradigm or a large-grain manner such as components
in the component-oriented paradigm. With the advent of design patterns
[Gamm95] and the pattern-oriented software development methodologies,
techniques, and principles [Busc01, Fowl97, Lee03, Shal02, Yaco04],
the reuse of designs became possible. Reuse of designs is not as popular
as reuse of code because the pattern-oriented approach for software
development is still in its infancy. Moreover, constructing generic
designs to be later instantiated is a complex issue. There is still
a long way to go before pattern-oriented design becomes mainstream
with fully-fledged methodologies, tools, and principles.
Usually, the software development life cycle includes the phases
of analysis and design regardless of the methodology used (waterfall,
iterative, etc.) in the development of the software. This paper follows
the Rational Unified Process (RUP) [Rati00] for software development
and uses its terminology. RUP is an object-oriented software engineering
process that is iterative and incremental. In RUP, analysis and design
is one discipline that aims at transforming the requirements of the
system into a design of the system to be built and to adapt the design
to match the implementation environment [Rati00]. Understanding and
documenting the requirements of the system is the purpose of the
requirements
discipline, which precedes the analysis and design activities.
Although the line between analysis and design is blurred, there are
activities that belong to analysis and other activities that belong
to design. Identifying key abstractions of the problem domain and
creating a conceptual model are analysis activities, while refining
the conceptual
(analysis) model by adding more information to it (adding attributes,
mapping class responsibility to operations, etc.) are design activities.
Refining association multiplicity, adding extra operations related
to nonfunctional requirements, optimizing the design model to easily
map it to the target language are required to create a detailed
design. The focus of this paper is on mining design patterns that recur
during
these activities. Whereas the majority of the design patterns in
the literature focus on high level process activities [Busc01,
Gamm95, Larm02, Shal02], the patterns introduced in this paper are
low level
patterns, focusing on low level design activities. In fact, the
patterns introduced in this article can be used in detailing the high-level
design patterns.
This paper is structured as follows: section 2 briefly explains
the problem statement and introduces a conceptual model to model
the
problem domain. This conceptual model will form the context of
the discovered
patterns. Section 3 introduces the concept of design patterns
and their importance in the development of good design models. Section
4 discusses
the new patterns and presents a catalog of these patterns. Section
5 discusses a tool support for automating the incorporation of
these patterns into a detailed design model. Finally, section
6
introduces
some conclusions and glimpses about future work.
2 CASE STUDY: STUDENT REGISTRATION SYSTEM
This paper uses an on-going example to create a context for the
different patterns that will be mined from it. This example
is related to the
development of a student registration system for a university
[Rati00]. To better understand the design models that will
be presented in
this paper, the relevant part of the problem statement is
stated below:
A student registration system is needed that will allow students
to register for courses and view report cards. Professors
will be able
to access the system to sign up to teach courses as well
as record grades. The system will allow students to select
four
course
offerings for the coming semester. In addition, each student
will indicate
two alternative choices in case the student cannot be assigned
to a primary
selection. For each semester, there is a period of time
that students can change their schedule by adding or dropping
courses [Quat00].
It is not the objective of this paper to explain the different
activities involved to produce the analysis model shown
in Figure 1. At the
end of the Use Case Analysis activity in RUP, a VOP (View
of Participating Classes) or a conceptual model is produced.
The
VOP is basically
a
UML class diagram. In Figure 1, the VOP is limited to
the key abstractions in the problem domain (entity classes
in RUP terminology);
it is
just a subset of the actual conceptual model produced
for the problem at
hand. The control and boundary classes are not shown
in the diagram since the patterns are independent of the type
of
class involved.
Conceptual models and design models should not be developed
independently. In RUP, the analysis model evolves to
become the design model;
the two models are not independent or separate. Object-oriented
analysis
is supposed to model the problem space; object-oriented
design then models the solution space. In the current
state of the
art, the transition
from a conceptual model into a design model is done
manually. Typically, people first develop a conceptual model, and
then start developing
a design model from scratch without a proper binding
between both models. In fact, the analysis phase is
often skipped
in practice,
or only a
brief study of the problem domain is carried out before
turning to the design. This is an inappropriate approach
to software
development. This way of working does not address the
evolutionary nature of
the
software life-cycle because of problems in traceability
between the two phases.
Figure 1: Partial Analysis Model for the Registration
System 3 PATTERN-ORIENTED DESIGN
Before we go any further, it is imperative to first define the concept
of a design pattern. The GoF book [Gamm95] defines design patterns
as "descriptions of communicating objects and classes that are
customized to solve a general design problem in a particular context." A
design pattern names, abstracts, and identifies the key aspects of
a common design structure that makes it useful for creating a reusable
object-oriented design. The design pattern identifies the participating
classes and their instances, their roles and collaborations, and
the distribution of responsibilities. Each design pattern focuses
on a particular object-oriented design problem or issue. It describes
when the pattern applies, whether or not it can be applied in view
of other design constraints, and the consequences and trade-offs
of its use. Since we must eventually implement our designs, a design
pattern also provides a sample code to illustrate an implementation.
The goal of patterns within the software community is to create a
body of literature to help software developers resolve recurring
problems encountered throughout all aspects of software development.
Patterns for software development are one of the latest emerging
approaches for software design. Recent work [Yaco04] has recognized
the importance
of object-oriented design patterns and introduced a methodology for
software development with patterns. This paper views object-oriented
design as a pattern-based software process in which different types
of patterns are successively applied to software artifacts. Each pattern
captures a solution to a common object-oriented design problem that
is imposed by a particular structure.
In the literature, there are different description formats for documenting
design patterns [Gamm95, Larm02, Shal02]. The description of a design
pattern might include items such as the name, problem addressed, context
or applicability, forces, solution, structure, etc. In this paper,
the description will be limited to the 4 basic elements: context-problem-solution-structure:
- Context: the preconditions under which the problem and
its solution seem to recur, and for which the solution is desirable.
It can be thought
of as the initial design before the pattern is applied to it. Context
refers to a recurring set of situations in which a pattern applies.
The context of the patterns described in this paper is clear from
the analysis model given in Figure 1 and therefore will not be included
in the pattern description.
- Problem: a statement of the problem which describes its
intent: the goals and objectives it wants to reach within the given
context. Often
the problem includes the applicability of the pattern. It could
be phrased as a question.
- Solution: static relationships and dynamic rules describing
how to realize the desired outcome, i.e., solve the problem. Sometimes
possible
variants or specializations of the solution are also described.
- Structure: describes the static structure of the pattern
in terms of classes and their associations. It is usually shown using
a UML class
diagram.
4 THE CATALOG OF DESIGN PATTERNS
This section presents some patterns that capture solutions to problems
that frequently occur (within structures, i.e. relations that exhibit
the property of existential dependency and constraints of multiplicity)
during software design. These patterns may specify a baseline for
developing a design pattern language for detailed design.
The design model of every software application has to deal with
associations among classes. An association is a structural
relationship that specifies
that objects of one class are connected to objects of another
class. An association can be decorated with multiplicity, role names,
and an association name. The multiplicity determines the minimum
and
maximum number of objects of one class that can be linked with
one object of
the other class. Each end of an association has one multiplicity.
It has also a role name (optional) which determines the role
that
a class
plays in the association. During detailed design, an association
may be refined into a dependency, an aggregation, or a composition
relationship.
In this section, the author will identify a few patterns related
to the refinement of associations and their decorations such
as multiplicity refinement. The quest for the patterns will result
in discovering
a
few low level structural and behavioral patterns.
Structural patterns address issues concerned with the way in
which classes are organized. To describe such patterns, object-oriented
constructs and mechanisms such as inheritance, composition,
aggregation, etc.
are usually used. An example of such patterns is the Composite
Pattern [Benn02]. Behavioral patterns, on the other hand, address
the problems
that arise when mapping responsibilities to operations in classes
and when designing algorithms for the operation implementation.
They usually
describe how objects communicate to perform the system functionality.
An example of such patterns is the State Pattern [Benn02].
Multiplicity Refiner
One-to-many relationships are very common in object-oriented
models. In the model shown in Figure 1, many classes are
associated with
other classes with multiplicity 0 .. *. This means that
zero or more objects
of one class are associated with one object of the other
class participating in the same relationship. For example, a
professor may teach one
or more course sections and no sections at all if he or
she is on sabbatical.
This multiplicity needs to be refined during the class
design activity of RUP. This requires the introduction of a container
class with
operations to add and remove objects from the container.
It
might have operations
to check the number of objects in the container, and maybe
iterator operations. The Multiplicity Refiner pattern will
help achieve
this task.
Problem:
How to refine a one-to-many relationship between two classes during
class design?
Solution:
The solution of this problem is obtained by introducing a container
class to store the objects of the class that must be linked with
the object of the other class. The container couples a participating
object
with an unlimited number of refined objects. The container class
should add operations to retrieve the information needed from
the container
object.
Structure:
Figure 2 illustrates the structure of this pattern involving
class A whose objects are associated with an unlimited number
of objects
of class B. The container class BList is added to store the
objects of class B which are associated with one object of class
A.
Figure 2: Structure of the Multiplicity Refiner Pattern. Example:
Given the following portion of the model shown in Figure 1:
Applying the Multiplicity pattern produces the model in Figure 3:
Figure 3: Application of the Multiplicity Refiner Pattern. Genericity
Refiner
Usually common container classes, such as List, are available from
existing libraries. These classes can be used and should not be modeled.
The container class of the Multiplicity Refiner can instantiate a
parameterized (generic) class if the implementation language provides
generic container
classes.
Problem:
How can a container class be mapped to a standard generic class in
the implementation language during class design?
Solution:
Instantiate the standard container class using the refined class
(whose objects must be contained) as the parameter.
Structure:
Figure 4 illustrates the structure of this pattern involving
class List which is assumed to be a standard container
class provided by
the target language. The objects contained in the container
class are objects from class
B.
Example:
Given the model shown in Figure 3, the application of
the Genericity Refiner pattern will produce the model
in Figure 5.
Figure 5: Application of the Genericity Refiner Pattern.
Optionality Refiner
In addition to showing the number of objects participating in a relationship,
multiplicity answers the question whether or not the relationship
is optional. This is usually indicated by using the multiplicity of
0..1.
Problem:
How can optional relationships given by the 0..1 multiplicity be refined
during class design?
Solution:
Add the following operations to manipulate an optional relationship:
- addRefinedObject: to attach an object of the refined class to
the object of the other participating class.
- removeRefinedObject: to detach the refined object from the other
participating object.
- isRefinedObjectAssigned: to check if a refined object is attached
to the other participating object.
Structure:
Figure 6 illustrates the structure of this pattern.
Figure 6: Structure of the Optionality Refiner Pattern.
Example:
Applying the Optionality Refiner pattern to the following association
would produce the model in Figure 7.
Figure 7: Application of the Optionality Refiner Pattern.
Association Class Refiner
When an attribute belongs to the association rather than to any of
the two participating classes, an association class is added to include
such an attribute. Figure 8 illustrates this by adding the association
class PrimaryScheduleOfferingInfo
to include the grade attribute.
Figure 8: Association Class ScheduleOfferingInfo. Problem:
How can an association class be refined during class design?
Solution:
Insert the association class between the two participating classes
and switch multiplicities.
Structure:
Figure 9 illustrates the structure of this pattern involving
the asscoiation class C with an attribute associationAttr
which belongs to the association
between class A and class B.
Figure 9: Structure of the Association Class Refiner Pattern. Example:
Applying the Association Class Refiner pattern to the situation depicted

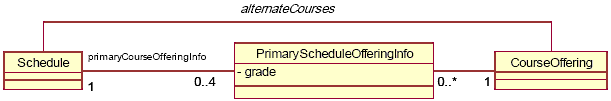

in Figure 8 would produce the model in Figure 10.
Figure 10: Application of the Association Class Refiner Pattern.
Dependency Selector
Dependency is a relationship between two model elements in which a
change to one element (the supplier) may affect or supply information
needed by the other element (the client) [Rumb05]. During analysis,
many of the
relationships between classes ar assumed to be structural relationships
(associations). During detailed design, it should be decided what
type of relationship is required; i.e. a structural or non-structural
(dependency) relationship. A dependency relationship is the cheapest
to maintain, easiest
to utilize and benefits from the principle of encapsulation. Therefore,
an association needs to be replaced by a dependency whenever possible.
Usually, this step should be done after the define operations and
methods step of class design in RUP, where the signature of each
operation
is fully
specified and the algorithms for implementing the operations are
determined. All non-field (local, global, parameter) visible associations
should be
replaced by dependency. One type of dependency relationships is
addressed by the current pattern.
Problem:
When can an association be replaced by a dependency during class
design?
Solution:
One case that is clear is between a container class and a class
whose objects are supposed to be contained.
Structure:
Figure 11 illustrates the structure of this pattern.
Figure 11: Structure of the Dependency Selector Pattern.
Example:
Applying the Dependency Refiner pattern to the situation depicted in
Figure 5 would produce the model in Figure 12.
Figure 12: Application of the Dependency Selector Pattern.
Navigability Refiner
The navigability property on an association end indicates that it is
possible to navigate from one class to the target class using the
association. An arrowhead on the association end is used to show
the navigable association
direction. During analysis, the arrowheads are suppressed, meaning
that associations are navigable in both directions. However, during
class design,
navigability should be reduced to one-way whenever it is possible
because two-way associations are more expensive to implement. Representing
a relationship
between objects should be explicit, i.e., defining direction of
navigation. It is usually not an easy task to determine the direction
of navigability.
However, it is clear in some cases such as a whole-part relationship,
where the navigability is usually from the whole to the part. Another
case is
addressed by the current pattern.
Problem:
How can association navigability be determined during class design?
Solution:
One case is a one-to-many association, where the navigability is
from the class representing the one to the class representing
the many.
Structure:
Figure 13 illustrates the structure of this pattern.
Figure 13: Structure of the Navigability Refiner pattern.
Example:
Applying the Navigability Refiner pattern to the situation depicted
in Figure 3 would produce the model in Figure 14.
Figure 14: Application of the Navigability Refiner
pattern.
5 TOOL SUPPORT
Having introduced a catalog of design patterns for detailed design
activities in the previous section, the need for a CASE tool that
will automate their usage, i.e., transformations is discussed in
this section. Moreover, the key elements and requirements for such
a tool will be identified. In fact, there is no lack of pattern catalogs
in the literature that span all activities of software development:
requirements specification, analysis, design, implementation, architecture,
etc. There is however a lack of successful supporting CASE tools
and methodologies that facilitate the construction of software from
patterns.
Automated tool support for object-oriented methods is vital to the
development of today’s complex software systems. In fact, there
is consensus on the importance and suefullness of tool support for
patterns [Brag03, Budi96, Corn00, Flor97, Mape02]. Currently the pattern-based
approach is done manually. Composing design patterns to develop application
designs is a tedious task that involves integration of patterns. A
tool support for development with patterns will eventually facilitate
the analysis and design phases. It is believed that such automated
tools will help designers concentarte on the big picture.
In fact, the majority of existing tools to support design patterns
focus on support for high level patterns. For example, the tool proposed
in [Yaco00] aims to integrate patterns at the architecture level.
On the other hand, the tool proposed in this article aims to integrate
design patterns such as the patterns described in this article at
the
detailed design level. One of the advantages of having tool support
for detailed design activities is expedite the design phase. Even
though such a tool can never replace a human expert, it can help him
to identify
types of design patterns that can be used to solve a particular design
problem. The tool can also help to compare design alternatives by
evaluating each alternative in terms of quality factors and by evaluating
the
results.
The ultimate objective is to develop an approach that scales up to
large industrial software systems. Our aim is to improve the software
development process by focusing on the cyclic and evolutionary
nature of the software life cycle. The focus of this paper is on developing
patterns of relationships between classes and objects that define
preferred solutions to common object-oriented design problems.
The
next step,
work already started, will be the development of a prototype of
a tool (wizard) that will take an analysis model and transform it to
a detailed
design model. Such a tool will allow a designer to select an association
from an analysis model and then apply any of the described patterns.
The tool will automatically replace the classes with the necessary
refined classes and their operations.
An advantage of using the patterns introduced in the previous section
is that they make the design model close to the implementation
model, thereby facilitating optimal code generation for a target
language.
Note that no new language constructs are needed to implement
these patterns in the target language. A disadvantage of implementing
these patterns, on the other hand, is that the design model will
become
bigger and therefore more complex. This necessitates the use
of
a tool to
introduce the patterns and manage the model. Moreover, the tool
will allow the designer the option of viewing the model with
or without
these low level patterns.
The tool being developed is meant to be integrated with an object-oriented
software modeling tool to fully benefit from the patterns discussed
in this article. This can be achieved by extending an existing
visual modeling tool such as IBM Rational Rose with the functionality
provided
by this tool. In this case, the work to be done to include
support for automatic implementation of these patterns would be minimal.
6 CONCLUSIONS AND FUTURE WORK
This paper has introduced a catalog of patterns for detailed
design. The catalog consists of six related patterns that
recur in every
application. This pattern catalog can form the basis of
a pattern language for detailed
design. The pattern catalog is not complete in the sense
that it can be extended with other patterns for generalization/specialization
relationship
as well as the refinement of association into dependency,
aggregation,
and composition relationships. It is believed that such
a pattern language will help create detailed design models that are
close
to the implementation
language, which will facilitate the generation of code
from
the design model easily and more efficiently. A CASE tool
is being
designed
to automate the transformation of an analysis (initial
design) model to
a detailed design model using the proposed pattern catalog.
Such a tool will improve the productivity of the developers
and shorten
the
time needed to complete the design.
REFERENCES
[Benn02] Bennett S. et al, “Object-Oriented
Systems Analysis and Design Using UML”, McGrawHill,
2002.
[Brag03] Brag R. and Masiero P, “Building
a Wisard for Framework Instantiation Based on a
Pattern Language”, Proceedings of OOIS
2003,
2003.
[Budi96] Budinsky F. et al, “Automated code
generation from design patterns”, IBM
Systems Journal, 1996.
[Busc01] Buschman F. et al, “Pattern-Oriented
Software Architecture”, Wiley, 2001.
[Corn00] Cornils A. and Hendin G., “Tool
Support for Design Patterns based on Reference
Attribute Grammers”, Proceedings of WGA00,
2000.
[Flor97] Florijn G. et al, “Tool support
for object-oriented patterns”, Proceedings
of ECOOP’97, 1997.
[Fowl97] Fowler M., “Analysis Patterns: Reusable
Object Models”, Addison-Wesley, 1997.
[Gamm95] Gamma E. et al, “Design Patterns:
Elements of Reusable Object-Oriented software”,
Addison-Wesley, 1995.
[Larm02] Larman C., “Applying UML and Patterns”,
Prentice Hall, 2002.
[Lee03] Lee T. et al, “Object-Oriented Design
of RTI Using Design Patterns”, Proceedings
of OOIS2003, 2003.
[Mape02] Mapelsden D. et al, “Design Pattern
Modeling and Instantiation using DPML”, Proceedings
of Tools Pacific’02, 2002.
[Quat00] Quatrani T., “Visual Modeling with
Rational Rose 2000 and UML”, Addison-Wesley,
2000.
[Rati00] Rational University, “Object-Oriented
Analysis and Design Using UML, Student Manual”,
Version 2000, Part# 800-011765-002, 2000.
[Rumb05] Rumbaugh J. et al, “The Unified
Modeling Language Reference Manual”, Second
Edition, Addison-Wesley, 2005.
[Shal02] Shalloway A. and Trott J., “Design Patterns Explained”,
Addison-Wesley, 2002.
[Yaco00] Yacoub S., Xue H., and Ammar H. “Automating the Development of
Pattern-Oriented Designs for Application Specific Software Systems”, Proceedings
of ASSET’00, 2000.
[Yaco04] Yacoub S. and Ammar H., “Pattern-Oriented
Analysis and Design”,
Addison-Wesley, 2004.
About the author
|
|
Walid Al-Ahmad is an associate professor
of Computer Science. He is currently working at New York Institute
of Technology - Bahrain Campus. He is the coordinator for the
School of Engineering and Technology. His research centers around
improving support for object-oriented concepts and principles
in OOPLs as well as new emerging software approaches such as
components, design patterns and web services. He can be reached
at w.alahmad@nyit.edu.bh
|
Cite this article as follows: W. Al-Ahmad: “Object-Oriented
Design Patterns for Detailed Design”, in Journal of Object Technology,
vol. 5, no. 2, March-April 2006, pp. 155-169 http://www.jot.fm/issues/issue_2006_03/article3
|
