Reflection-based implementation of Java
extensions: the double-dispatch use-case
Rémi Forax, Institut Gaspard–Monge, Université
de Marne-la-Vallée, France
Etienne Duris, Institut Gaspard–Monge, Université de Marne-la-Vallée,
France
Gilles Roussel, Institut Gaspard–Monge, Université de
Marne-la-Vallée, France |
 |
ARTICLE
PDF Version |
Reflection-based libraries may be used to extend the expressive power
of Java without
modifying the language nor the virtual machine. In this paper, we present
the advantages
of this approach together with general guidelines allowing such implementations
to be practicable. We show how these principles have been applied to
develop an
efficient and general double-dispatch solution for Java, and we give
the details of our
implementation.
1 INTRODUCTION
Java programmers sometimes realize that their programming language
lacks some
feature. For instance, they could wish to have a double-dispatch mechanism
to ease
implementations dealing with tree-like structures or binary methods
[4, 17]. This
feature, which is a special case of multi-methods [11, 21, 8, 3, 22,
23, 10, 12, 1, 27,
2, 14], allows a method implementation to be chosen with respect to
the dynamic
type (late-binding) of both the receiver and a single argument. It
can be achieved
programmatically through the visitor design pattern [19, 15]. However,
providing it
at language level improves genericity and reusability, easing the design,
maintenance
and evolution of applications [25].
Several techniques could be used to implement such a Java extension.
The
language could be modified, producing standard Java bytecode, e.g.,
introducing
new keywords [3, 10]. The Java Virtual Machine (JVM) could also be
modified,
either to accept an extended bytecode or to modify its standard semantics
[12]. An
alternative solution is to provide such an extension as a pure Java
library, using the
Java Core Reflection mechanism and bytecode generation, leaving the
language and
the virtual machine unchanged [13, 17]. This remark could be generalized
to other
Java extensions where reflection-based approaches are applicable
[28, 20, 26].
This paper aims to show the worth of pure Java solutions which are
the most
flexible ones, although the least employed for efficiency reasons.
First, section 2
argues their design advantages compared to environment-intrusive
ones. In section 3,
general implementation-design guidelines are given to make them
practicable. Based on related works, section 4 shows how we apply
these principles to provide an efficient
double-dispatch implementation, the Sprintabout. Its implementation
details are
discussed in section 5.
2 DESIGN CHOICES
The most classical approach to implement Java extensions is to
modify the language
syntax and to provide the corresponding translator, pre-processor
or compiler. This
approach has the advantage of being performed at compile time,
allowing many
costly computations to be performed before execution. In particular,
it allows the
compiler to perform some static type-checking that is known to
enhance software
safety. It has the corresponding drawback: it can only use compile-time
information.
Indeed, in the context of Java’s dynamic class loading, some
essential information
such as type hierarchy may only be available at runtime. Furthermore,
the resulting
dedicated language is difficult to maintain, particularly when
the underlying
language evolves.
A second approach, that may be complementary to the extension of
the syntax
when runtime information is required, is to modify the Java virtual
machine
or its semantics. It has the advantage of providing precise runtime
information on
the executing application with a minimum overhead. However, it
requires tricky
knowledge of the internal of a specific virtual machine. Furthermore,
applications
implemented using such a modified virtual machine require a specific
execution environment
which is difficult to maintain and that may not be compatible with
existing
applications. Thus, this approach yields dedicated solutions whose
portability is seriously
restrained.
An alternative approach, already chosen to provide Java with runtime
type information
[28], multi-dispatch [13, 17] or aspect-oriented features [26],
is to use
reflection to access JVM’s runtime internal structures. Like
the second approach, it
benefits from dynamic information and, as a pure standard Java
solution, it offers
optimal portability. Even if it could led to runtime type exception
(just as type
casts), it has the advantage of being simple and directly accessible
through the Java
Core Reflection API. Contrarily to previous approaches, it allows
several specific
features to be used or combined, on demand, inside a single application.
Moreover,
being provided as a simple Java extension library, a new feature
deployment only
consists in adding a single JAR file to the ”classpath” of
a standard Java environment.
Unfortunately, reflection-based implementations are usually considered
to be
inefficient in space and time.
All of these approaches present advantages and limitations, but
this paper deliberately
focuses on enhancements of reflection-based techniques. 3
USING REFLECTION
This section points out problems of reflection-based implementations
and gives
guidelines to make them practicable.
First, from the essence of the Java Core Reflection API, any
reflection-based
implementation implies significant costs in space and time.
Indeed, the reification
of JVM internal objects induces some performance overhead
compared with direct
accesses available inside the JVM. Beyond object creations,
this induces additional
indirections. For instance, the reflective invocation of
a simple method without
argument is known to be slower than the corresponding classical
call [6, 7]. Tests
performed on a 2.4GHz Pentium 4 with 512Gb of RAM using SUN
jdk1.5.04 under
Linux (two firsts raws of Figure 1) show that reflective
invocation is about 50 times
slower than classical one, and even worse in server mode1.
Next, the genericity of reflective methods implies the construction
of several
intermediate objects that impacts on performance. In particular,
a single call to
the invoke() method usually requires the creation of an Object array to be filled
with arguments and, when dealing with primitive types, boxing/unboxing
is also
necessary. Indeed, for any primitive-type argument or return
value (int, double...),
its reflective manipulation must be done through the corresponding
wrapper type
(Integer, Double...). Thus, to abstract a primitive value
onto the reflection level,
its wrapper object has to be constructed (boxing). Moreover,
return values have to
be cast to conform to the return-type of the method and sometimes,
unwrapping primitive types (unboxing) is also
necessary. These remarks still hold with jdk 1.5
even if boxing/unboxing and array creation are now hidden
to the programmer.
Figure 1 shows that performance of method calls with no argument
and with one
int argument are comparable, even for reflective invocations.
However, this is only
true if object and array creations are not taken into account2.
Finally, since Java does not allow modifications (extensions)
to its internal structures
through reflection, some data structures have to be duplicated
outside the
JVM, in the application. For instance, in order to associate
information with classes,
it is impossible to directly add a field to the class Class and it requires to rely on
external structures such as hashtables. Thus, using reflection
may lead to important
performance penalties in terms of time and space if implementation
is carried out
without caution.
We argue that general strategies, already used by other
frameworks [28, 13, 17],
allow reflection-based implementations of language extensions
to be improved. Our
goal is not to improve Java reflective calls [6, 7] in
general but rather to give some
guidelines that allow to enhance the design and implementation
of reflection-based
implementation in special contexts such as language extensions.
Figure 1: Performance of one hundred million
method calls The first guideline to follow is to
clearly identify two stages in the implementation:
the creation time, when objects with reflective purpose are created,
and the
invocation time, when such objects are actually used to perform
multiple tasks. To
reduce time overhead, as many computations as possible have to
be transfered from
invocation time (just in time) to creation time. Indeed, in Java,
durations of many
computations remain negligible compared to class loading (disk
access, class verification)
and thus may not be perceived by users. Nevertheless, these pre-computations
imply some states to be stored in order to be available just
in time. This strategy
transfers most computations from invocation time to creation
time but may produce
large data structures. Thus, programmers have to find the right
balance between
invocation time, creation time and space. The choice of algorithms
and data structures
used during these two phases is essential to make reflective
implementation
practicable.
The second guideline is to reduce space overhead, sharing as
much data as possible.
This can be achieved through specific algorithm implementations.
However,
this sharing should also conform to classical object-oriented
design principles. Indeed,
it is usually possible to share data between objects of the
same class (e.g.
through static fields), between classes if they are related
by inheritance, or between
threads. These data structures should support incremental modifications
to ensure
that creation-time information are reusable when some new information
is discovered
at invocation time. Developers must also take into account
multi-threading
since this worry is usually contradictory with time and space
performance. Indeed,
to maintain data coherence, synchronization is usually required
and induces extra
duration for method calls. More precisely, a method call is
slower if synchronized
(see Figure 1), even without delay induced by mutual exclusion.
One way to avoid
synchronization is to relax coherence and duplicate data but
this leads to space
overhead.
The third guideline is to try to minimize the use of expensive
reflective mechanisms
for the invocation-time part3 of the implementation. The first
objective is to
eliminate as many reified JVM’s internal objects as possible,
in order to save space
and to minimize indirections. Another goal is to minimize generic
reflective calls,
replacing them with dedicated calls in order to avoid intermediate
object creations,

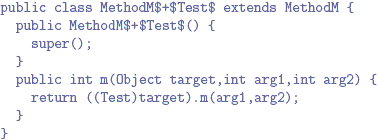

casts and boxing/unboxing. This can be achieved by generating,
at creation time,
dedicated bytecode [17] according to a precise method signature
specified by the
developer instead of relying on the generic signature of the
reflective API. More
precisely, many JVM’s internal reified objects like Method or Class do not necessarily
require to refer to the internal state of the JVM. Thus they
may be partially
simulated by user-defined objects which can be more efficient
than reflective API
ones. In particular, a Method object that refer to a public4
method may be efficiently
simulated by generating and instantiating a class implementing
the corresponding
method call. Moreover, in order to reduce intermediate object
and array creations
required by the generic invoke() method call, we propose to let
the developer specify
precisely the method signature as an abstract method in an abstract
class. Code
generation is then used at creation time to implement this abstract
method by a
call to the method with a corresponding signature on a specific
receiver.
In order to illustrate this approach and its worth, we developed
a class RFX. This
class provides reflective-like method invocations that are more
efficient than those
of the generic reflective API. Suppose that you have to call
a method with name
m and two int parameters on a receiver whose class is unknown
at compile time.
With RFX, instead of using the generic class Method, you declare
an abstract class5
containing at least an abstract method m() with a first parameter
of type Object,
corresponding to the receiver, and two other int parameters,
as follows:
According to the receiver’s class c (dynamically provided
in the following example
by retreiveClass()), a call to RFX.bind() generates6 the bytecode
of a concrete
subclass of MethodM and returns an instance of it, mm. Then,
given an object o of
class c, invocation of o.m(1,2) is performed through the call
mm.m(o,1,2).
The generated subclass implements the abstract method m() of
MethodM by a
direct call to the method m() on the receiver (see appendix A).
Thanks to the object
mm, the invocation of the method m is efficient, avoiding object
or array creation.
Figure 1 shows that the RFX method call is only 7 times slower
than a classical
method and 8 times faster than a standard reflective method call.
Performance is
even better in server mode where a RFX call is as fast as a classical
one.
4 VISITORS: WALK, RUN AND SPRINT
We now deal with several solutions proposed to provide Java
with double-dispatch.
We first recall the interest of this mechanism and we argue
the worth of offering it
through a simple specific feature, freeing the programmer
from its implementation
details. Next, we present several existing frameworks providing
improvements in
this direction. Then, we detail the Sprintabout, a new framework
allowing doubledispatch
we have designed and implemented with respect to previous
guidelines for
reflection-based extensions. Finally, we present experimental
results that show its
efficiency compared with other approaches, including ad-hoc
hard-to-maintain ones.
Motivation
The classical late-binding mechanism provided by Java allows
a method implementation
to be chosen dynamically, according to the type of the
receiving object. This
simplifies code reusability since, when new classes implementing
the method are
introduced, programmers do not have to implement complex
selection mechanism
nor modify the code.
Nevertheless, adding a new functionality for each class
of an existing hierarchy
is less straightforward. For instance, as proposed
in [17], consider the following type
hierarchy.
Imagine that, given an array of type A[],
we want to compute  where value(a)
= i if a is of type Ai . In other
words, we want a method int
sum(A... array) such that, for instance, sum(new
A0(),new A1(),new A2()) returns 3
(0+1+2).
A first solution is to test, with the Java instanceof statement,
the actual dynamic
type of each array element that is statically typed A. The corresponding
code,
based on successive and nested tests could become very intricate
if the type hierarchy
concerns interfaces with multiple inheritance. Anyway, it is
tedious to implement,
error prone and hard to maintain if the hierarchy or the semantics
evolves.
A more object-oriented, but naive and dedicated solution, would
be to add in
each class a method int value() that returns the right number.
To be simply used
with an array of type A[], this not only requires modification
of all classes, but also
of the interface. Nevertheless, nowadays, most applications are
built using classes
or objects provided by third-party libraries (Java standard API,
or off-the-shelf
libraries). Even if their sources are available, they usually
should not be modified.
Thus, programmers cannot simply add methods to such classes7.
Two classical object-oriented techniques allow this difficulty
to be worked around:
class inheritance and delegation. However, on the one hand, inheritance
is not
always applicable: the case of final classes apart, some libraries
use factory methods
to create objects and prevent constructor access. On the other
hand, if delegation
could always be used by defining new wrapping classes for each
data type, this leads
to data structure duplications and to burdensome hard-to-maintain
code.
A better design is to specify a set of methods int
value (T t) in a separate
class, one for each ”interesting” type (e.g. A0,
A1 and A2 in our example), and to
provide a general mechanism allowing the right one to be chosen
with respect to the
dynamic type of t. This late-binding mechanism on the argument
of a method call,
known as double-dispatch, would actually allow behaviors (methods)
to be specified
outside classes, separating algorithms from data. Unfortunately,
this mechanism is
not available in Java.
To face this lack programmatically, the programmer could design
his code following
the visitor design pattern [19, 15]. It simulates late-binding
on the argument of a
visitor method visit(a) using the classical late-binding on
an a.accept (Visitor
v) method provided by data classes. If this technically solves
the problem of adding
new functionality to a given class without modifying it, this
design pattern has several
limitations. First, it requires data classes to be engineered
to accept visitors,
i.e., to implement an accept() method. Second, the behavior
is strongly tied to
the existing type hierarchy: it must implement a special Visitor interface which,
for full generality, must include one visit() method for each
accessible type. This
has two drawbacks. The programmer must implement every visit() method even
if some of them could have been captured by a widening reference
conversion of the
argument type. Moreover, any extension of the type hierarchy
requires the Visitor interface to be extended; then, all existing visitor implementations
have to be modified
since they must implement the new visitor interface to be accepted
by existing
classes.
Double-dispatch implementations
Several research works proposed to implement the double-dispatch
as a reflectionbased
extension. Based on the Walkabout of Palsberg and Barry Jay
[25], Grothoff
proposed the Runabout [17] that allows a new functionality
to be specified over data
without modifying their class nor requiring them to implement
accept(Visitor v) methods. The programmer specifies behaviors through visit() methods (one for
each interesting parameter type) in a class that extends the
provided general class
Runabout. This class contains a method visitAppropriate(Object
o) that is able
to dispatch the invocation to the right method visit() with
respect to its (dynamic)
argument type.
Compared with theWalkabout, the Runabout minimizes the use
of the Java Core
Reflection API to improve its performance. When an instance
of the Runabout is
created, reflection is used to find all available visit() methods. For each parameter
type, a class is generated and loaded on-the-fly. It contains
a method dedicated to
invoke the visit() method corresponding to this parameter
type. An instance
of each of these classes is created and stored in a dynamic
code map. Thus, at
invocation time, the visitAppropriate() method simply
uses its argument class
and the dynamic code map to dispatch the invocation to
the appropriate code.This technique avoids the use of the generic invoke() method, known to be time
consuming.
At the same time this work was performed, Forax et al.
developed a reflective
framework to provide full multi-polymorphism in Java
[13], i.e. late-binding on all
method arguments. With the Java Multi-Method Framework
(JMMF), the programmer
constructs a MultiMethod object that represents all
methods with a given
name and a given number of parameters that are accessible
in a given class. To
perform a multi-polymorphic invocation with an array
of arguments, it suffices to
call the invoke() method of the multi-method object.
JMMF dispatches the call
to the most specific method, according to dynamic types
of arguments.
The aim of JMMF is more general than the simple double-dispatch
and more
generic than the Runabout. It does not require inheritance from
any class, allowing
another inheritance. Furthermore, it does not constraint the
name of the method
to be visit and allows several distinct multi-methods to be defined
in a same
class. Nevertheless, even if it computes data-structure at creation
time in order
to minimize invocation-time overhead (and even allows them to
be shared between
multi-methods), its implementation efficiency suffers from relying
on the Java Core
Reflection API.
The Sprintabout
Inspired by previous related works, we have designed and implemented
the Sprintabout,
following the guidelines we drew in section 3. The code below
illustrates how
it can be used on our running example.
In this example, the abstract method whose name ends with Appropriate is
used to identify the methods to be considered for multi-dispatch,
i.e. value(). The createVisitor() method collects these methods through reflection
on its argument
class. It returns a visitor object, standing for all methods
value() belonging to the
class and in charge of dispatching invocations according to the
dynamic type of the
argument provided to valueAppropriate() calls.
The Sprintabout implementation respects guidelines outlined
in section 3. At
creation time, a hashtable is created to be used at invocation
time. Initially filled
by the method createVisitor(), it associates types with integers
that index the
method to call for this type of argument. It could be completed
dynamically, when
new argument types are discovered, in order to cache the method
identifier resolved
for this type. As a static field, this hashtable is shared between
all instances of the
same class.
The implementation bytecode for the abstract “appropriate” method
is generated
at creation time. At invocation time, when this concrete generated
method is
called, it performs a lookup in the hashtable to retrieve the
method index associated
with the type of its argument; if the type is not found, the
method’s index for the
closest type must be determined and their association is cached
into the hashtable.
Then, the dispatch is performed using this index in a simple
switch/case statement
to call the right method. The source code obtained by decompiling
the bytecode
generated for the method valueAppropriate() of our example is
given in
Appendix B. The classloader caching mechanism ensures that the
bytecode generation
is only performed once. This implementation technique allows
Sprintabout to
become completely independent of reflective method call at invocation
time. Compared
with the Runabout that reifies one dedicated code object (generated
class)
for each visit() method, the Sprintabout only builds a single
visitor class for all
methods. This minimizes memory footprint and delegation overhead.
Moreover, compared to other approaches, the specification of
the abstract “appropriate” method
allows the user to give a signature as precise as possible. Indeed,
this method does not have to be generic since it is specifically
generated for each
particular visitor class. This feature allows the compiler to
perform some static
type-checking on argument types, e.g. it is possible to constraint
argument type.
For instance, in previous example, the declaration of valueAppropriate() imposes
the argument to implement the interface A. Finally, the “appropriate” method
signature
may return values of any type, including primitive types, without
requiring
cast or boxing/unboxing. As JMMF and contrarily to the Runabout,
the Sprintabout
does not require the implementation class to inherit from some
special class
(i.e. Runabout) and thus allows any other class extension.
Sprintabout implementation relies on jdk 1.5 generics, on JSR133
for concurrency
and uses ASM [5] for code generation. It is freely available
on the Web8 and its
implementation is detailed in section 5.
 |
 |
number of visit methods (client mode deep hierarchy) |
number of visit methods (client mode flat hierarchy) |
 |
 |
number of visit methods (server mode deep hierarchy) |
number of visit methods (server mode flat hierarchy) |
Figure 2: Dispatch time in client and server
mode, with deep and flat type hierarchy
Experimental results
In this section, we present an evaluation of invocation performance
of Sprintabout
compared with other double-dispatch solutions. We compare it with six
techniques:
Instanceof, implementing filtering using instanceof tests, Dedicated,
where a dedicated
method is added inside each data class, Visitors, that implements the
visitor
design pattern, Runabout, implementing double-dispatch using inheritance
of the
class Runabout, JMMF, implementing double-dispatch as a special case
of multidispatch
provided by the library JMMF and finally Sprintabout.
Our tests present the evolution of the time required by one million
method
invocations when the number of methods increases. In these tests, we
use two
distinct type hierarchies to provide the argument values of method
calls. In the
deep hierarchy, all types are related by inheritance whereas in the
flat one, they
are unrelated. Figure 2 presents results of these tests in both standard “client” execution
environment and with a virtual machine started in server mode. All
the
tests of this section have been performed on a 2.4GHz Pentium 4 with
512Gb of
RAM using SUN jdk1.5.04 under Linux, but results on the same architecture
using
Windows XP are comparable.
These tests show that Visitors and Dedicated techniques (whose graphs
overlap)
have the best performance on average. Instanceof technique has the
best performance
for the flat hierarchy. However, for the deep one, its performance
strongly
decreases when the number of visit increases; it seems that Instanceof
implementation
relies on some caching techniques that fails when hierarchy becomes
to large.
Considering the reflection-based implementations, we see that the
Spintabout is
about three times faster than the generic JMMF and one fourth faster
than the
Runabout, which also uses a code generation technique. This shows that
avoiding
the use of Java Core Reflection mechanism allows Runabout and Sprintabout
invocation
time perfomance to be improved. This also proves that the Sprintabout,
which eliminates JVM’s internal object reification and genericity
of method calls,
has better performance than Runabout.
Tests performed in server mode give comparable results. Nevertheless,
Sprintabout
has now better performance than Visitor and Dedicated techniques. This
behavior comes from the execution performance of optimized code [9]
that is better
for switch statements produced by Sprintabout than for virtual calls
used by other
techniques.
5 SPRINTABOUT IMPLEMENTATION
This section describes more precisely some Sprintabout implementation
details. Our
aim is not to give burdensome technical details, but rather to point
out some problems
and the way they are addressed. First, we briefly describe the process
overview,
and its two main steps: creation time and invocation time. Next, we
detail particular
contexts, determined at creation time, where specific algorithms may
be used
at invocation time. These algorithms, given an argument type at invocation
time,
select the right method to invoke. Finally, we describe our specific
implementation
of hashtable that, given our particular context, deals efficiently
with concurrency.
Overview and general principle
The Sprintabout implementation respects guidelines outlined in section
3. At creation
time, all declared parameter types of concerned methods are considered
in
order to prepare the invocation time process.
First of all, at creation time, the method createVisitor() of
the
Visitor-Generator is called with a class
as argument. In this class, given a method method-Appropriate(),
a reflective retrieval of all methods named method
() with one parameter
is performed. Parameter types of these methods are collected and associated
with indexes9 (non-negative integers).
If n is the number of parameter types, a precision
matrix PM of size n × n is
constructed. In this binary matrix,
PM[i][j] = 1 if
and only if i is the index of a type Ti that
is more
precise than the
type Tj indexed
by j. The precision relation defined by this
matrix, noted Ti  Tj,
intuitively
means that a method declaring a parameter of type Tj accepts
arguments of type
Ti. This precision relation is usually provided
by the method isAssignableFrom() of java.lang.Class or,
for special cases such as primitive types or arrays, by specific
treatments according to the Java Language Specification, chapter 5
[16]. This matrix is widely used at creation time, in order to determine
the definition context of the set of methods considered. The definition context depends on the
particularities
of the parameter types hierarchy and induces the choice of a dedicated
algorithm that selects the right method to call at invocation-time. In
addition to
the choice of the algorithm, the creation-time step builds the main data-structure
used at invocation time: a hashtable whose keys are types and values
are indexes.
This hashtable is initially filled at creation time with the declared
parameter types
and their indexes.
At invocation time, given the type Arg of an actual argument arg of a call to
method Appropriate(), the invocation-time algorithm uses the hashtable
to find the
index identifying the method to invoke. If the type Arg is found in
the hashtable,
this directly yields the index. Otherwise, the algorithm has to inspect
all less precise
types (usually supertypes) of Arg in order to find the closest
type registered in the
hashtable; this process may require the use of the precision matrix.
Sometimes,
several less precise types are not comparable and it is not possible
to determine a
closest type. In this case, a runtime exception is thrown. The result
of this process
is cached, by inserting in the hashtable the association between the
argument type
Arg and the index found.
The case of null argument
Since this process uses the type of the argument, the case where
the argument is null must
be treated separately. In such a situation, the method to be
called is the most
precise one, if it exists, i.e., the method whose parameter type
is more precise than
every other declared parameter types. The existence of such a most
precise method
is determined at creation time using the precision matrix. Indeed,
if a type of index i is the most precise then  . If a most
precise method exists, its
index is associated in the hashtable with an unused type (e.g.
void.class). At
invocation time, when the value null is encountered, the algorithm
artificially looks
for this type in the hashtable. If a most precise method does not
exist, then a
predefined index (e.g., -1) is associated in the hashtable with
void.class and, at
invocation time, when this index is found, a runtime exception
is thrown.
Definition contexts and algorithms
The particular treatment of a null argument does not depend on
the definition
context. In the same way, whatever is the definition context,
if the argument is
not null, its type Arg is looked for in the hashtable. If an
index is found, the
corresponding method is invoked, otherwise, invocation-time
process depends on
the definition context determined at creation time. This section
describes these
different contexts, how they are determined at creation time,
and their corresponding
invocation-time algorithms.
Only classes in parameter types
The simplest definition context is when all declared parameter types
are classes like in Figure 3 (a). Since Java does not allow multiple
inheritance of classes, looking step
by step in the hashtable for direct superclass of any argument
type yields a single
index, if one exists. At creation time, in order to determine this
definition context,
we simply use the method isInterface() of java.lang.Class over
each declared
parameter type. This particular context allows us to discard the
precision matrix.
The corresponding invocation-time algorithm simply retrieves the
superclass of Arg,
using the method getSuperclass() of java.lang.Class, and looks
for it in the
hashtable. This is done step by step until either it finds an index
(the method to
invoke) or reaches the root class Object (in this case a runtime
exception is thrown).
The association between Arg and its index is cached in the hashtable
for further use.
Totally ordered parameter types
Another definition context allows the precision matrix to be discarded.
It occurs
when all declared parameter types are totally ordered by the
precision relation. In
other words, the hierarchy is linear: each declared parameter
type is either more
precise or less precise than any other declared parameter types
like in Figure 3 (b).
This context is determined from the precision matrix verifying
that, for all i  1..n:
In this case, several declared parameter types less precise
than an argument type
may exist but, since they are totally ordered, one of them
is the most precise. To
ease to selection of the most precise method and to avoid
the use of the precision
matrix at invocation time, the indexes of declared parameter
types are reordered in
the precision order10. Then, to retrieve the most precise
type it suffices to retain
the type with the greatest index. This renumbering is realized
at creation time, and
the algorithm used at invocation time only uses the hashtable.
More precisely, it
traverses recursively all types less precise than Arg (supertypes)
in order to find,
if it exists, the type with greatest index. During this
traversal through the type
hierarchy, for each type found in the cache the branch
leading to less precise types is
pruned since they will never yield a greater index. If
a greatest index is found, the
result is cached in the hashtable and the corresponding
method is invoked; otherwise,
a runtime exception is thrown.
Precision relation and bad fork
The difference between the last two definition contexts
relies on the notion of fork between
parameter types. We say that there is a fork in
the hierarchy of parameter types if a given type is
more precise than at least two other parameter types
that
are not comparable, as in examples (d) and (e) of Figure
3.
Figure 3: Examples of parameter type hierarchies for
different definition contexts Generally, looking for less precise types of a given
argument type leads to several
parameter types and the most precise one must be determined,
if it exists. Suppose
that two incomparable parameter types less precise
than the argument type are
found. If there is no fork, then it is possible to
conclude that no most precise method
exists, like in Figure 3 (c). Otherwise, if a fork
exists, a most precise method may
exist. Indeed, a third parameter type may exist that
is more precise than the two
incomparable ones, and thus, further comparisons are
required.
In order to minimize comparisons, we propose to retrieve
types the most precise
first. This ensures that when two types are found in
this order then either one
is more precise than the other, or a most precise does
not exist. This property
can sometimes be ensured by the traversal of the type
hierarchy. More precisely, if
one of the three types involved in a fork is a class,
then the most precise type is
necessarily a class, as in Figure 3 (d); a traversal
that performs getSuperclass() before getInterfaces() will encounter this most precise
class first. Otherwise, the
fork, called “bad fork”, only involves
interfaces, as in Figure 3 (e), and the hierarchy
traversal cannot guarantee retrieval of types in order.
In this case, parameter type
indexes need to be renumbered at creation time, like
in the totally ordered context,
to allow the invocation-time algorithm to test them
in order.
To be able to characterize the definition context at
creation time, after collecting
all declared parameter types, we look for an interface
definition that explicitly
extends two other parameter interfaces. If such a bad
fork is found, the definition
context is said to be “with bad fork”,
else “without bad fork”.
In a definition context without bad fork, at invocation
time, given an argument
type Arg not found in the
cache, the algorithm begins like for totally ordered
types.
It traverses the hierarchy of less precise types
(supertypes) of Arg, looking
for classes prior to interfaces, and if none or only
one index
is found, it respectively throws an exception or invoke the corresponding
method. Otherwise, as soon as two distinct
indexes are found, their types must be compared. If they are comparable,
the most
precise is retained and the process continues. If they are not comparable,
the context
allows us to stop the traversal and to conclude that there is no most
precise method
and an exception is thrown.
In a context definition with a bad fork, at invocation time, the
algorithm starts
similarly, but must collect all indexes of types less precise than
Arg before performing
any comparison. Then, while at least two indexes remain, the two largest
i and j are
considered. If the corresponding types are not comparable, the type
renumbering
performed at creation time ensures that there is no more precise type,
and thus
no most precise method: a runtime exception is thrown. Otherwise, if
one of the
corresponding types is more precise than the other, its index is retained
and the
comparison process continues with remaining indexes. When the process
succeeds
with a single index, the corresponding method is invoked.
In both contexts, successful index retrievals are cached.
Then, in better cases, complexity of method retrieval at invocation
time has the
same complexity as a dynamically-sized hashtable access (roughly O(1)).
The worst
case requires to traverse the hierarchy of the argument type in order
to retrieve all
its supertypes and then to identify the most precise one. In the worst
case, this
process is linear (O(n)) in the number, n, of types in the hierarchy.
Linearity is
ensured by the creation-time pre-processing which requires d2 calls
to the method
isAssignableFrom(), where d is the number of declared parameter types.
Complexity
of isAssignableFrom() is, in the worst case, linear in the size of
the type
hierarchy. Since complexity of other pre-processing steps are less
than O(d2), the
general worst-case complexity of creation-time process is O(d2× n).
Data-structure implementation and concurrency
The cache used in our implementation allows to retrieve, given a
class object, the
index (integer) corresponding to a visit method. This cache is
implemented by a
dedicated hashtable. Indeed, compared to the generic implementation
available in
the Java API, our implementation can avoid boxing/unboxing of the
index value
into Integer. It is also possible to use reference equality == instead of equals() on
Class objects since uniqueness is ensured by the virtual machine.
Another optimization
concerns concurrency. Compared with java.util.concurrent.ConcurrentHashMap,
our implementation may be simplified since we never need to remove
an
entry from the cache. The cache only supports insert() and get() operations. To
improve performance of the cache, we have chosen to completely
relax the synchronization
on the get() operation. This is possible since all hashtable modifications
are atomic. Freshness of values is ensured by volatile variable
accesses according
to the causality of the Java Memory Model (JSR 133). We use mutual
exclusion on
the insert() operation for data coherence, however, we allow multiple
instances of
a same entry to be present in the hashtable to improve time performance.
6 CONCLUSION
This paper promotes the use of reflection based implementations to
extends the Java
environment. It proposes several guidelines to make such implementations
practicable.
First, as many computations as possible have to be performed at creation
time to reduce invocation-time overhead. Next, as many data as possible
have to be
shared to reduce space overhead, taking into account concurrency
issues. Finally,
code generation may be used to minimize the invocation-time use of
reified objects
and of the generic methods of the Java Core Reflection API. This
latter point is
illustrated by a simple class RFX that improves reflective method
invocations.
To illustrate this approach, we describe a reflection-based implementation
of
double-dispatch for Java that conforms to these guidelines. Experimental
results
compare this implementation with other techniques and validate the
usability of our
approach.
A RFX GENERATED CODE
The following Java class corresponds to the bytecode generated by
the RFX.bind()
method if, in the example of section 3, the class c provided
by the method retreive-Class() has name Test.
B SPRINTABOUT GENERATED CODE
The following Java source code has been obtained by decompiling
the bytecode
generated by Sprintabout for the example of section 4.
Footnotes
1 Server
mode corresponds to a special version of the Sun HotspotTM virtual
machine that performs aggressive optimizations [24].
2 Figure 1 details subcases of
reflective call with one argument, that measure distinct invocation times
taking or not taking into account array and Integer object
creations.
3 They may also be minimized for
creation-time part but this is less crucial.
4 This is not the case for other
method kinds, like private ones, that require access to the JVM’s
internal in order to pass security checks.
5 An interface may also be used
but with some performance penalty.
6 The class is generated only once
thanks to the classloader’s
cache.
7 This may be done through Aspect
Oriented Programming features without class modification [18].
8 http://igm.univ-mlv.fr/~forax/works/sprintabout/
9 An index identifies both a type
and the method that declares a parameter of this type.
10 In this particular case, a
well-ordered numbering should respect,
REFERENCES
[1] G. Baumgartner, M. Jansche, and K. Lufer. Half & half: Multiple
dispatch and
retroactive abstraction for Java. Technical Report OSU-CISRC-5/01-TR08,
Dept. of Computer and Information Science, Ohio State University, Mar.
2002.
[2] L. Bettini, S. Capecchi, and B. Venneri. Translating double-dispatch
into singledispatch.
In Proc. of WOOD’04, ENTCS. Elsevier, 2004.
[3] J. Boyland and G. Castagna. Parasitic methods: An implementation
of multimethods
for Java. In OOPSLA’97, number 32–10 in SIGPLAN Notices, pages
66–76, Atlanta, Georgia, Oct. 1997. ACM Press.
[4] K. Bruce, L. Cardelli, G. Castagna, The Hopkins Object Group, G.
T. Leavens,
and B. Pierce. On binary methods. Theory and Practice of Object Systems,
1(3):221–242, 1996.
[5] E. Bruneton, R. Lenglet, and T. Coupaye. ASM: a code manipulation
tool to
implement adaptable systems. In Adaptable and extensible component
systems,
Grenoble, France, Nov. 2002.
[6] W. Cazzola. SmartMethod: an Efficient Replacement for Method. In
SAC’04,
pages 1305–1309, Nicosia, Cyprus, Mar. 2004. ACM Press.
[7] W. Cazzola. Smartreflection: Efficient introspection in java. Journal
of Object
Technology, 3(11):117–132, Dec. 2004. http://www.jot.fm/issues/issue_2004_12/article6
[8] C. Chambers. Object-oriented multi-methods in Cecil. In ECOOP’92
proceedings,
LNCS, Utrecht, The Netherlands, July 1992. Springer.
[9] C. Click. Java technology performance myths exposed, 2005. http://developers.sun.com/learning/javaoneonline/2005/coreplatform/TS-3268.pdf.
[10] C. Clifton, G. T. Leavens, C. Chambers, and T. Millstein. MultiJava:
Modular
open classes and symmetric multiple dispatch. In OOPSLA’00 proceedings,
ACM SIGPLAN Notices, Minneapolis, USA, Oct. 2000.
[11] L. G. DeMichiel and R. P. Gabriel. The Common Lisp Object
System: An
overview. In ECOOP’87 Proceedings, LNCS, pages 151–170,
Paris, France,
June 1987. Springer.
[12] C. Dutchyn, P. Lu, D. Szafron, S. Bromling, and W. Holst.
Multi-dispatch in the
Java Virtual Machine design and implementation. In COOTS’01
proceedings,
San Antonio, USA, Jan. 2001.
[13] R. Forax, E. Duris, and G. Roussel. Java multi-method framework.
In TOOLS
Pacific’00 Proceedings, Sidney, Australia, Nov. 2000. IEEE Computer.
[14] R. Forax, E. Duris, and G. Roussel. A reflective implementation
of java multimethods.
IEEE Transactions on Software Engineering (TSE), 30(12):1055– 1071,
2004.
[15] E. Gamma, R. Helm, R. Johnson, and J. Vlissides. Design
Patterns:
Elements
of Reusable Object-Oriented Software. Addison-Wesley, 1995.
[16] J. Gosling, B. Joy, G. Steele, and G. Bracha. The JavaTM Language
Specification–Second Edition. Addison-Wesley, 2000.
[17] C. Grothoff. Walkabout revisited: The runabout. In ECOOP’03
proceedings, LNCS, pages 103–125. Springer, 2003.
[18] J. Hannemann and G. Kiczales. Design pattern implementation
in java and
aspectj. In Proc. of OOPSLA’02, pages 161–173, Seattle,
USA, Nov. 2002.
ACM SIGPLAN.
[19] D. H. H. Ingalls. A simple technique for handling multiple
polymorphism. In
Proceedings of OOPSLA’86, pages 347–349, Portland, Oregon,
Nov. 1986.
[20] G. Kiczales, E. Hilsdale, J. Hugunin, M. Kersten, J. Palm,
and W. Griswold.
Getting started with AspectJ. Communications of the ACM, 44(10):59–65,
2001.
[21] G. Kiczales, J. D. Rivieres, and D. Bobrow. The Art of the Metaobject
Protocol.
MIT Press, Cambridge, MA, 1991.
[22] M. Kizub. Kiev language specification. An extension of Java
language that inherits Pizza features and provides multi-methods
(http://forestro.com/kiev/), July 1998.
[23] T. Millstein and C. Chambers. Modular statically typed multimethods.
In
ECOOP’99 proceedings, number 1628 in LNCS, pages 279–303,
Lisbon, Portugal,
June 1999.
[24] M. Paleczny, C. Vick, and C. Click. The Java HotSpotTM server
compiler. In
Proc. of JVM-01, pages 1–12, Monterey, California, USA, Apr. 2001.
USENIX
Association.
[25] J. Palsberg and C. B. Jay. The essence of the visitor pattern.
In COMPSAC’98
proceedings, pages 9–15. IEEE Computer Society, 1998.
[26] R. Pawlak, L. Seinturier, L. Duchien, and G. Florin. JAC: A flexible
solution for
aspect-oriented programming in java. In Proceedings of Reflection’01,
number
2192 in LNCS, Kyoto, Japan, Sept. 2001. Springer-Verlag.
[27] J. Smith. Draft proposal for adding multimethods to c++, Sept.
2003. http://www.open-std.org/jtc1/sc22/wg21/docs/papers/2003/n1529.html.
[28] M. Viroli and A. Natali. Parametric polymorphism in java: an approach
to
translation based on reflective features. In Proceedings of OOPSLA’00,
pages
146 – 165, Minneapolis, Minnesota, United States, 2000.
About the authors
|
|
Rémi Forax is
Mâitre de
Conférences at University of Marne-la-Vallée since
2003. His main research areas concern the use of reflection
and of bytecode generation to enhance the Java programming
and executing environment. He can be reached at remi.forax@univmlv.fr.
See also http://igm.univ-mlv.fr/˜forax. |
|
|
Etienne Duris is Mâitre
de Conférences at University of Marnela-Vallée since
2000. His research
focuses on program transformations
and on the use of reflection to extend the expressive power of
programming languages. He can be reached at etienne.duris@univmlv.fr.
See also http://igm.univ-mlv.fr/˜duris. |
 |
 |
Gilles Roussel is
Professor at University of Marne-la-Vallée since
2004. His research works cover program transformations, language
processing enhancements, genericity and routing. He can
be reached at gilles.roussel@univ-mlv.fr. See also http://igm.univmlv.fr/˜roussel. |
Cite this article as follows: Rémi Forax, Etienne Duris and
Gilles Roussel, "Reflection-based implementation of Java
extensions: the double-dispatch use-case", in Journal of Object Technology,
vol. 4, no. 10, Special
Issue: OOPS Track at SAC 2005 SantaFe, December
2005,
pages 49-69,
http://www.jot.fm/issues/issues
2005 12/article3
|
