SECG: The SCOOP-to-Eiffel Code Generator
Oleksandr Fuks, Jonathan
S. Ostroff, Department of Computer Science, York
University, Canada
Richard F. Paige, Department of Computer Science, University
of York, York, U.K. |
 |
REFEREED
ARTICLE
PDF Version |
Abstract
The Simple Concurrent Object-Oriented Programming (SCOOP) mechanism
introduces
inter-object concurrency to the Eiffel language, via addition of one
new keyword, separate.
We describe a general tool that takes a Eiffel program that uses the
separate keyword and
translates it into an Eiffel multi-threaded program that uses the Eiffel
THREAD class. The
resulting code is thereafter compatible with EiffelStudio and any other
Eiffel compiler that
provides the THREAD class.
1 INTRODUCTION AND BACKGROUND
Many mechanisms exist for introducing concurrency into object-oriented
(OO) programming
languages. These approaches support the use of multiple, perhaps distributed
processors,
each of which may be executing multiple processes. Different techniques
are
provided with the languages to support synchronisation, interruption,
mutually exclusive
access to object state, and atomic execution of routines.
Java [5] introduces
concurrency via inheritance from special classes that introduce
threads; additional compilers for Java have been developed for efficiently
implementing
Java’s concurrency model, e.g., Jalapeno [1]. The Eiffel// project
[2] provided a special
class PROCESS that could be used to introduce new threads
of execution. Jalloul [7]
extends Eiffel by providing new language features for implementing
critical regions and
conditional critical regions; these new features are in turn implemented
in a kernel sitting
atop PVM. Variants of Smalltalk have been proposed [12, 9] for multi-threading.
Similarly, C++ extensions such as Parallel-C++ [8] exist for parallel,
distributed, and
concurrent execution.
The Simple Concurrent Object-Oriented Programming
(SCOOP) mechanism was proposed
as a way to introduce inter-object concurrency into the Eiffel programming
language
[10]. The mechanism extends the Eiffel language by adding one keyword, separate,
that can be applied to classes, entities, and formal routine arguments.
Application
of separate to a class indicates that the class is
executing in its own thread of control;
application of separate to entities or arguments indicate
that these constructs are points
of synchronisation, and can be shared among concurrent threads. This
mechanism was
implemented by Compton [4] by building upon the GNU SmartEiffel compiler
and runtime
system. No implementation for other versions of Eiffel, e.g., ISE EiffelStudio,
exists,
though much work is underway at ETH Zurich.
We describe a tool, called the SCOOP-to-Eiffel Code Generator
(SECG), which translates
Eiffel programs that use the SCOOP mechanism via separate, into Eiffel
threaded
applications that make use of the THREAD class which is packaged
with many distributions
of EiffelStudio. The results of applying the tool have been used successfully
with
EiffelStudio 5.2. SECG differs from Compton’s implementation
in that it does not rely on
changes to a compiler (it translates SCOOP code into pure Eiffel) or
a run-time system;
thus, it can in theory be used with any version of Eiffel that provides
an implementation
of the THREAD class which conforms to ISE’s specification.
The paper is organised as follows. We start with a brief
overview of the SCOOP
mechanism, as specified in [10], and summarise Eiffel’s THREAD class,
and then explain
how the SECG translation tool works. We use two examples to illustrate
the design and
implementation of the tool. We then discuss limitations with SECG as
implemented, and
consider further work.
2 OVERVIEW OF SCOOP AND EIFFEL THREADS
SCOOP introduces concurrency
to Eiffel by addition of the keyword separate; it
is the responsibility of the underlying run-time system and compiler
to deal
with the subtle (and,
in some cases, complicated) semantic problems introduced by the addition.
The separate keyword may be attached to the
definition of a class, or the declaration of an entity, or
formal routine argument. Examples of the three types of attachments
are as follows.
A class that is declared as separate (as ROOT in
(1)) cannot be declared as expanded or deferred; nor is its property
of being separate inherited. A separate
class executes in its own thread; thus, service requests (i.e., feature
calls) to instances of a separate class may need to block or wait until
the thread is available to execute the request.
An entity or argument declared as separate (e.g.,
as in (2) and (3) above) indicates that
the data attached to the entity or argument may be shared between threads.
Thus, synchronisation facilities must be provided so that, e.g., mutually
exclusive writes to shared data
take place. Entity x can only be declared as separate if PROCESS in
(2) is not deferred
or expanded.
SCOOP is based upon the notion of a processor, which defines
a unit of execution in an OO system. When a separate object (defined in the sequel) is created,
a new processor is also created to handle its processing. Thus, a processor is an autonomous
thread of control capable of supporting sequential instruction execution
[10]. A system in general may have many processors associated with it. Compton [4] introduces
the notion of a subsystem – a model of a processor and the set of objects it
operates on – to distinguish the execution of sequential and concurrent programs. In his terminology,
a separate object is any object that is in a different subsystem.
Routine calls
In Eiffel, the standard syntax for routine calls is (i)
a.c(a) for a command c, which may
change the state of the object attached to x, and (ii) y := a. f (a)
for a side-effect free function f . In sequential Eiffel, and in both cases, when executing
the routine call, execution
switches to the object attached to x, the routine executes,
and (perhaps after storing a result),
execution continues at the next instruction. Now suppose that either
x is attached
to a separate object, or that the type of x is separate. For the call
x.c(a), execution on
the current object and x synchronise; x registers
the fact that c was called and either starts
execution of c immediately, or when the next opportunity arises.
Then both the current
call and x.c(a) can proceed concurrently.
If there are multiple pending requests for calls
on x, they are queued and served in first-in-first-out order.
For case (ii), where a result is needed from a separate call, a restricted
version of the wait-by-necessity mechanism of Caromel [3] is used, because the result
of a call to x. f (a)
may not be available when the assignment y := x. f (a)
can take place. In SCOOP, further
client calls on x will wait until the query call x. f (a) has terminated.
Waiting
Eiffel introduces require and ensure clauses
for specifying the pre- and postcondition of routines. In a sequential programming, a require clause
specifies conditions that must be established and checked by the client of the routine; the ensure clause
specifies conditions on the implementer of the routine. In a SCOOP Eiffel program, a require clause
on a routine belonging to a separate object specifies a wait condition:
if on a call to x.r(a),
where x is attached to a separate object, the routine’s require clause
is false, the processor associated with the object should wait until it is true before proceeding
with routine execution.
Object reservation
There are many situations in a concurrent OO program
where exclusive use of a separate
object is required. In order to retain consistency and correctness,
there must be some
mechanism for stopping or pausing any interleaving of concurrent calls.
SCOOP enables
this by altering the semantics of argument passing. Consider the call
Exclusive locks should be obtained
on x and y before the call to r starts; all locks must be
obtained before the processor executes the call1.
Consistency rules
A SCOOP program may have both separate and non-separate
objects. It is essential to
guarantee that an entity declared as non-separate (e.g., x : T)
can never be attached to a
separate object; this could lead to race conditions and object inconsistency.
In order to
prevent this, Meyer introduces four consistency rules [10].
- If the source of an attachment is separate, the destination
entity must be separate as
well.
- If an actual argument of a separate call is of reference type,
the corresponding
formal argument must be separate.
- If the source of an attachment
is the result of a separate call to a function returning
a separate type, the target must be separate.
- If an actual argument
or result of a separate call is of expanded type, its base class
may not include any non-separate attribute of a reference type.
Eiffel Threads
A simple threading mechanism is provided as part of a library
that comes with ISE’s
distributions of EiffelStudio. To make use of threads, i.e., to implement
a class that defines
an Eiffel thread, a developer writes a new class that inherits from
the interface THREAD.
This class provides the following fundamental
routines:
- execute: the routine to be executed by the new thread.
In general, this must be
implemented by the developer.
- join: the calling thread waits for the current child thread
to terminate.
- launch: initialise a new thread running execute.
- join all: the calling thread waits for all other threads
to terminate.
The class THREAD_CONTROL provides control over thread execution.
Typically
the root class of an Eiffel application inherits from THREAD_CONTROL,
and uses its join and join_all routines to manage execution
of spawned child threads.
The library also provides basic concurrent
functionality, particularly
through the class MUTEX, which provides a synchronisation object.
In [4],
the SCOOP proposal of Meyer is implemented in the framework of
the GNU
SmartEiffel compiler and run-time system. We now describe the SECG
code generator,
which translates SCOOP Eiffel programs that use the separate mechanism,
into multithreaded
Eiffel applications.
3 THE SCOOP-TO-EIFFEL CODE GENERATOR
The SCOOP-to-Eiffel Code Generator
(SECG) tool provides implicit support for the
SCOOP proposal by translating an Eiffel program that makes use
of separate classes,
arguments, and entities, into one that makes use of threads and
the Eiffel class THREAD,
which is available with distributions of EiffelStudio. No changes
to the EiffelStudio compiler
or run-time system are needed, and all Eiffel programming constructs
can be used,
including once routines. In an informal sense, SECG implements
a refinement of the
SCOOP specification into Eiffel classes and statements that do
not make use of separate;
we discuss this further in the sequel.
The basic mechanism underlying
SECG is to add mutexes and buffers to separate classes
in order to keep track of pending requests made by clients to make
use of services.
Additional and similar changes are made to separate entities and
separate arguments to introduce
mutexes, allowing synchronisation and mutually exclusive access.
Each separate
class, when translated, inherits from THREAD and is provided
with a buffer containing
pending services requests (i.e., feature calls). The root class
of the system simply executes
all threads; each thread, indefinitely, removes a pending request
for service and executes
the request.
We first describe the general translation scheme used by
SECG, and then illustrate its
use with two examples.
The SECG tool accepts a single command-line parameter
indicating the name of a project file. The project file specifies the names of all Eiffel
classes (and thus, all .e files)
to be included in the project. As well, the root class of the project
must be specified with
the keyword root prepended.
Using the information provided in the project
file, the generator scans the files included
in the system. The generator then produces the code as follows.
- THREAD_CONTROL is added as a superclass of the root class. This
provides the
root of the application with control over thread execution. The
root class is responsible
for making sure that, when the application terminates, all pending
service
requests on all threads in the application have been handled.
- All
classes inherit from EXCEPTIONS.
- requests_pending and requests_pending_mutex are
added as attributes to the root
class. The former attribute is used as a resource monitor for the
root class, while the
latter attribute synchronises access to the monitor (since
clients may make service
requests of the root class).
- The following features are also declared
and implemented in the root class.
is_request_pending is used to determine if there are pending
accesses to the root.
As well, a general-purpose rescue routine is provided to flag exceptional
behaviour
- Each class declared as separate inherits from THREAD;
thus, each separate class
has its own thread. The basic idea in translating a separate class
is to provide a
buffer for service requests (along with a mutex to ensure synchronised
access).
The following attributes are declared.
The attributes prefixed with request are used to
ensure mutually exclusive access
and also to buffer the requests for access; concurrent requests
for service are, of
course, queued. The attributes prefixed with current store
the current feature (service)
being requested and the arguments supplied to the call. Requests
for services
are stored as tuples, containing the target of the service request
and the name of the
service requested, encoded as a string. Decoding takes place in
the execute routine
of the thread.
Additional routines must be added to each separate class
in order to provide mutually
exclusive access and FIFO buffering of service requests. is_requests_pending and rescue_SCOOP are identical to the ones defined in the
root class above; we do
not repeat their definitions here. The routine set_feature_to_do simulates
a feature
call that is pending. It will first obtain the lock on the pending
requests mutex,
and increase the number of pending requests. The buffer of pending
requests is
extended with suitable arguments.
get_feature_to_do removes a pending request from the buffer,
if one exists; otherwise,
a dummy empty request is returned, which can be used as a termination
signal
to a controlling thread, e.g., the root.
Separate entities and arguments
Changes must also be made to entities
declared as separate. The declaration
in a SCOOP Eiffel program is replaced
by SECG with the declarations
A similar addition is made for
separate arguments: a mutex is added for each separate
argument, and the separate keyword is removed. This
is illustrated in the examples in the
next section.
Creation procedures
Given that separate classes and entities are being
replaced with threads, buffers, and mutexes,
the creation procedures of translated separate classes must be
extended to initialise
mutexes and service request buffers accordingly. In the declaration
of the creation procedures
of separate classes, two arguments are added:
Initialisation is also provided for
these attributes in all creation procedures of separate
classes. At the start of the creation procedure of the root class
the following instructions
are added:
At the end of this creation procedure we add instructions
which guarantee correct
completion of the application. All requests for service that are
still pending are removed
from the buffer, and then the routine join_all of class THREAD is
called; the root class will then wait (and termination of the application
will therefore
wait) until all threads have
finished execution.
In the creation procedures of separate classes we add the following
instructions, which
initialise the pending services request buffer to empty, and initialise
the mutex for the
class.
Calls
Finally, we can translate calls to routines. We substitute calls
to features of formerly
separate classes as follows. The call
where p is an entity of a separate class,
and d is a separate reference, is translated to the call
The
first argument indicates the target of the feature call; the second
is a string encoding
of the feature being requested. Note that a mutex is supplied with
the separate
argument d so that mutually exclusive access can be arranged.
One question
remains: the above translation effectively buffers service
requests. So
when do service requests actually get processed, and features called?
This is carried out
in the routine execute, which must be implemented
by the translation of every separate class; execute is a deferred routine inherited from THREAD.
Effectively, all that execute does is remove a tuple from the request buffer, decodes the
feature to be executed, and
executes it. We illustrate this in the examples.
Finally, SECG automatically
places lock/unlock instructions where necessary, i.e.,
when attempting to write to formerly separate entities. This is
illustrated in more detail in
the next sections, where examples show how the conversion process
works.
4 ONE-ZERO EXAMPLE
Our first example is called one-zero; it is intentionally
simple in order to illustrate the
basic conversion process. We assume that we have two classes, PROCESS and DATA. PROCESS is a separate class, while DATA is used to
represent shared data; thus, access
to an entity of type DATA should be synchronised in some way.
We will create three
entities of class PROCESS, which will access a synchronised entity
of type DATA. We
will use the class PROCESS further in the next section, where
we show the effect of
applying SECG to it.
SCOOP source
Consider the following SCOOP Eiffel program, consisting
of a single root class. The
program creates tree entities of separate class PROCESS, which
will access the separate
entity of type DATA. The details of class PROCESS are
in the next section, but for now it
suffices to know that all the run routine of PROCESS can
do is either set the value stored
in d to 0 or 1, or print the stored value in d.
Generated source
After applying SECG to the above class, the following
result is generated. First, inheritance
from THREAD_CONTROL and EXCEPTIONS is added. Further,
a mutex is
added for separate entity d. Since we have several threads (because
each process p1, p2,
and p3 are separate entities) – each of which can place service
requests to the others – we
need to know when requests were executed and if there is a need
to continue thread execution. We thus introduce variables to keep
track of pending requests (and their number).
Once all requests have been executed (i.e., requests_pending is
zero), thread execution
can terminate. The following source is therefore generated.
The attributes from the source file are translated directly, with
the separate keyword
removed.

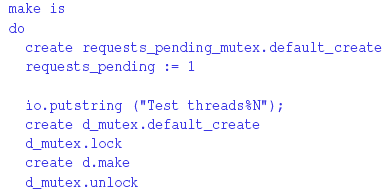

make must be modified according to the translation
scheme described in the previous
section. Its purpose is to start the three processes. First, it
initialises requests_pending to
1 since the creation procedure is a service that can make further
requests. It then initialises
the attribute d and its mutex.
Next, we translate the statements contained in the body
of the original make procedure.
The statements are create statements and process run statements.
For translating
the create statements, we add requests_pending and
requests_pending_mutex parameters,
and also d_mutex since the attribute d is declared
as separate and we may need to synchronise
access to it. After creating each PROCESS object, we launch
the corresponding
thread.
We must next translate the run feature calls. As with any
feature call, it is translated
to invocations of thread set_f_eature_to_do calls, which effectively
inform the thread that
a service request of the feature specified as a parameter is being
made; the thread can then
buffer the service request and carry it out as soon as possible.
Finally, all pending requests must be removed from the buffer
for the class, and the
root class thread must wait until all other threads have terminated,
before it can terminate
The above translated program compiles and executes
under EiffelStudio 5.2.
5 EXAMPLE: CLASS PROCESS
The example of the preceding section makes
use of the separate class PROCESS. We now
show how SECG translates this separate class into a threaded Eiffel
class. PROCESS is a
straightforward class, possessing a name, an option, and shared
data. When the process
runs, it can do one of three things: sets its shared data to 0;
to 1; or view and print its data. Here is its source:
SECG must carry out several tasks in translating this class:
it must implement mutexes
for separate entities, add inheritance clauses for the separate
class, and translate the
separate arguments in make. An implementation must also be provided
for the execute feature, which must be implemented in any class that inherits from
THREAD. execute simply takes requests from the pending buffer and executes the
corresponding feature
(either run or print_me). Here is a snapshot of the translation.
As discussed in Section 3, a number of features will be automatically
added by SECG
for keeping track of pending requests to a (translated) separate
object, to keep track of
which feature is being called by a thread, and to handle exceptions.
These features, such
as requests_pending and set_feature_to_do, are added
to the translate of PROCESS at
this state, as described in Section 3.
Next, SECG copies over attributes from the separate class PROCESS into
the threaded version; this includes option, data, and name. The creation procedure
make is then translated,
adding three new arguments: d_mutex (to handle mutually exclusive
access to the
data), requests_pending, and a mutex. Finally, run can
be translated, and at this point we
can illustrate the addition of locking and unlocking of mutexes,
which must be before and
after accessing any shared (separate) entities.
Limitations
A SCOOP program that is translated using SECG
is not guaranteed to be deadlock free:
if a programmer misuses shared data or synchronised processes,
it is not difficult to introduce
deadlock (or livelock) among threads. It is not clear, based on
[10], to see how
deadlock freedom can be guaranteed for SCOOP programs.
The SCOOP proposal
in [10] allows local variables to be declared as separate.
This is not permitted in SECG; any locals declared as separate will
not be translated correctly,
nor will the resulting program compile. An entity declared as local has
its lifecycle linked to that of the execution of its enclosing routine.
Once the routine
terminates, any object
attached to the entity will be destroyed. An entity declared as
separate is intended to
be (potentially) shared by multiple threads; thus, it seems that
declarations of local and separate are incompatible. It remains for future
work to investigate whether the two
mechanisms can be reconciled.
There are no further limitations with
SECG: any valid Eiffel constructs, including once routines and expanded types
can be used. Because SECG is a pre-processor, and
because it implements separate classes and entities in terms of
THREADs, instead of
modifying the underlying run-time system, it should not be affected
by changes to the
Eiffel language, e.g., additions of new constructs.
Soundness
The soundness of SECG has not been proven, though the tool
has been tested extensively
on a number of case studies. Soundness could be proven by appealing
to the Eiffel Refinement Calculus (ERC) [11]. This calculus provides
a formal semantics for a subset
of Eiffel (including feature calls and reference types). The calculus
currently supports
real-time specification, but it could be extended to concurrency
and multi-threading; the
calculus is built atop Hehner’s predicative programming calculus
[6], which supports concurrency
and communicating processes. The calculus could then be used to
give a formal
semantics to separate classes and entities. Thereafter, it could
be shown that a class
produced by SECG refines a separate class in SCOOP.
6 CONCLUSIONS
We have given an overview of the SECG tool, which implements
the SCOOP concurrency
proposal for Eiffel by translating Eiffel programs that use separate entities
and classes into threaded applications. Two examples have demonstrated
the process, and limitations
with the tool have been discussed. With some work and tuning
for efficiency, a mechanism
like SECG could form the basis for an industrial-quality implementation
of the SCOOP
mechanism in open-source Eiffel compilers.
The latest alpha version
of SECG can be obtained from the authors. SECG is itself written
in Eiffel, and has been tested and evaluated under ISE EiffelStudio
5.2.
Footnotes
1 In general, locks need only
be obtained if a feature is called on an argument in the body of r.
REFERENCES
[1] B. Alpern et al. "The Jalapeno Virtual Machine".
IBM Systems Journal 39(1), 2000.
[2] I. Attali and D. Caromel. "Formal
Properties of the Eiffel// Model". Parallel and Distributed
Objects, 1999.
[3] D. Caromel. "Towards a method of object-oriented concurrent
programming". Comm.
ACM 36(9), September 1993.
[4] M. Compton. "SCOOP: an Investigation of
Concurrency in Eiffel", MSc Thesis, Australian
National University, 2000.
[5] J. Gosling, B. Joy, and G. Steele. The
Java Language Specification, Second Edition,
AWL, 2000.
[6] E.C.R. Hehner. A Practical Theory of Programming, Second
Edition, Springer-Verlag, 2003.
[7] G. Jalloul. "Communicating Sequential Systems". Journal
of Object-Oriented Programming,
2000.
[8] C.-H. Jo, C.-J. Lee, and J. Son. "A realization
of a concurrent object-oriented programming
language". In Proc. ACM Symposium on Applied Computing
1998, ACM
Press, 1998.
[9] D. Konstantas, O. Nierstrasz, and M. Papthomas.
An implementation of Hybrid, a
concurrent object-oriented language. Technical
Report, University of Geneva, June
1998.
[10] B. Meyer. Object-Oriented Software Construction,
Second Edition, Prentice-Hall,
1997.
[11] R. Paige and J. Ostroff. "ERC: an Object-Oriented
Refinement Calculus for Eiffel", to
appear in Formal Aspects of Computing, Springer-Verlag,
2004. Draft available at http://www.cs.yorku.ca/techreports/2001.
[12] Y. Yokote and M. Tokoro.
"Experience and evolution of Concurrent Smalltalk". SIGPLAN
Notices 22, October 1987.
About the authors
|
 |
Oleksandr Fuks is a Masters student at York
University, Toronto, Canada, expecting to complete his thesis
in 2003. Email:
nati@cs.yorku.ca.
|
|
|
Jonathan Ostroff is an associate professor at York
University, Toronto, Canada, where he leads research on object-oriented
design, formal methods,
and real-time software development. Email: jonathan@cs.yorku.ca.
|
|
|
Richard Paige is a lecturer at the University of
York, UK, where he
works with the High-Integrity Systems Group and is a co-leader of the
Software and Systems Modelling Team. He carries out research in
object-oriented development, formal methods, security, and distributed
systems. He completed his PhD in Computer Science at the University
of Toronto in 1997. Email: paige@cs.york.ac.uk.
|
Cite this article as follows: Oleksandr Fuks, Jonathan S. Ostroff,
Richard F. Paige: ”SECG: The
SCOOP-to-Eiffel Code
Generator”, in Journal of Object Technology, vol. 3,
no. 10, 2004, pp. 143-160. http://www.jot.fm/issues/issues
2004 11/article3
|
