| .NET TECHNOLOGIES 2004 WORKSHOP, PILSEN |
|
Bigloo.NET: compiling Scheme to .NET CLR
Yannis Bres, Bernard Paul Serpette, Manuel Serrano, INRIA Sophia-Antipolis, France |
 |
PDF Version |
Abstract
This paper presents the compilation of the Scheme programming language
to .NET.
This platform provides a virtual machine, the Common Language Runtime
(CLR), that
executes bytecode, the Common Intermediate Language (CIL). Since CIL
was designed
with language agnosticism in mind, it provides a rich set of language
constructs and
functionalities. As such, the CLR is the first execution environment
that offers type
safety, managed memory, tail recursion support and several flavors
of pointers to
functions. Therefore, the CLR presents an interesting ground for functional
language
implementations.
We discuss how to map Scheme constructs to CIL.We present
performance analyses on
a large set of real-life and standard Scheme benchmarks. In particular,
we compare the
speed of these programs when compiled to C, JVM and .NET. We show that
in term
of speed performance of the Mono implementation of .NET, the best implementing
running on both Windows and Linux, still lags behind C and fast JVMs
such as the
Sun’s implementations.
1 INTRODUCTION
Introduced by Microsoft in 2001, the .NET framework has many similarities
with the
Sun Microsystems Java Platform [11]. The execution engine, the Common
Language
Runtime (CLR), is a stack-based Virtual Machine (VM) which executes
a portable
bytecode: the Common Intermediate Language (CIL) [10]. The CLR enforces
type
safety through its bytecode verifier (BCV), it supports polymorphism,
the memory
is garbage collected and the bytecode is Just-In-Time [1,21] compiled
to native code.
Beyond these similarities, Microsoft has designed the
CLR with language agnosticism
in mind. Indeed, the CLR supports more language constructs than the
JVM:
the CLR supports enumerated types, structures and value types, contiguous
multidimensional
arrays, etc. The CLR supports tail calls, i.e. calls that do not
consume
stack space. The CLR supports closures through delegates. At last,
pointers to
functions can be used although doing so leads to unverifiable bytecode.
The .NET
framework has 4 publicly available implementations:
- From Microsoft, one commercial version and one whose sources
are published
under a shared source License: Rotor [20]. Rotor was released for
research
and educational purposes.
- From DotGNU, the Portable.Net GPL project provides a quite
complete runtime
and many compilation tools. Unfortunately, it does not provide
a full-fledged JIT [24].
- From Novell, the Mono Open Source project offers a quite
complete runtime
and good performances. In term of performance, Mono is the best
implementation
of .NET that runs on both Windows and Linux.
As for the JVM, the .NET
framework is appealing for language implementors. The
runtime offers a large set of libraries, the execution engine provides
a lot of services
and the produced binaries are expected to run on a wide range of platforms.
Moreover,
we wanted to explore what the “more language-agnostic” promise
can really
bring to functional language implementations as well as the possibilities
for language
interoperability.
Bigloo
Bigloo is an optimizing compiler for the Scheme programming
language (see R5rs
[9]). It targets C code, JVM bytecode and now .NET CIL. In the rest
of this presentation,
we will use BiglooC, BiglooJVM, and Bigloo.NET to refer to the specific
Bigloo backends. Benchmarks show that BiglooC generates C code whose
performances
are close to human-written C code. When targeting the JVM, programs
run,
in general, less than 2 times slower than C code on the best JDK implementations
[14].
Bigloo offers several extensions to Scheme [9] such as: modules
for separate compilation,
object extensions à la Clos [5] with extensible classes
[17] and optional type
annotations for compile-time type verification and optimization.
Bigloo
itself is written in Bigloo and the compiler is bootstrapped on all
of its three
backends. The runtime is made of 90% of Bigloo code and 10% of C,
Java, or C#
for each backend. Outline of this paper
Section 2 presents the main techniques used to
compile Bigloo programs to CIL and
JVM bytecode. Section 3 enumerates the new functionalities of the .NET
framework
that could be used to improve the performances of produced code. Section
4 details
some practical issues that we faced while using the .NET framework.
Section 5
compares the run times of several benchmarks and real life Bigloo programs
on the
three C, JVM and .NET backends.
2 COMPILATION OUTLINE
This section presents the general compilation
scheme of Bigloo programs to .NET
CIL. Since the CLR and the JVM are built upon similar concepts, the
techniques deployed
for both platforms are quite close. The compilation to JVM being thoroughly
presented in a previous paper [14], a more shallow presentation is
given here.
Data Representation
Scheme polymorphism implies that, in the general
case, all data types (numerals,
characters, strings, pairs, etc.) have a uniform representation. This
may lead to
boxing values such as numerals and characters, i.e., allocating heap
cells pointing to
numbers and characters. Since boxing reduces performances (because
of additional
indirections) and increases memory usage, we aim at avoiding boxing
as much as
possible. Thanks to the Storage Use Analysis [18] or user-provided
type annotations,
numerals or characters are usually passed as values and not boxed,
i.e. not allocated
on the heap any more. Note that in the C backend, boxing of integers
is always
avoided using usual tagging techniques [8]. In order to save memory
and avoid
frequent allocations, integers in the range [-100 ... 2048] and all
256 characters
(objects that embed a single byte) are preallocated. Integers are represented
using
the int32 type. Reals are represented using float64. Strings are represented
by
arrays of bytes, as Scheme strings are mutable
sequences of 1 byte characters while
the .NET built-in System.Strings are non-mutable
sequences of wide characters.
Closures are instances of bigloo.procedure, as we will see in Section
2.
Separate Compilation
A Bigloo program is made of several modules. Each
module is compiled into a
CIL class that aggregates the module definitions as static variables
and functions.
Modules can define several classes. Such classes are compiled as regular
CIL classes
(see §2). Since we do not have a built-in CIL assembler yet, we
print out each module
class as a file and use the Portable.Net assembler to produce an object
file. Once
all modules have been separately compiled, they are linked using the
Portable.NET
linker.
Compilation of functions
In Bigloo programs, functions can be separated
into several categories:
- Local tail-recursive functions that are not used as first-class
values are compiled
as loops.
- Non tail-recursive functions that are not used as first-class
values are compiled
as static methods.
- Functions used as first-class values are compiled as real
closures. A function
is used as a first-class value when it is used in a non-functional
position, i.e.,
used as an argument of function call or used as a return value
of function.
- Generic functions are compiled as static methods and use
an ad hoc framework
for resolving late binding.
Compiling tail-recursive functions
In order to avoid the overhead
of function calls, local functions that are not used
as values and always called tail-recursively are compiled into CIL
loops. Here is an
example of two mutually recursive functions:
These functions are compiled as:
Compiling regular functions
As a more general case, functions
that cannot be compiled to loops are compiled as
CIL static methods. Consider the following Fibonacci function:
It is compiled as:
Note also that if their body is sufficiently small, these functions
might get inlined
(see [16]). Compiling closures
Functions that are used as first-class values (passed
as argument, returned as value
or stored in a data structure) are compiled to closures.
In the C backend,
closures are implemented as structures that hold their arity, two
pointers to functions used depending on whether the function accepts
a variable or a
fixed number of arguments, and an inlined environment that contains
the variables
captured by the closure:
Therefore, the size of a closure structure depends on
the size of its environment.
In other terms, each closure has its own “type”. The functions
that implement the
closure are invoked with a pointer to the closure structure as their
first argument
so that they can check their arity and access the captured variables.
The total cost
of a closure invocation is two function calls and one indirect memory
access to read
the function pointer. For captured variables, the cost is that of an
indirect memory
access that goes through the environment (env0, env1, etc.).
The current
closure compilation scheme for the JVM and .NET backends comes from
two de facto limitations imposed by the JVM. First, the JVM
does not support
pointers to functions. Second, as to each class corresponds a file,
we could not
afford to declare a different type for each closure. We estimated that
the overload
on the class loader would raise a performance issue for programs that
use closures
intensively. As an example of real-life program, the Bigloo compiler
itself is made of
289 modules and 175 classes, which produce 464 class files. Since we
estimate that
the number of real closures is greater than 4000, compiling each closure
to a class
file would multiply the number of files by more than 10.
In JVM and
.NET classes produced by the compilation of Bigloo modules extend bigloo.procedure.
This class declares the arity of the closure, an array of captured
variables, two kind of methods (one for functions with fixed arity
and one for
functions with variable arity), and the index of the closure within
the module that
defines it. All the closures of a single module share the same entry-point
function.
This function uses the index of the closure to call the body of the
closure, using a switch. Closure bodies are implemented as
static methods of the class associated
to the module and they receive as first argument the bigloo.procedure instance.
The
declaration of bigloo.procedure is similar to:
Let’s see that in practice with the following program:

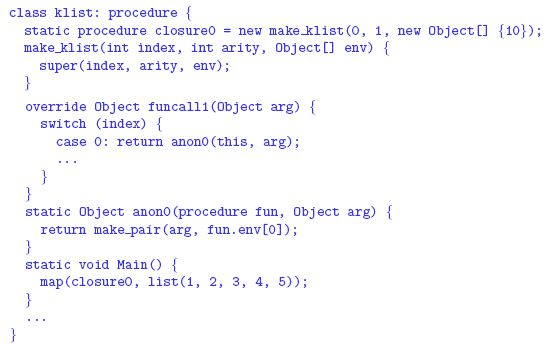

The compiler generates a class
similar to:
Compiling Generic Functions
The Bigloo object model [17] is inspired
from Clos [5]: classes only encapsulate
data and there is no concept of visibility. Behavior is implemented
through generic
functions, called generics, which are overloaded global methods whose
dispatch is
based on the dynamic type of their arguments. Contrarily to Clos, Bigloo
only
supports single inheritance and single dispatch. Bigloo does not support
the Clos
Meta Object Protocol.
In both the JVM and the CLR, the object model
is derived from Smalltalk and
C++: classes encapsulate data and behaviour, implemented in methods
which can
have different visibility levels. Method dispatch is based on the dynamic
type of
objects on which they are applied. Classes can be derived and extended
with new
data slots, methods can be redefined and new methods can be added.
Only single
inheritance is supported for method implementation and instance variables,
while
multiple inheritance is supported for method declarations (interfaces).
Bigloo
classes are first assigned a unique integer at run-time. Then, for
each generic
a dispatch table is built which associates class indexes to generic
implementations,
when defined. Note that class indexes and dispatch tables cannot be
built at compiletime
for separate compilation purposes. When a generic is invoked, the class
index of
the first argument is used as a lookup value in the dispatch table
associated with the
generic. Since these dispatch tables are usually quite sparse, we introduce
another
indirection level in order to save memory.
Whereas C does not provide
direct support for any evolved object model, the JVM or
the CLR do and we could have used the built-in virtual dispatch facilities.
However,
this would have lead to serious drawbacks. First, as generics are declared
for all
objects, they would have to be declared in the superclass of all Bigloo
classes. As
a consequence, separate compilation would not be possible any more.
Moreover,
this would lead to huge virtual function tables for all the Bigloo
classes, with the
corresponding memory overhead. Finally, the framework we chose has
two main
advantages: it is portable and it simplifies the maintenance of the
system. For
these reasons, the generic dispatch mechanism is similar in the C,
JVM and .NET
backends.
Continuations
Scheme allows a program to capture the continuation of
a computation. This continuation
can be used to escape from a pending computation, as an exception does,
or
it can be used to suspend, resume, or even restart the computation,
as coroutines or
threads! Continuations are captured by the Scheme function call-with-current-continuation,
or call/cc in short.
This function accepts one argument which
is, itself, a function of one argument. When a form (call/cc
f) is
evaluated, the
function f is invoked and the formal parameter
of f is
bound to the continuation of
the call/cc form. The program of Figure 1
illustrates how continuations are used.
The function same-fringe compare the fringe
of two trees.
Figure 1: Playing with continuations. The function same-fringe
compare
the fringe of two trees. It uses continuations to suspend/resume the
tree
traversals on each leaf.
Executing this program produces:
Continuations are difficult to
implement especially efficiently. The hardest part is
to save and restore the context from which call/cc is invoked. For
most language
implementations this context is made of a stack and a set of registers.
In consequence,
for these implementations, saving and restoring the context implies
saving
and restoring the stack. As already mentioned, Bigloo targets C, JVM
bytecode and
.NET bytecode. If the specification of the C programming language does
not impose
a stack, in practice C is always implemented with a stack. The JVM
and the .NET
virtual machines are specified as using a stack. Since none of these
platforms support
for explicit stack manipulation, one solution for implementing call/cc could
be to not use the native stack. We have rejected this approach because
we consider
its drawbacks too important:
- Managing a private stack is possible but it slows down
the performance of
the foreign function interface. It slows down the calls to the native
language
(namely C, Java, and C#) and the calls from the native language to
Scheme.
This is in contradiction with the Bigloo’s philosophy which
could be qualified
as zero overhead foreign function calls.
- Not using the natural style [19] of a platform.
That is, not using C code that
looks like hand-written C code, not using JVM bytecode that looks
like bytecode
produce by a Java compiler, or not using .NET bytecode that resembles
bytecode produced by a C# compiler jeopardizes performance because
platforms
are always optimized for the code they are expected to run. This
is
specially true when a JIT is involved. With these compilers, the
compilation
takes place at runtime. Hence long lasting compilations cannot
be afforded.
C, JVM and .NET except codes that use the native stack. Hence,
it might be
expected that C compilers and JITs are far less efficient on codes
that manages
their own stack. Doing so would thus slows down the speed of Bigloo
programs, which seems unacceptable for us.
Since we have decided to
use the natural style for each platform Bigloo compiles to
and since this style uses the native stack, we have to face the problem
of saving and
restoring it for implementing continuations. This is not possible on
all platforms.
If a tricky implementation in C using setjmp, longjmp and memcpy [15]
allows to
save and restore the stack, in the JVM and the CLR, the stack is read-only
and
thus cannot be restored. As a consequence, amongst its three backends,
Bigloo only
supports full continuations on its C backend. On the JVM and the CLR
platforms
a restricted version is proposed: continuations are first-class citizens
but they can
only be used within the dynamic extent of their capture. In other words,
on these
platforms, continuations can be used to implement escape operations
such as exceptions
but they cannot be used to implement operations such as suspending
and
resuming computations. As such, neither BiglooJVM nor Bigloo.NET conform
to
Scheme R5rs. In particular, the program of Figure 1 does not run on
the JVM and
the CLR. It only runs with the C backend. On the JVM and the CLR, Bigloo’s call/cc is
implemented by the means of linked exceptions. Capturing a continuation
installs an exception handler. Applying a continuation raises an exception
that is intercepted by the previously installed handler. On these platforms
Bigloo's call/cc has the expressiveness
of Java and C# exceptions.
3 .NET NEW FUNCTIONALITIES
In this section we explore the compilation
of Scheme with CIL constructs that have
no counterpart in the JVM.
Closures
If we consider the C implementation of closures as a performance
reference, the
current JVM and .NET implementations have several overheads:
- The cost of body dispatching depending on closure index
(in the C backend
pointers to functions are directly available) plus a method call.
- An additional indirection when accessing a captured variable
in the array
(in the C backend, the array is inlined in the C structures representing
the
closures).
- The array boundaries verification (which are not verified
at run-time in the C
compiled code).
The CLR provides several constructs that can be used
to improve the closure compilation
scheme: delegates, declaring a new class per closure, and pointers
to functions
[22]. We have not explored this last possibility because it leads to
unverifiable code.
Declaring a new type for each closure
Declaring a new type for each
closure, as presented in Section 2, would get rid of
the indexed function call and enables inlining of captured variables
within the class
instead of storing them in an array. However, as we have seen, each
JVM class is
stored in its own file and we can expect real programs to embed several
thousands
closures. For instance, the Bigloo compiler itself, which is a large
Scheme program,
embeds more than 4000 closures. Hence, we could not afford
to declare a new class
for each closure in the JVM backend: loading the closures would be
too much of a
load for the class loader.
This constraint does not hold in the .NET
framework as types are linked at compiletime
within a single binary file. However, loading a new type in the system
is
expensive: metadata have to be loaded, their integrity verified, etc.
Moreover we
noted that each closure would add slightly more than 100 bytes of metadata
in the
final binary file, that is about more than 400KB for a binary which
currently weights
about 3.8MB, i.e. a size increase of more than 10%.
Figure 2: Declaring one class per closure. This test compares
the performanceof two techniques for invoking closures: declaring
one type per
closure and indexed functions. Scores are relative to index
functions,
which is the 1.0 mark. Lower is better.
We have written a small benchmark program that declares
100 modules containing
50 closures each. For each module, the program calls 10 times each
50 closures
in a row. All closure functions are the identity, so this program focuses
on the
cost of closure invocations. Figure 2 shows that such a program always
runs at
least twice slower when we define a new type for each closure (Mono
crashes on this
test). Note that if the closures were invoked more than 10 times, these
figures would
decrease as the time wasted when loading the new types would be compensated
by
the acceleration of closure invocations. However, declaring one new
type for each
closure does not seem to really be a good choice for performances.
Using
Delegates
The CLR provides a direct support for the Listener Design
Pattern through Delegates
which are linked lists of couples <object reference, pointer to
method>. Delegates
are a restricted form of pointers to functions that can be used in
verifiable code while
real pointer to functions lead to unverifiable code. Declaring delegates
involves two
steps. First, a delegate is declared.
delegate void SimpleDelegate(
int arg );
Second, methods whose signature match its declaration are
registered. This is illustrated
by the following example:
void MyFunction( int arg ) {...} SimpleDelegate
d = new SimpleDelegate( MyFunction );
Figure 3 shows that our closure
simulation program also runs slower when using
delegates as surrogate pointers to functions instead of the indexed
call. Such a
result is probably due to the fact that delegates are linked lists
of pointers to methods
where we would be satisfied by single pointers to methods.
Figure 3: Compiling closures to delegates. This test compares the
performance
of two techniques for invoking closures: delegates and indexed functions.
Scores are relative to index functions, which is the 1.0 mark. Lower
is
better.
Tail Calls
The R5rs requires that functions that are invoked tail-recursively
must not allocate
stack frames. In C and Java, tail recursion is not directly feasible
because these two
languages do not support it. A well knonw technique called trampolining
technique
[2,23,7,13] allows tail-recursive calls. Since this technique imposes
a performance
penalty, we have chosen not to use it for Bigloo. As such, the Bigloo
C and JVM
backends are only partially compliant with the R5rs on this topic.
Figure
4: This test measures the impact of tail recursion on .NET (mono-0.30)
executions. Scores are relative to Bigloo.NET, which is the 1.0 mark.
Lower
is better.
In the CIL, a function call that precedes a return instruction
can be flagged as
tail-recursive. In this case, the current stack frame is discarded
before jumping to
the tail-called function. The CLR is the first architecture considered
by Bigloo that
enables correct support of tail-recursive calls. For the .NET code
generator, we have
added a flag that enables or disables the CIL .tail call
annotation. Hence, we have
been able to measure, as reported Figure 4, the impact of tail calls
on the overall
performance of Bigloo programs (see §7 for a brief description
of the benchmarks
used). As demonstrated by this experiment, the slowdown imposed by
flagging
tail calls is generally small. However, some programs are severely
impacted by tail
recursion. In particular, the Bague program runs 5 times slower when
tail recursion
is enabled! This toy benchmark essentially measures function calls.
It spends its
whole execution time in a recursion made of 14 different call sites
amongst which 6
are tail calls. This explains why this program is so much impacted
by tail recursion.
The tail-call support of the .NET platform is extremely
interesting for porting languages
such as Scheme. However, since tail calls may slow down performance,
we
have decided not to flag tail calls by default. Instead we have provide
the compiler
with three options. One enabling tail-calls inside modules, one enabling
them across
modules, and a last one enabling them for all functions, including
closures. Precompiling binaries
With some .NET platforms, assemblies (executables
and dynamic libraries) can
be precompiled once for all. This removes the need for just-in-time
compiling assemblies
at each program launch and enables heavier and more expensive program
optimizations. Precompiled binaries are specifically optimized for
the local platform
and tuned for special features provided by the processor. Note that
the original
portable assemblies are not replaced by optimized binary versions.
Instead, binary
versions of assemblies are maintained in a cache. Since .NET assemblies
are versioned,
the correspondance between original portable assemblies and precompiled
ones is straightforward. When an assembly is looked up by the CLR,
preference is
then given to a precompiled one of compatible version, when available.
Even
if precompiling binaries is a promising idea for realistic programs
such as Bigloo
and Cgc (a simple C-like compiler), we have unfortunately measured
no improvement
using it. Even worse, we have even noticed that when precompiled these
programs
actually run slower! Note that this experiment does measure the startup
time of
programs.
4 PRACTICAL ISSUES
Working from the JVM backend, it took approximately
less than 6 men-monthes to
get a mature .NET backend, properly bootstrap the compiler and have
the recette
working on all 4 implementations of the .NET framework. Apart from
the time
needed to generate correct .il files and
to port the Bigloo runtime, a lot of time has
been lost in supporting the 4 platforms, mostly because two of them
(Portable.NET
and Mono) were quite immature at that time and contained a lot of bugs
that we had
to report and find temporary workarounds for. Although the CIL is portable,
the
format of .NET object files is not fully specified. Thus, we have to
produce .il files
that must be assembled and then linked. Unfortunately, the Microsoft
assemblers
require references to external types to mention the assembly in which
the types are
defined, although finding this information is the job of a linker.
As Mono does not
provide an assembler yet, we had to use Portable.NET one. Unfortunately
again,
assemblies produced by Portable.NET are not accepted by the Microsoft
CLR nor
Rotor, although Microsoft disassemblers accept them. Therefore, in
order to be run
by the Microsoft CLR, our assemblies have to be disassembled and then
reassembled
by Microsoft tools, so that they can at last run on all 4 platforms!
5
PERFORMANCE EVALUATIONS
We have used a large set of benchmarks for estimating
the performance of the .NET
CLR platform. They are described in Figure §7, which also describes
the platform
we have used for these experiments. For measuring performance, we have
used Mono
.NET because it is the only implementation that is available on all
main operating
systems and because it delivers performance comparable to that of the
Microsoft
CLR (when ran on Windows).
Bigloo vs C#
Figure 5: This test compares the performance of Bigloo.NET
vs C# running
on mono-0.30. Scores are relative to BiglooC, which is the 1.0 mark.
Lower is
better.
To assess the quality of the CIL code produced by the Bigloo.NET
compiler, we
have compared the running times of the Bigloo generated code vs. regular
humanwritten
code in C# on a subset of our programs made of micro benchmarks that
were
possible to translate within reasonable time. For this experiment we
use managed CIL code. That is, bytecode that complies
the byte code verification rules of the
CLR. Figure 5 shows that most Bigloo compiled programs have performances
that
are quite on par with their C# counterparts, but for Almabench and
Fft. Actually
the Bigloo version of these two benchmarks suffer from the same problem.
Both
benchmarks are floating point intensive. The Bigloo type inference
is not powerful
enough to get rid of polymorphism for these programs. Hence, many allocations
of floating point numbers take place at run-time, which obviously slows
down the
overall execution time.
Platform and backend benchmarks
Figure 6: This test compares BiglooJVM
(running on Sun JDK 1.4.2) and
Bigloo.NET (running on mono-0.30). Scores are relative to BiglooC,
which is
the 1.0 mark. Lower is better.
Figure 6 shows the running times of several
real-life and standard Scheme benchmarks
for all three Bigloo backends. Since we are comparing to native code
where no
verification takes place, we have decided to measure the performance
of unmanaged CIL bytecode and JVM bytecode that is
not conform to the JVM bytecode verifier.
(Figure 12 presents figures for unmanaged and managed CIL
bytecode.)
In general, Bigloo.NET programs run from 1.5 to 2 times slower
than their Bigloo-JVM counterpart. The only exceptions are Earley and
Rgc for which Bigloo.NET
is faster. These two programs are also the only ones for which the
ratio Bigloo-
JVM/BiglooC is greater than 4. Actually these two programs contain
patterns that
cause trouble to Sun’s JDK1.4.2 JIT used for this experiment.
When another JVM
is used, such as that of IBM, these two programs run only twice slower
than their
BiglooC counterpart.
The benchmarks test memory allocation, fixnum and
flonum arithmetics, function
calls, etc. For all these topics, the figures show that the ratio between
BiglooJVM
and Bigloo.NET is stable. This uniformity shows that BiglooJVM avoids
traps
introduced by JITted architectures [14]. The current gap between
JVM and .NET
performance is most likely due to the youth of .NET implementations.
After all,
JVM benefits from 10 years of improvements and optimizations. We also
remember
the time where each new JVM was improving performance by a factor of
two!
Impact of the memory management
Figure 7: Memory consumption on 32 bits architectures. Amount
of memory are expressed in MegaBytes. The CLR implementation is mono-0.30.
Both
BiglooC (native) runtime system and Mono VM use the garbage collector
developed by H-J Boehm [6]. Hence, it is relatively easy to compare
the memory
management of the two backends. This comparison concerns two different
aspects:
the memory consumption and the speed of allocation/deallocation.
As
reported in Sections 2, BiglooC uses traditional C techniques for minimizing
the memory space of common objects [8]. C enables a fine grain control
over data
memory layout. This enables BiglooC to be more compact than Bigloo.NET.
Figure
7 presents the memory allocated when the benchmarks are ran with these
two
backends. The benchmarks that allocate too few objects such Almabench,
Bague, or
Mbrot have been eliminated from the table. As demonstrated by this
experiment,
in average, BiglooC allocates about twice less memory than Bigloo.NET.
The main
reason comes from tagging which is preferred, in BiglooC, to boxing.
The boxing
technique consists in allocating value in the heap and using pointers
to these memory
locations. The tagging technique consists in using some bits (in general
the least significant
ones) for encoding the type of the values, the remaining ones being
used for
representing the values themselves. More precisely, in BiglooC, integers,
pairs and
constants (e.g., booleans, characters, ...) are tagged using the two
least significant
bits. Of course, this downgrades arithmetic precision because integers
are only 30
bits long on a 32 bits architecture but this also significantly improves
performance
of program using fixed arithmetic. The pair objects are also represented
using an ad-hoc memory layout which requires exactly
two memory words: one word for the
head and another word for the tail. The type of the pair is encoded
in the least
significant bits of the pointer to the pair.
This compact representation
of pairs explains the memory consumption gap between
BiglooC and Bigloo.NET on many benchmarks. For instance, on benchmarks
such
as Beval, Boyer, Leval, Peval, Queens, Rgc, Sieve or Traverse pairs
represent more
than 90% of the overall allocations! The result of figure 7 are thus
unsurprising.
For other benchmarks such as Bigloo and Cgc tagged integers
also play an important
role in the economic memory consumption of BiglooC. These two programs
make
extensive use of bit vectors which are encoded using vectors of integers.
Hence
they consume more memory when integers are boxed (Bigloo.NET) than
tagged
(BiglooC).
Figure 8: This test measures the impact of multi-threading
on mono-0.30. Smaller is better.
In addition to using compact memory layout, BiglooC
tunes the Boehm’s
collector
for single threaded applications while Mono tunes it for multi-threading.
In order to
measure the impact of the memory management on performance, we have
compiled a
special BiglooC native version, called BiglooC/MT that used the very
same collector
as the Mono one. As reported on Figure 8 BiglooC/MT is no more than
10% slower
than BiglooC on real benchmarks. Therefore, we can conclude that if
the multithreaded
memory management slightly decreases the performance, by itself, it
is
not the culprit for the weaker performance of Bigloo.NET.
.NET framework
implementations
When measuring the performance of the four implementations
of the .NET framework
(Microsoft CLR, Microsoft Rotor, Novell Mono, DotGNU Portable.Net)
we
have found important disparities. We have found that the Microsoft’s
CLR is the
best implementation of the four platforms. The second one is Novell’s
Mono. In
general the Microsoft’s CLR delivers performance that are 20%˜30%
faster than
Mono. On few peculiar benchmarks, the difference of performance is
even much
more important. Unfortunately, because Microsoft does not allow to
publish benchmarking
results of .NET, we cannot report more precise information in this
paper1.
Next to Mono, comes the Microsoft’s Rotor implementation. Rotor
was released
for research and educational purposes. As such, Rotor’s JIT and
GC are simplified
and stripped-down versions of the commercial CLR, which leads to poorer
performances.
At last, the Portable.Net GPL shows the weakest performance because
it
does not provide a full-fledged JIT [24]. Hence, its speed cannot compete
with other
implementations so we will not show performance figures for this platform.
Performance
is not everything. If the Microsoft’s CLR has the
performance lead,
Mono has the advantage of being a portable implementation. It runs
on both Microsoft
Windows and Unix. As Java, it supports for runtime portability. This
makes
Mono an interesting platform to benchmark. Novell’s claims constant
evolution for
the Mono implementation. From a performance point of view, this is
not strongly
noticeable. The longly awaited version 1.0 does not significantly improve
the performance.
When it beats the former version 0.30, it reduces the execution times
of
10% to 20%. Unfortunately, on other benchmarks, it loses a lot (80%
on the Rgc).
For this reason, all the time figures reported in this paper have been
collected with
the former version 0.30 of Mono.
Figure 9: This test compares the performance of Bigloo.NET performance
on
mono-0.30 and mono-1.0.1. Scores of mono-1.0.1 are relative to mono-0.30,
which is the 1.0 mark. Lower is better.
Related Work
Besides Bigloo, several projects have been started to
provide support for Scheme in
the .NET framework. (i) Dot-Scheme [12] is an extension of
PLT Scheme that gives
PLT Scheme programs access to the Microsoft .NET framework. (ii) Scheme.NET2,
from the Indiana University. (iii) Hotdog3,
from Northwestern University. Unfortunately
we have failed to install these systems under Linux thus we do not
present
performance comparison in this paper. However, from the experiments
we have
conducted under Windows it appears that none of these systems has been
designed
and tuned for performance. Hence, they have a different goal from Bigloo.NET.
Beside
Scheme, there are two main active projects for functional language
support
in .NET: (i) From Microsoft Research, F#4 is
an implementation of the core of
the CAML programming language. (ii) From Microsoft Research
and the University
of Cambridge, SML.NET [4] is a compiler for Standard ML that targets
the .NET
CLR and which supports language interoperability features for easy
access to .NET
libraries. Only SML.NET seems to be implemented with high efficiency
as a stated
goal. Hence, we only present performance comparison with this system
in Figure 10.
These performance comparison must be read carefuly because it compares
equivalent
programs written in different languages. Even if Scheme and SML belong
to the same
programming language familly (strict functional languages supporting
side effects)
the Scheme writting style is different from the SML writting style.
Even if we have
tried our best at writting in the natural style of Scheme and SML
it might be that
some language or implementation idiosynchrasies disturb the experiment. No
paper currently describes the internal of the SML.NET compiler. From
private
discussion with the authors, it appears that SML.NET being based on
the former
MLj compiler [3], it shares many similarities with
this older compiler. Contrarly
to Bigloo, the SML.NET and MLj compilers do not support separate compilation.
If this might improve the performance of resulting programs because
it enables
global optimization, it also imposes upon users the burden of long
compilation
times. As presented in Figure 10 Bigloo.NET and SML have close performance.
Unsurprisingly, because the benchmarks are single-file programs using
very few library
functions, we do not see evidence that the whole-program compilation
strategy
of SML.NET significantly improves performance of this particular class
of applications.
More interestingly, this experiment shows that in the current state
of the art
of compiling functional languages, the dynamic type checking of Scheme
incurs no
or little performance penalty over languages that rely on static type
checking.
Figure 10: This test measures the performance of SML.NET Version 1.1
build
671 on mono-0.30. Scores are relative to Bigloo.NET, which is the 1.0 mark.
Lower is better.
6 CONCLUSIONS
We have presented the new .NET backend of Bigloo, an optimizing
compiler fo
a Scheme dialect. This backend is fully operational. The whole runtime
system
has been ported to .NET and the compiler bootstraps on this platform.
With the
exception of continuations, the .NET backend is compliant to Scheme
R5rs. In
particular, it is the first Bigloo backend that handles tail-recursive
calls correctly.
Bigloo.NET is available at: http://www.inria.fr/mimosa/fp/Bigloo.
In
conclusion, most of the new functionalities of the .NET framework are
still disappointing
if we only consider performance as the ultimate objective. On the other
hand, the support for tail calls in the CLR is very appealing for implementing
languages that require proper tail-recursion. .NET performance is improving
form
version to version. Bigloo.NET programs still run significantly slower
on the Mono
implementation than BiglooC and BiglooJVM programs. The same Bigloo.NET
programs runs better on the Microsoft’s CLR. Sadly, Microsoft
does not allow to
report on performance evaluation of this platform (see Section 5).
In consequence,
this paper does not report any precise information regarding the performance
of
Bigloo.NET on the Microsoft CLR.
Footnotes
1 When installing Microsoft.NET
framework SDK, one has to sign the following agreement: Benchmark
Testing. You may not disclose the results of any benchmarkk test of
the .NET framework
component of the Software to any third party without Microsoft’s prior
written approval. We
have never been able to get such an approval from Microsoft.
2 http://www.cs.indiana.edu/jgrinbla
3 http://rover.cs.nwu.edu/scheme
4 http://research.microsoft.com/projects/ilx/fsharp.aspx
BIBLIOGRAPHY
[1] Adl-Tabatabai, A. and Cierniak, M. and Lueh, G-Y. and
Parikh, V. and Stichnoth,
J. : "Fast, Effective Code Generation in a Just-In-Time Java
Compiler", Conference on Programming Language Design and Implementation,
Jun, 1998, pp.
280–190.
[2] Baker, H. : "CONS Should Not CONS Its Arguments,
Part II: Cheney on
the M.T.A <1>", Sigplan Notices, 30(9), Sep, 1995,
pp. 17-20.
[3] Benton, N. and Kennedy, A. Russel, G.: "Compiling Standard
ML to Java
Bytecodes", Int’l Conf. on Functional Programming,
1998.
[4]
Benton, N. and Kennedy, A. Russo, V.: "Adventures in Interoperability:
the
SML.NET Experience", 6th Acm sigplan International Conference
on Principles
and Practice of Declarative Programming (PPDP), Verona, Italy,
Aug, 2004, pp.
215–226.
[5] Bobrow, D. and DeMichiel, L. and Gabriel, R. and
Keene, S. and Kiczales, G. and
Moon, D.: "Common lisp object system specification", special
issue, Sigplan
Notices, (23), Sep, 1988.
[6] Boehm, H.J.: "Space Efficient Conservative
Garbage Collection", Conference
on Programming Language Design and Implementation, Sigplan Notices,
28(6), 1993,
pp. 197–206.
[7] Feeley, M. and Miller, J. and Rozas, G. and Wilson,
J.: "Compiling
Higher-Order
Languages into Fully Tail-Recursive Portable C", Rapport
technique 1078,
Université de Montréal, Département d'informatique
et r.o., Aug, 1997.
[8] Gudeman, D.: "Representing Type Information
in Dynamically Typed Languages– University of Arizona",
Departement of Computer Science, Gould-Simpson Building, The University
of Arizona, Tucson, AZ 85721, Apr, 1993.
[9] Kelsey,
R. and Clinger, W. and Rees, J.: "The Revised(5)
Report on the Algorithmic
Language Scheme", Higher-Order and Symbolic Computation,
11(1),
Sep, 1998.
[10] Lidin, S.: Inside Microsoft .NET IL Assembler, Microsoft
Press, 2002.
[11] Lindholm, T. and Yellin, F.: The Java Virtual
Machine, Addison-Wesley,
1996.
[12] Pinto, P. – Dot-Scheme A PLT Scheme FFI for the .NET
framework– Scheme workshop, Boston, MA, USA, Nov, 2003.
[13] Schinz, M. and Odersky,
M.: "Tail call elimination of the
Java Virtual Machine",
Proceedings of Babel’01, Florence, Italy, Sep, 2001.
[14] Serpette,
B. and Serrano, M., "Compiling Scheme to JVM bytecode:
a performance
study", 7th Int’l Conf. on Functional Programming,
Pittsburgh, Pensylvania,
USA, Oct, 2002.
[15] Serrano, M.: "Vers une compilation portable
et performante des langages
fonctionnels", Thèse de doctorat d'université,
Université Pierre et Marie Curie
(Paris VI), Paris, France, Dec, 1994.
[16] Serrano, M.: "Inline
expansion: when and how", Int.
Symp. on Programming
Languages, Implementations, Logics, and Programs, Southampton,
UK, Sep, 1997,
pp. 143–147.
[17] Serrano, M.: "Wide classes", ECOOP’99,
Lisbon, Portugal, Jun, 1999, pp. 391–415.
[18] Serrano, M. and
Feeley, M.: "Storage Use Analysis and its
Applications", 1st
Int’l Conf. on Functional Programming, Philadelphia, Penn,
USA, May, 1996, pp.
50–61.
[19] Serrano, M. and Weis, P.: "Bigloo: a portable
and optimizing compiler for
strict functional languages", 2nd Static Analysis Symposium,
Lecture Notes on
Computer Science, Glasgow, Scotland, Sep, 1995, pp. 366–381.
[20]
Stutz, D. and Neward, T. and Shilling, G.: Shared Source
CLI Essentials, O’Reilly Associates, March, 2003.
[21] Suganama, T. et al.: "Overview
of the IBM Java Just-in-time compiler", IBM
Systems Journal, 39(1), 2000.
[22] Syme, D.: "ILX: Extending the
.NET Common IL for Functional Language
Interoperability", Proceedings of Babel’01, 2001.
[23] Tarditi,
D. and Acharya, A. and Lee, P.: "No assembly required:
Compiling
Standard ML to C", ACM Letters on Programming Languages
and Systems, 2(1),
1992, pp. 161–177.
[24] Weatherley, R. and Gopal, V.: Design
of the Portable.Net Interpreter, Dot-GNU, Jan, 2003.
About the authors
APPENDIX: THE BENCHMARKS
Figure 11: Benchmark Descriptions.
Figure 11 is a short description of the
BglStone benchmark suite used in this paper.
The numbers of lines are always given for the Bigloo version of the
source files.
Figure 12 presents all the numerical values on Linux 2.4.21/Athlon
Tbird 1.4Ghz-512MB. Native code is compiled with gcc 3.2.3. The Java
virtual machine is Sun's
JDK1.4.2. The .NET implementation is mono-0.30. The JVM and the CLR are
multithreaded. Even single-threaded applications use several threads. In
order to
take into account the context switches implied by this technique we have
preferred
actual durations (wall clock) to CPU durations (user + system time). It
has been
paid attention to run the benchmarks on an unloaded computer. That is,
the wall
clock duration and the CPU duration of single-threaded C programs were
the same.
Figure 12: Benchmarks timing of Bigloo2.6e on an AMD Tbird 1400Mhz/512MB,
running Linux 2.4.21, Sun JDK 1.4.2, and mono-0.30.
Cite this document as follows: Yannis Bres, Bernard Paul Serpette,
Manuel Serrano: "Bigloo.NET: compiling Scheme to .NET CLR", in Journal
of Object Technology, vol. 3, no. 9, October 2004, Special issue: .NET
Technologies 2004 workshop, pp. 71-94.
http://www.jot.fm/issues/issues_2004_10/article4
|
