Design and implementation of a FIPA compliant agent platform
in .NET
Miguel Contreras, Ernesto Germán, Manuel
Chi and Leonid Sheremetov,
Mexican Petroleum Institute (MPI), Mexico |
 |
PDF Version |
Abstract
The aim of this paper is to describe the design and implementation
of an agent platform called CAPNET (Component Agent Platform based
on .NET) that is fully compliant with the specifications of the Foundation
for Intelligent Physical Agents (FIPA) and implemented as 100% managed
code in the .NET framework. The tools for the platform configuration
and administration are presented and a case study is provided that
shows the usability of the CAPNET in industrial and mission critical
scenarios.
1 INTRODUCTION
Agents can be defined to be autonomous, problem-solving computational
entities capable of effective operation in dynamic and open environments.
Agents are often deployed in environments in which they interact, and
maybe cooperate, with other agents (including both people and software)
that have possibly conflicting goals [Luck03].
Agent-based software should be robust, scalable and secure. To achieve
this, the development of open, stable, scalable and reliable architectures
that allow compliant agents to discover each other, communicate and
offer services to one another is required. These architectures go beyond
the capabilities of the typical distributed object oriented programming
techniques and tools. The FIPA's Agent Platform (AP) reference model
seems to be an effective approach to address this problem [FIPA00023].
An AP is a software architecture that controls and manages an agent
community allowing the survival and mobility of an agent in a distributed
and heterogeneous environment.
In the last few years, several APs have been developed with a special
attention paid to interoperability and compatibility issues. In this
sense, the FIPA reference model has emerged as a standard for interoperability
sustaining the development of APs. Most of the FIPA compliant APs were
developed in Java language, such as JADE [JADE00], FIPA-OS [Nortel99]
and Zeus [ZEUS00] just to mention a few of them. One exception to this
trend was the original CAP [Sheremetov01] agent platform implemented
using Microsoft DCOM and ActiveX technology. The purpose of CAP was
to enable the construction and operation of multi-agent systems (MAS)
using Windows programming languages and platform.
Our recent work has lead to the development of a completely new AP,
named CAPNET under the novel Microsoft .NET Framework and Compact Framework
in 100% managed code written entirely in the C# language. This new
agent platform uses several of the technologies available in .NET and
the Windows platform, such as Web Services (WS), remoting, asynchronous
callbacks, delegates, XML, database connectivity, performance counters,
event log, Winforms, Windows Services and network access, among others.
The main objective of CAPNET is to bring an integrated infrastructure
that covers the programming, deployment, administration and integration
with legacy applications of MAS (Fig. 1). It consists of a run-time
environment that supports MAS deployment, development environment in
the form of agent templates, programming tools and a component gallery
and some connectors to enable the integration with enterprise applications.
The run-time environment is described in this paper focused on the
design and technical details of its implementation targeting the .NET
Framework and Compact Framework. Some detailed information describing
agent templates implementation, are provided, focusing on internal
structure and mechanisms for its integration with the rest of the platform.
Inter-agent communication mechanisms are presented.

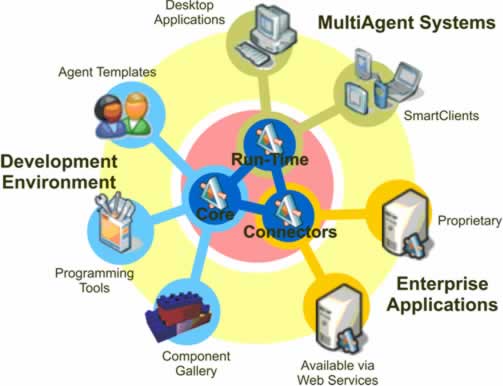

Figure 1. MAS development and deployment in CAPNET
This paper is structured as follows: in section 2, basic concepts
of agents and multi-agent systems are presented along with a short
description of the FIPA specifications that guided this work. In section
3, the CAPNET layered architecture is defined and its parts presented.
In section 4, this paper describes the particular implementation of
the FIPA reference model using .NET framework. Also this implementation
is extended by inclusion of the security layer responsible for maintaining
platform and infrastructure security described in [Santana03]. In section
5 the most important administrative tools for the platform are described.
Section 6 contains the implementation of the agent templates and its
features. In section 7 some experimental results from benchmark test
performed on the platform are analyzed, and a case study illustrating
the use of the AP in an industrial scenario is presented. Finally,
the main features and advantages of this work are discussed in section
8, comparing it with other implementations followed by conclusions
and future work.
2 AUTONOMOUS AGENTS
Multi-agent systems offer a new and often more appropriate way of development
of complex systems, especially in open and dynamic environments. Some
key features of the agent technology support these capabilities. The
autonomy and pro-activeness features of an agent allow it to plan and
perform tasks defined to accomplish the design objectives. The social
abilities enable an agent to interact in MAS and cooperate or compete
to fulfill its goals. An agent may be static or mobile. In the latter
case it is able to migrate along with its associated data, state, and
logic to another host to interact with local resources and other agents
to perform a given task.
Agents can be distinguished from objects (in the sense of object oriented
software) in that they are autonomous entities capable of exercising
choice over their actions and interactions. Agents cannot, therefore,
be directly invoked like objects. However, they may be constructed
using object technology [Luck03].
The open nature of the MAS is provided by the agent organization, similar
to that of distributed enterprises, and supported in the agent platform’s
tools, which are responsible to provide flexibility both in component
aggregation and interaction between them [Sheremetov03]. The AP reference
model of the FIPA provides the framework of normative work, inside
which the agents exist and operate; it also establishes the logical
and temporal contexts for the creation, operation and destruction of
agents [FIPA00023]. The reference model considers an AP as a set of
four components where every one represents a set of logical capacities
or services that can be combined in each AP concrete implementation:
Agents, Directory Facilitator (DF), Agent Management System (AMS),
and Message Transport System (MTS). The DF and AMS are special types
of agents that support the management of other agents, while the MTS
provides a message delivery service (Fig. 2).
The functionality of the main components of the FIPA spec is: the AMS
offers white pages services and agent’s life-cycle administration
service, maintaining a directory of agent identifiers (AID contains
the transport address by which an agent can be found) and the execution
state of each agent. AMS is a mandatory component in an AP and every
application agent must register itself with the AMS to permit the validation
of its identifier in the multi-agent environment. The DF is the component
that offers yellow pages service. Although it is an optional component,
multiple DFs can register in the AP. DF allows agents register their
services and be requested to find out the available distributed services
within agents community. The MTS is the software component controlling
all the message exchange within the platform, including messages to/from
remote platforms.
Figure 2. Agent Management Reference Model [FIPA00023].
Agents are the main parts of a platform. An agent encapsulates one
or more services inside a unified and integrated execution model. FIPA
maintains an open concept of what an agent is, to be able to include
different agent architectures, and not limit the form in which they
are implemented. The Software refers to all those systems that do not
have characteristics of agents but that are used by agents to fulfill
their tasks. Here, domain specific systems, as well as the Application
Programming Interfaces (API) for handling communication protocols,
databases, security algorithms, etc. are included. The AP internal
design is an issue in the specification that is not subject of standardization,
in the sense that agents can use any proprietary intercommunication
mechanism using any standard middleware.
3 CAPNET ARCHITECTURE
The main purpose of CAPNET design is to construct a platform that enables
developers to easily create and integrate distributed agent applications
in a consistent and scalable way. The platform should be able to interoperate
with applications developed in other APs as well.
The architecture of the CAPNET shown in Fig. 3 contains four main layers:
i) application agents, ii) agent management and directory facilitator
services, iii) built-in security services, and iv) message transport
system and connectivity techniques.
Figure 3. CAPNET architecture
In the Application Agents layer, the agents built from the agent templates
interact between them and with the platform. This layer provides the
functionality of the application MAS.
The administration services of the platform (AMS and DF) are located
just below the agents in the architecture because they administer the
life cycle and the directory of services provided by the agents.
In a heterogeneous multi-agent environment, security becomes an extremely
sensitive issue. Security risks exist throughout the whole agent life-cycle:
agent management, registration, execution, agent-to-agent communication
and user-agent interaction. Agent Platform Security Manager (APSM)
is responsible for maintaining platform and infrastructure security
policies, authentication and run-time activities, such as, communications,
providing transport-level security, and creating audit trails. The
APSM is responsible (i) for negotiating the requested inter- and intra-domain
security services with other APSM’s on behalf of the agents and
(ii) for enforcing the security policy of its domain. The description
of the APSM is out of the scope of this paper; more details on its
architecture and implementation can be found in [Santana03].
The services of transport, delivery and reception of messages represent
a central point within the CAPNET platform, supporting a wide variety
of transport types. Among the considered transport managers are all
those required to ensure platform interoperability with other widely
available APs such as those mentioned in section 1. In CAPNET, an agent
communicates with others using a service provided by the Message Transport
System (MTS). This level of abstraction allows developers of multi-agent
systems to design them based on schemes of loosely coupled messaging
systems between components. With this type of asynchronous messaging
the communication can be seen as a distributed messaging system similar
to a Message Oriented Middleware [Bernstein96] or publish/subscribe
architectures [Pallickara03].
To assure MTS reliability, some additional mechanisms are implemented.
When an agent sends a message, it knows if the MTS has delivered it
to the destination agents. If some addressee could not be contacted
then the emitting agent receives a notification indicating that the
message could not be delivered. It is the responsibility of the emitting
agent to maintain its state or to block its execution while waiting
for the answer.
Two cases for message delivery exist. The first one takes place when
the addressee agent is accessible through the same MTS and the internal
mechanism of the MTS is used. In the second case, the message addressee
is registered in other MTS. In this case, a component called Message
Transport Adapter (MTA) has been implemented to determine the type
of message transport that is needed to complete the operation and to
use the appropriate technological infrastructure for it. The MTA uses
the services of Message Transport Protocol Factory (MTPF) to instantiate
the component that really implements the access to the physical transport.
This component in our architecture is called Transport Manager (TM).
If a new transport mechanism is required, a new TM component has to
be created implementing the standard interface known by the MTPF and
the MTA. If that interface is implemented, the interaction with the
MTPF is assured and the particular implementation of the transport
mechanism is completely open to the developer, and can include any
form of communication both synchronous and asynchronous, such as raw
sockets, MSMQ, FTP, SMTP, etc. The TM has to be registered in the platform
in order to be used. At the time of writing the TMs for HTTP and .NET
Remoting have been implemented, and several more are in process.
In the next section, technical details of the CAPNET implementation
are described.
4 AP MESSAGING AND ADMINISTRATION IMPLEMENTATION
The Message Transport Mechanism
The MTS was implemented as a singleton remoteable object [Rammer01]
that can be instantiated by the agents in order to be able to send
and receive messages. This remote object is able to deliver messages
to the agents based on delegated method and publish/subscribe mechanisms
for events.
The mechanism for message delivery is a type of asynchronous callback
allowing messages to be delivered as they are received by the MTS.
The agents use a special class working like a listener of incoming
messages. This listener contains a delegate method, which is invoked
when the MTS receives a message.
When agents are initialized they subscribe to the MTS sending a listener
object. This object is registered in the events manager administered
by the MTS. When a message has to be delivered by the MTS, it consults
events manager to look for the listener of the destination agent of
the message. This way it can invoke the delegated method that was registered
for the listener of the agent.
If an agent wishes to send a message (Fig. 4), it contacts its MTS.
When a message is received by the MTS, it is processed as specified
by FIPA. When it is prepared for delivery to the destination agent(s),
if any of them is located in a different CAPNET, MTS contacts the MTA
to delegate the delivery. The MTA determines the required type of delivery
based on the destination agent’s address. Using this information
the MTA obtains a concrete TM from the MTPF. That TM is the object
capable of performing the real delivery of the message and once obtained,
the MTA invokes the delivery functionality on it.
Figure 4. Sequence for message sending.
When a TM receives a message, it extracts the important fields and
constructs a new platform specific Transport Message object to be sent
to the known MTA. This MTA forwards the Transport Message to the MTS,
which sends the message to the destination agent. Message receiving
is similar.
The AMS and DF Services
The AMS and DF services of the platform have been implemented using
a multi-tier architecture (Fig. 5). We shall only describe the AMS
Service, since the implementation of the DF is almost identical.
The agent tier is implemented by the functionality provided by the
BasicAgent class (described in the next section), and involves all
the communication, interaction and conversation mechanisms that provide
the social interaction capabilities. This layer is responsible for
listening to other agents requests, implemented as an Agent Communication
Language (ACL) request message specifying the action and its parameters,
and launching the corresponding services.
Figure 5. AMS Service implementation.
The application-logic tier is implemented in the services (actions)
that the AMS_Agent is able to perform, and which are requested by other
agents in conversations following predefined interaction protocols.
The actions that this agent is able to perform are: registration, deregistration,
modification of agent descriptions in the white page directory, and
search of agent descriptions.
The data access tier is implemented in the AMS_Component which is a
remoteable component hosted in a Windows Service. This component designed
as a “singleton” exposes two interfaces: the IAMS interface
for the AMS_Agent and the IAMSAdmin interface for the administration
and monitoring applications, such as the Society Viewer (that shows
the registered agents and their interactions) or the AMS_Administrator
among others.
The AMS_Component registers and updates constantly a set of performance
counters. These counters allow system administrators to monitor and
record the state of the platform and to raise events or generate alarms
under certain conditions they are interested in.
The data tier is implemented in a relational database using Microsoft
SQL Server as the data base management system that stores agent descriptions
of all the agents registered in the AP.
CAPNET interoperability extension
An interface allowing to expose the functionality of Agent Services
(AS) to web based systems and vice versa has been implemented as a
component of CAPNET allowing to consume the services of a MAS in a
service oriented (non-agent like) way.
Today, Web Services are believed to be the crucial technology for web
based business communities and can be seen as high-level interfaces
through which partners can conduct business operations. A current trend
is to WS-enable legacy applications allowing XML-based data exchange
between a legacy application and a software client [Plummer00].
In the WS – AS integration scenario it is easy to see the need
for some mechanism that allows agents to use the functionality provided
by systems based on WS either inside or outside the organization and
to allow those services to use the ones that agents in a MAS implement.
Integration of WS and AS requires the implementation of a bridge that
is able to listen for web requests and, at the same time, to communicate
with agents residing at the AP. Such a bridge has been built using
standard technologies (such as SOAP, XML, UDDI, WSDL, Etc. ) in order
to provide the functionality of MAS to the “outside world” and
to consume resources external to the AP. The implementation details
are discussed in [Sheremetov04b].
5 ADMINISTRATION TOOLS
Along with the platform, a set of tools for its configuration and administration
have been developed. These tools include a society viewer, a ping agent,
AMS and DF administrator, Pocket PC version of the AMS and DF administrator,
platform’s communication infrastructure configurator, etc. Only
the three most representative tools are described in this section because
of the space limits.
AMS administrator
One of the most important tools is the AMS administrator (Fig. 6),
because it allows monitoring of agents registered at the AP, their
state and properties. This tool keeps a log of all the events (registration,
deregistration and modification of agent’s properties) fired
by the AMS service. This administrator is able to send life cycle related
commands to the agents, such as destroy, quit, resume, suspend and
wakeup. It is also useful to deregister agents from the platform to
stop its execution or just to remove it in case it has terminated abnormally
without deregistering first. The AMS Administrator also shows the current
state of the AMS Windows Service and allows the user to start/stop
it. Currently the platform has a desktop and a Pocket PC version of
this tool with pretty much the same functionality.

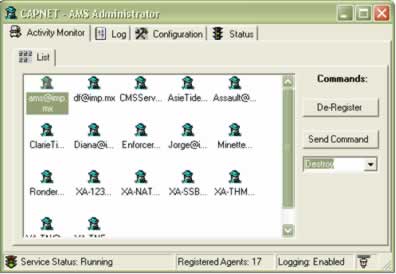

Figure 6. AMS Administrator.
This tool is designed to connect directly to the AMS_Componet using
the IAMSAdmin interface via .NET Remoting (Fig 7). When communication
using remoting is not possible (because of network restrictions or
using the Pocket PC version of the administrator) a Web Service is
used to form a bridge to the AMS_Component.
Figure 7. Connection of the AMS Administrator with the platform.
The latter approach however has a drawback: the administrator has to
request constantly the last state of the AMS, whereas using remoting
the Administrator is able to subscribe to the published events of the
AMS_component, in order to receive instant notifications of any changes
occurring in the AMS as a result of registration, deregistration or
modification of agent descriptions in the AMS.
Society Viewer
The Society Viewer (Fig. 8) is another important tool. It displays
CAPNET agents and messages they exchange. This tool is configured to
be connected to the AMS and MTS services. The AMS notifies to Society
Viewer about events related to the lifecycle of agents, so the tool
displays agents living within the platform and any change of the agent’s
state. On the other hand, the tool shows the messages exchanged between
agents when the MTS notifies it. When the Society Viewer shows the
dynamic behavior of the multi-agent systems running on CAPNET, it also
allows the developers to trace and debug the system’s execution,
making possible to detect errors in applications logic and resolve
more complex tasks, like load balance in agents work.
Figure 8. CAPNET Society Viewer
Society Viewer tool connects to AMS and MTS by subscribing to notification
of remote events from those services (using .NET Remoting again), registering
delegate methods which are invocated when those events are fired. Each
event fired by AMS is presented in Society Viewer using the information
related to the agent whose state is changing; specifically, the new
state of its lifecycle and an object AMSAgentDescription with complete
agent description. In the same way, the MTS fire an event as a result
of message delivering request from a source agent; then the Society
Viewer catches this event through its delegate method, receiving an
object TransportMessage and showing graphically this message, drawing
a link between source and target agents. By clicking this link, a Message
Viewer tool is invoked displaying all the fields from the ACLMessage
object (Fig. 9).
Figure 9. ACL Message Viewer
Communication Infrastructure Configurator
The Communication Infrastructure Configurator tool (Fig. 10) enables
us to specify parameters for MTS, and administer the execution of
this service. The MTS is hosted by a Windows service, which can be
started and stopped by the configurator tool.
By using this tool we can read and change the URI address where the MTS listens
from, in order to provide message exchange services for CAPNET agents. The
tool also maintains a log for relevant events happening in MTS, particularly
referred to successful and erroneous deliveries of messages. This log provides
valuable information of the activity in the system and can be saved to a XML
file to analyze it later.
In this tool CAPNET administrator are able to monitor system performance using
the information provided in the statistics section, where performance graphs
are generated in real-time to reflect the activity of the agents in the AP.
Finally, this configurator tool provides the functionality needed to send ping
messages to any agent registered in the MTS; a CAPNET administrator can use
this functionality to detect points of failure in the network where multi-agent
systems are running and even to perform debugging processes by determining
which agents are not reachable at any given time.
Figure 10. Communication infrastructure configurator tool
6 AGENT IMPLEMENTATION
The construction of a set of basic elements that constitute the internal architecture
of the agents in a FIPA compliant environment is crucial for application development.
These elements provide the ways to develop agents, their unique identifiers,
registry information, ACL message construction, message reception and handling,
content codification and representation with different content languages, the
platform services description and application agents services. In the following
sections these elements are described in more details.
Basic Agent
In order to be successful or, at least, easy to use, the AP has to provide
some mechanism for agents creation. Being the central element of the applications,
a basic agent class takes advantage of the entire infrastructure in a transparent
way. This class allows carrying out several tasks like i) instantiating the
local MTS and registering its listener in it for incoming messages reception,
ii) registering of AMS and DF services, and iii) processing of received messages.
AMS and DF registration have been implemented using the conversation mechanism
designed to control the messages exchange. This mechanism is described in the
following section.
In order to support agents programming for the AP, an API is included, providing
a set of core classes that define ontological objects in the domain of FIPA-compliant
platforms. The main objective is to facilitate agent and MAS development by
means of AP services, operating under the same principles of design and implementation.
In turn, this would allow accomplishing more general goals of interoperability
among heterogenous agent systems.
Agents must perform certain activities in order to access registration data
from other agents in the AP. That is why they need to use the core classes
extensively. In this sense, AID class represents the unique identifier for
each agent, containing information like its name and the set of transport addresses
where it can be located and contacted by other agents. AMS Agent Description
class, on the other hand, contains information related to each agent registered
in the AMS; for example, its AID, owner and current state. In the same way,
DF Agent Description class represents the description of agent services that
can be published by DF service, including the AID, a list of services and the
maximum lifetime for this description. The list of services contains a set
of objects of Service Description class, which uniquely describes each service
an agent provides.
As we mentioned before, agent communication based on message exchange lays
in the core of this reference model. In this sense, the ACL Message class provides
the functionality required for agents to be able to construct and send new
messages, according to established forms for agent communication language.
Every core class of CAPNET is defined using key-value tuples (KVTs). This is
very important for CAPNET extensibility; the key is the name for an attribute
defined in FIPA namespace and the value, which can be a FIPA attribute, a constant
or a specific type [Jas02]. This implementation encapsulates different sets
of attributes used in the components of the AP, and also some attributes required
for agent systems development.
By using KVTs, extensibility gets improved because the keys contained inside
a defined namespace have a well known programmatic interpretation for their
values. In the same way, flexibility gets improved through the use of values,
which are linked to well known keys. This is particularly crucial for implementation
abstraction, when the elements of AP are integrated with each other. APElement
interface is implemented by each class that can be represented by a KVT set.
In the following source code fragment APElement is shown:
APBasicElement abstract class, which implements APElement, is the base for
every class using the KVT model in CAPNET. In Fig. 11 a diagram for CAPNET
core classes is shown.
Figure 11. CAPNET Utility Classes Diagram.
Two mechanisms for message processing are developed: polling and callback.
Polling is the mechanism that allows an agent to process messages in
a synchronous way and is used by the conversations mechanism to control
the predefined message sequence in an interaction protocol. Callback
works similar to the MTS message delivery mechanism. Events are declared
in each agent to process each one of the message types or a pre-established
conversation. The particular mechanism to be used is dynamically determined
according to the attributes of the message (conversation-id and protocol).
Conversation Manager
A conversation manager is an internal component of each agent linked
to its communication capacity. Conversations are important to facilitate
the interaction between different agents and to carry out some tasks
within a multi-agent environment. Besides facilitating the interaction,
a conversation manager allows an agent to control its course of action
on the basis of the results that are obtained during conversations.
A conversation manager allows an agent i) to add new conversations
required during the communication process, ii) to add agent interaction
protocols (AIP) that can be used to control the message sequence in
a conversation, and iii) in general, to offer access to the completion
state and results of a conversation.
A conversation is added when a message establishes a conversation and
AIP identifiers. A new conversation is dynamically created determining
(by means of the .NET reflection mechanism) the AIP from the CAPNET
library. It is important to mention that an AIP can have several implementations.
Each new conversation is handled in a new execution thread in such
a way that an agent can carry out parallel interaction through simultaneous
conversations.
We have defined a set of classes and interfaces that helps to create
conversations and AIPs in a standard way. At the moment, two interfaces
for the synchronous and asynchronous conversations are implemented.
When a new interface is created, it must inherit from a conversation
class to establish its attributes (conversation-identifier, AIP class
to be used in conversation control and delay time-out between messages)
and must implement some of the interfaces of conversation type, that
mainly serve to give access at run time to an AIP’s concrete
implementation.
Agent Communication and Content Languages
In order to provide communication functionality, FIPA-ACL is implemented
[FIPA00061]. XML is used as the standard encoding for messages. The
content of the ACL messages is represented in a content language allowing
agents to obtain and handle objects from the agent’s knowledge
base. It enables knowledge interchange and handling between heterogeneous
applications and guarantees high interoperability and autonomy degrees.
For CAPNET message coding two languages are implemented: FIPA-RDF0
(using XML representation with validation through schemes) and FIPA-SL
(using the string representation scheme, a grammar and parser for construction
and validation of these content objects).
Dynamic action invocation
Agents can carry out actions on behalf of the others. Because the action
requests are codified in a semantic language (a text format) and are
not obtained directly through method invocation, agents extract the
requested action and achieve dynamic invocation by means of .NET reflection
mechanism. The content language allows expressing an action, its internal
results and its arguments. The agent itself determines how to extract
the action and its attributes to carry out the invocation.
Currently, CAPNET includes a mechanism for action representation in
XML. By using it, agents can request, inside the message content, action
execution by other agents.
Using the basic agent template, agents can obtain requested actions,
and perform the search for these actions in their list of implemented
services. Eventually an agent will perform the requested action, if
it is possible.
Currently the agent determines if it is able to perform the requested
action based on its current state, which is managed by a deterministic
finite automaton.
7 EXPERIMENTAL RESULTS
CAPNET Testing
The communication capacities of the platform were stress tested with
a custom made benchmark application that involved the creation of 100
agents distributed in 10 hosts in a single segment of a 10Mbps local
area network. The benchmark measured the time it took for each agent
to send one message to each other agent, and one to itself sending
a total of 10,000 XML encoded messages with a length of 300 bytes/each.
The results obtained showed that the full load of 10,000 messages took
a variable time of 83 to 108 seconds to be delivered in 40 different
simulations at different times (the network infrastructure was not
exclusive for this purpose and had peek use hours).
Prototype development and testing
A prototype called Contingency Management Simulation System (CMSS)
has been developed, which implements a multi-agent system for optimization
of decision making in contingency situations requiring personnel evacuation
from the petroleum platforms in the Gulf of Mexico [Sheremetov04a].
This marine zone has many weather disasters (like hurricanes), so a
reliable system for simulation of personnel evacuation from the platforms
is required.
The main goal of CMSS is to define and simulate an evacuation plan
for personnel of petroleum platforms, taking into account the following
parameters:
- Data about the predicted route for a hurricane, the
weather and sea conditions.
- Number of petroleum platforms and the number of persons
in each one.
- The number, type and capacity of transport vehicles
available to realize the evacuation. Those vehicles include helicopters
and boats.
The evacuation is usually performed in three phases:
- First phase. The hurricane alert is announced, though the
hurricane is far enough from the platforms. The evacuation of personnel
is started
using only boats with large capacity. It should be mentioned that
on the petroleum platforms a minimum personnel is always required,
even
in an emergency situation. So, less mission critical workers for
platform operation are evacuated first.
- Second phase. The hurricane is closer to the zone of platforms,
so helicopters and boats must be sent to evacuate the personnel.
- Third phase. Because of the critical proximity of the hurricane,
only helicopters could be sent to the platforms. Mission critical
personnel are left on the platforms.
The prototype communicates with a set of databases that contain data
about vehicles and platforms using a Wrapper Agent (WA). The WA handles
all the logic to access the data sources and hides it from the MAS.
For the vehicles, relevant information is their type (boats or helicopter),
maximum capacity for transporting people, maximum velocity, operation
cost per kilometer, and range. For platforms, important data is the
number of persons and the percentage values indicating the people who
must be evacuated at each phase of the plan. Additionally, a route
for the hurricane is obtained from the prediction Agent, through a
simple pre-defined linear equation for each phase (this information
could eventually be obtained from weather forecast sites and web services).
The algorithms construct the optimal routes for the vehicles.
An agent in the CAPNET platform represents each mobile entity in this
application, even the hurricane. At the beginning, a simulation administrator
agent (SAA) uses the described algorithm in order to generate service
requests and to send them to the agents. These requests are managed
by means of a contracting conversation protocol. Each vehicle agent
determines if is able to perform the task depending of its possibilities
to carry out the number of persons specified by the task, or to reach
the specified platforms according of the required distance and time.
This way, the exact evacuation plan for each phase is generated. Once
an agent has committed to perform a part of the evacuation plan, it
will periodically inform the SAA of its progress. The simulator uses
a Tactical Display software developed in the MPI to show graphically
all the active elements in the scenario and their current situation
in real-time. Fig. 12 shows the user interface for this prototype.
Figure 12. Contingency Management Simulation System interface and administration
console
In this application, several key features of MAS were used: integration
with legacy systems (to obtain information on available units and the
personnel to evacuate), integration with tactical display software,
where the SAA is responsible for updating the scenario with information
it receives from the periodical reports from the agents in the system.
By wrapping the service of hurricane trajectory prediction in an agent,
the system can evolve towards the real life operation substituting
the Prediction Agent only.
During the construction of the CMSS, CAPNET proved to be an appropriate
infrastructure for the development of the system, the whole simulator
was built by group of three developers in about a week. The first two
days were used to implement the SAA (that contains the evacuation logistics
algorithm) and the integration with the Tactical Display software,
one day was used to program the agent that wrapped the legacy systems
and databases that contained information about units and personnel
and two more days were used to program the prediction agent and mobile
units agents (vehicles and hurricane itself). The simulator has been
deployed on several hosts in a local area network and behaved according
to the specifications.
8 DISCUSSION
In this section we outline and discuss the main technical features
of the CAPNET implementation over the CAPNET and stress the advantages
of this implementation over the .NET framework.
As shown, the architecture proposed for the core of the CAPNET is divided
into four main blocks: application agents, agent administration and
directory services, security and message transport services. Since
agent communication plays a key role in social interaction, a great
effort was invested in order to make it very extensible and interoperable.
To achieve this, the low level transport mechanisms (TM) were isolated
from the core of the MTS and integrated into it using the “factory
pattern” that enables the possibility to have several concrete
implementations of TMs for different protocols or communication techniques.
Another advantage of using this design pattern is that it will easily
accept the implementation of load balancing techniques in the future.
The implementation of the CAPNET required the extensive use of remoting
for different tasks such as agent communication and administration.
The use of remote delegates allowed the agents to subscribe to the
events published by the MTS, and also enabled the administrative tools
to get instant notifications of the changes in the state of the platform
services.
All the remoteable AP components involved in the message transport
mechanisms (MTS and Remoting TM) and directory services (AMS and DF)
were implemented as Server Activated Singleton Objects and hosted in
Windows Services. This particular implementation has the advantage
of high availability of these components and leads to the clusterization
of these services to increase the reliability of the AP as proved by
our latest experiments on the CAPNET clusterization using Microsoft™ Cluster
Services and Network Load Balancing.
The use of XML as the standard encoding for messages has several advantages.
Some of them are: native support provided by the .NET framework for
managing XML documents, easy integration with the available commercial
and industrial applications and the natural integration to the semantic
languages.
To take advantage of the features of the development platform, the
CAPNET services report their state to the operating system via performance
counters and the event log. This enables CAPNET monitoring and logging
the platform behavior using standard Windows utilities (such as “Performance
Log and Alerts”) and also to raise events and fire alerts if
desired, based on the platform’s state.
In order to make CAPNET compatible with the .NET Compact Framework
(CF) and to be able to deploy administration tools and agent systems
in mobile devices, alternative mechanisms to remoting for communications
had to be implemented. These mechanisms included the use of Web Services,
easily accessible for applications written for the CF and capable of
bridging to the main CAPNET infrastructure.
A mechanism to provide agent services to non-agent clients is provided
by means of a bridge to web-services. Using this bridge, external applications
can request services performed by agents using web service invocations.
This bridge also allows agents to consume web services without having
to deal with direct invocation.
Comparison with other APs
The current development can be compared to some products already available,
most of which are based on Java language and its associated technologies.
One of these APs and probably the most widely used today is JADE. It
has all the advantages of Java based systems, such as platform independence,
which is not yet fully available for the .NET framework. This leads
to the fact that CAPNET can only be used on Windows™ based platforms
and devices compatible with them.
One of the main features of JADE is that it works as a container for
the agents, that is, the agents live inside a container (that can be
distributed across several hosts) and they have to operate inside it
at all times, in CAPNET application agents are designed to be integrated
with the application programs (hence distributed as well), and they
do not require a container to live in. The only case where agent containers
will be used in CAPNET is to support agent mobility (agent traversing
hosts carrying along its state and code) between hosts, which is under
development.
Several prototype MAS are under development using CAPNET, which will
help to test its functionality for concrete applications. Most of these
prototypes were earlier implemented using JADE or the first version
of the CAP and include supply chain configuration, secure desktop and
contingency management. Details can be found in [Sheremetov04a, Smirnov04].
While having prototype applications implemented in both platforms,
extensive testing and performance comparison can be carried out. The
main idea is to measure how easy is to learn and to use the agent programming
paradigm specific for each platform and also to compare their scalability
and performance capabilities.
9 CONCLUSIONS
In this paper we have presented an Agent Platform named CAPNET that
constitutes an excellent example of a distributed system built on top
of the .NET Framework. The primary goal of the CAPNET is to enable
the developers to construct distributed, flexible and open systems
in a multi-agent fashion using AP as the basic infrastructure for communication
and administration of the components. As shown in the paper, the .NET
framework provided an infrastructure that allowed the construction
of the AP that is easily integrated with enterprise applications and
server products.
A very important feature being implemented for the next version of
CAPNET, is the support for agent mobility, that will enable agents
to traverse hosts to perform their tasks. This feature will make extensive
use of .NET remoting and serialization in order to move the code and
execution state of agents between hosts. This leads to the implementation
of agent containers that will transport agents and provide a secure
environment for their execution.
ACKNOWLEDGMENTS
Support for this research work has been provided by the Mexican Petroleum
Institute within the project D.00006 "Distributed Intelligent
Computing" and the Post-Graduate Studies program. The authors
would like to thank Microsoft™ México, especially Luis
Daniel Soto and Felipe Lemaitre for their valuable support in the realization
of this work.
Special thanks to all the MPI colleagues for the helpful discussions
on the CAPNET architecture and to Ana Luisa Hernandez for her contribution
to the development of the CAPNET message encoding mechanism.
REFERENCES
[Bernstein96] Bernstein, Philip A. "Middleware: A Model for Distributed
Services." Communications of the ACM 39, 2 (February 1996): 86-97.
[FIPA00023] FIPA Agent Management Specification. Foundation for Intelligent
Physical Agents, 2002. http://www.fipa.org/specs/fipa00023/
[FIPA00061] FIPA FIPA ACL Message Structure Specification. Foundation
for Intelligent Physical Agents, 2002. http://www.fipa.org/specs/fipa00061
[JADE00] JADE Programmer’s guide, Bellifemine F., Caire G., Trucco
T., Rimassa G. JADE 2.5.
[Jas02] Java agent Services, JAS http://www.java-agent.org/, http://www.java-agent.org/JAS_Intro.htm , JAS Specification PR 1.13 05032002.pdf
[Luck03] Luck, M., McBurney, P. and Preist, C. Agent Technology: Enabling
Next Generation Computing. AgentLink, 2003. ISBN 0854 327886
[Nortel99] Nortel Networks FIPA-OS http://www.nortelnetworks.com/products/announcements/fipa/
[Pallickara03] Pallickara, S., Fox J., Yin J., Gunduz G., Liu H., Uyar
A., Varank M. "A Transport Framework for Distributed Brokering Systems".
Proc. PDPTA'03. Volume II pp. 772-778.
[Plummer00] Plummer D., Smith D., Web Services and Software E-Services:
"What's in a Name? Application Integration and Middleware Strategies",
Research Note COM-12-0101, Gartner Group, 2000.
[Rammer01] Rammer I. Advanced .NET Remoting, 1st edition, Apress, ISBN:
1-59059-025-2
[Santana03] Santana G., Sheremetov B. L., and Contreras M., "Agent
Platform Security Architecture, Computer Network Security", Proceedings
of the MMM ACNS 2003, St. Petersburg, Russia, September 2003,
V. Gorodetsky, L. Popyack V. Skormin (Eds.), LNCS 2776, Springer
Verlag, 2003, pp.457-460
[Sheremetov01] Sheremetov, L., Contreras, M., "Component Agent Platform".
In Proc of the Second International Workshop of Central and Eastern
Europe on Multi-Agent Systems, CEEMAS'01, Cracow, Poland, 26-29 of
September, 2001, pp. 395-402.
[Sheremetov03] Sheremetov L., Contreras M., Chi M., Germán E.,
Alvarado M. "Towards the Enterprises Information Infrastructure Based
on Components and Agent". In Proc. of the 5th International
Conference On Enterprise Information Systems, Angers, France, 23-26 April, O.
Camp, J. Filipe, S. Hammoudi and M. Piattini (Eds.) Escola Superior
de Tecnologia do Instituto Politécnico de Setúbal, Portugal,
2003. pp. 340-347.
[Sheremetov04a] Sheremetov L., Contreras M. and Valencia
C., Intelligent Multi-Agent Support for the Contingency Management
System. Int. Journal
of Expert Systems with Applications (Special Issue), Pergamon Press,
26(1): 57-71, 2004.
[Sheremetov04b] Sheremetov L., Contreras M. and Smirnov A., "Implementation
of an Ontology Sharing Mechanism for Multiagent Systems based on Web
Services". J. Favela et al. (Eds.): AWIC 2004, LNAI 3034, pp. 54-63,
2004. Springer-Verlag Berlin Heidelberg 2004.
[Smirnov04] Smirnov, A. V. Sheremetov, L. B. Chilov, N. Romero-Cortes,
J., "Soft-computing Technologies for Configuration of Cooperative Supply
Chain". Int. Journal Applied Soft Computing. Elsevier Science, Vol.
4(1):87-107, 2004.
[ZEUS00] ZEUS: Nader A., Thompson S. , "A Toolkit for Building Multi-Agent
Systems", Proceedings of fifth annual Embracing Complexity
conference,
Paris April 2000
GLOSSARY
ACL Agent Communication Language
AID Agent Identifiers
AIP Agent Interaction Protocols
AMS Agent Management System
AP Agent Platform
API Application Programming Interfaces
APSM Agent Platform Security Manager
AS Agent Services
CF Compact Framework
CMSS Contingency Management Simulation System
DF Directory Facilitator
FIPA Foundation for Intelligent Physical Agents
MPI Mexican Petroleum Institute
KVT Key-Value Tuple
MAS Multi-Agent Systems
MTA Message Transport Adapter
MTPF Message Transport Protocol Factory
MTS Message Transport System
SAA Simulation Administrator Agent
TM Transport Manager
WA Wrapper Agent
WS Web Services
XML eXtensible Markup Language
About the authors
|
 |
Miguel Contreras obtained in 2002 his MS degree in Computer
Science at the National Technical University of Mexico developing
as a Masters Thesis the original CAP agent Platform. Now he is
a PhD student of the Post-Graduate Studies program at the Mexican
Petroleum Institute. His current research includes Multi-Agent
Systems, Interaction Protocols, Service Oriented Architectures
and Distributed Systems. E-Mail: mcontrer@imp.mx
|
|
|
Ernesto Germán obtained in 2002 his MS degree in Computer
Science at the National Technical University of Mexico. Now he
is a PhD student of the Post-Graduate Studies program at the
Mexican Petroleum Institute. His current research includes Multi-Agent
Systems, Knowledge Representation, Expert Systems, Social Behaviors,
Artificial Life and Distributed Systems. E-Mail: egerman@imp.mx
|
|
|
Manuel Chi obtained in 2003 his MS degree in Computer Science
at the National Technical University of Mexico. Now he is a research
assistant of the Distributed Intelligent Systems Group and a
part-time professor of the Post-Graduate Studies program of the
Mexican Petroleum Institute. His current research includes Service
Oriented Architectures, Distributed Systems, Software Security
and Multi-Agent Systems. E-Mail: machi@imp.mx
|
|
|
Leonid Sheremetov obtained his Ph.D. in computer science from
St. Petersburg Institute for Informatics and Automation of the
Russian Academy of Sciences (SPIIRAS). His research interests
include Multi-Agent Systems, Decision Support Systems, Expert
Systems, and Web-Based Learning. He is a Principal Investigator
of the Research Program on Applied Mathematics and Computing
of the Mexican Petroleum Institute (PIMAyC MPI) where he leads
the Distributed Intelligent Systems Group, a part-time professor
of the Artificial Intelligence Laboratory of the Centre for Computing
Research of the National Technical University (CIC-IPN), Mexico,
and member of the National System of Researchers of Mexico. He
is also member of the Technical Committee "Artificial Intelligence
and Expert Systems" of the IASTED (The International Association
of Science and Technology for Development). E-Mail: sher@imp.mx
|
Cite this article as follows: M. Contreras, E. Germán, M. Chi, L. Sheremetov: “Design
and implementation of a FIPA compliant agent platform in .NET”, in Journal
of Object Technology, vol. 3, no. 9, October 2004, Special issue: .NET
Technologies 2004 workshop, pp. 5-28. http://www.jot.fm/issues/issue_2004_10/article1
|
