The Theory of Classification
Part 14: Modification and Objects like Myself
Anthony J H Simons, Department of Computer
Science, University of Sheffield, U.K.
|
 |
COLUMN
PDF Version |
1 INTRODUCTION
This is the fourteenth article in a regular series on object-oriented
theory for non-specialists. Previous articles have built up models
of objects [1], types [2] and classes [3] in the  -calculus. Inheritance
has been shown to extend both types [4] and implementations [5, 6],
in the contrasting styles found in the two main families of object-oriented
languages. One group is based on (first-order) types and subtyping,
and includes Java and C++, whereas the other is based on (second-order)
classes and subclassing, and includes Smalltalk and
Eiffel. The most recent article demonstrated how generic types (templates)
and generic
classes can be added to the Theory of Classification [7], using
various
Stack and List container-types as examples.
The last article concentrated
just on the typeful aspects of generic classes, avoiding the tricky
issue of their implementations, even though
previous articles have demonstrated how to model both types and implementations
separately [4, 5] and in combination [6]. This is because many of the
operations of a Stack or a List return modified objects “like
themselves”; and it turns out that this is one of the more difficult
things to model in the Theory of Classification. The attentive reader
will have noticed that we have so far avoided the whole issue of object
modification. This is, after all, quite an important area to consider,
since one of the main benefits of object-oriented programming is to
encapsulate state and handle state updates in a clean fashion. In the
current article, we consider the whole area of environment modelling
and the creation of modified objects. Eventually, this leads to an
extension to the theory to handle constructor-methods, through the
use of which an object can create another object “like itself”.
2
THE GLOBAL ENVIRONMENT
The whole idea of object modification, modelled
as updates to the values stored in attribute variables, is problematic
in a functional calculus
like the -calculus. This is because pure functional languages do not
support the notion of reassignment to variables. This would be a side-effect,
and pure functional languages are intentionally free of side-effects,
a property known as referential transparency. However, the effect of
assignment may be approximated using a global set of variable bindings,
called the environment, which is passed from function to function as
the program is executed. The environment is an associative map from
variable names to their bound values. For example, the following map
is an environment which contains two variables p1, p2 which map to
records representing simple coordinates:
During program execution, we may want certain statements to update
the global environment. Modifications cannot literally change the state
of the environment, since we are working in a pure functional language
without side-effects; instead, they construct new environments in which
appropriate changes have been made. The environment must therefore
be passed in and out of each function, since assignments may occur
at any point and their effect must be recorded. Every function accepts
the environment as an extra first argument. Likewise, every function
returns a packaged result, which is a pair of the environment and the
function’s usual return value. The caller of a function must
unpack the returned result to determine the state of the environment,
as well as accessing the ordinary return value.
Initially, the environment
is empty. As variables are declared and initialised, these are added
to the environment using a function like
env-add:
which
takes an environment, a variable name and a value to bind to this
variable in the environment. The function returns the new environment,
in which the old environment env is combined with a maplet from the
variable var to the value val. Since the function
override operator  is
used [5], this will ensure that {var val}
is added to the bindings in the environment, replacing any existing
binding
for var. This is
useful to model both variable declaration with initialisation, when
a variable is first added to the environment, and variable reassignment,
when the value associated with a variable is replaced.
At any moment,
the environment contains the most recently-bound version of each of
the variables. In the body of a function, access to any
global variable is modelled by looking up the value stored in the environment.
Since the environment is basically a map (which is the same thing as
a finite function [1]) this can be done by applying the environment,
like a function, to the labels used as variable names. For example,
the following expression looks up the value of p1 in globalEnv:
To change the coordinate associated with variable
p1, we may execute the expression:
and
this rebinds the value of the variable p1, returning a new environment
in which p1 maps to a different coordinate instance. This models the
notion of reassignment.
3 LOCAL AND GLOBAL UPDATES
Things are made slightly more complicated
if we want both global and local variable bindings. If all functions
merely had local variables,
upon function exit the
environment could revert to the environment that was originally passed to the
function. This would ensure that the bindings set up on entry to the function
were forgotten and any older bindings for the same variables were restored. However,
we want the global bindings to persist between each function call. The environment
passed to a function may possibly be modified and should therefore be handed
back as part of the result.
One possible approach is to try to distinguish between
the global environment, and local variables, which are bound on entry
to functions in the usual way.
The problem with this approach is that a local variable may shadow the name of
a global variable in the environment. When such a variable is updated, we would
expect the local copy to be modified, since the global variable would be hidden.
Upon exit from this scope, the global binding would be restored. However, it
is hard to imagine how we could integrate primitive -calculus
binding with looking up variables in a constructed environment. In any case,
most state variables
are introduced as local variables within the scope of some object or function,
so it is hard to distinguish between the two kinds of variables in practice.
Another
approach is to use a multimap for the environment, that is, a kind of map with
duplicated keys, rather like the association list provided in Common
Lisp. Whenever a scope is entered and a new variable binding is added, it is
inserted ahead of any existing bindings for the same variable. Whenever a value
is looked up, the lookup function returns the first bound value it finds, which
hides any other older bindings found later in the list. Whenever a scope is
exited, all local variables are descoped by explicitly removing the
first binding found
for each variable, so restoring any older bindings. Whenever a variable is
reassigned, the first occurrence of the variable is rebound to the
new value; and this works
whether the variable is global or local. To do this, we need a family of functions
to manipulate the environment:
which behave as described above.
The implementations of these functions would use primitive list operations,
such as cons, head and tail to
search through
the lists representing the multimaps. We defer a fuller treatment of this until
a later article.
4 MODELLING UPDATES AS NEW OBJECTS
For the moment, the simplest
approach is to assume that objects in the theoretical model are “pure
functional objects”, that is, all modifications to
object state do not literally modify the state of the object, rather they create
and return a new object in which the changes are manifest. There is no fundamental
reason why an imperative language cannot be approximated by a functional calculus
in this way. The only difference is that all state-modifying methods, which
are typically void-methods in a concrete language, now have to return
a new instance
of their owning type. Sequences of modifications have to be modelled as nested
method invocations. As an example, consider the following Point type:
which, in addition to the usual x, y and equal methods, has a move method to update its position. This method is typed to return another
Point object, reflecting
the fact that the modified position is in fact a newly-created instance of
Point. Issuing a sequence of move instructions to a Point object p could be
represented
by the following nested method invocations:
since each move returns a new Point, which becomes
the receiver of the subsequent move message. Although, in
the model, the final Point instance at (6, 7) is
a distinct object from the original p : Point, we can still reason
about such sequences
of update operations. But there is a catch: while the idea sounds straightforward
in principle, it turns out that implementing the move method in practice
is quite difficult to accomplish in the theoretical model. So far, none of
our
object
types has had the ability to create new instances “like itself”.
As we shall see below, this requires yet another level of recursion, in which
objects contain their own object constructors.
5 CONSTRUCTORS FOR OBJECTS
In an earlier article [6], we established
the basic strategy for constructing new objects. It involved first
constructing the object type, then the object
implementation, from generators. The basic Point record type (without
the move method) must be constructed from a generator, because it
refers to itself recursively:
and the recursion
variable  is later bound to the record type by taking the fixpoint using
Y.
The
basic point record instance must also be constructed from a generator,
because it refers to itself recursively. A typed object generator is used,
so that we
can attach types to the bound variables. This is the generator for a specific
point instance, at the location (2, 3):
The recursive
point instance is then constructed by supplying a type Point as
the first type-argument, and then taking the fixpoint using Y, to bind
the recursion
variable self over the rest of the record:
While
this works well for examples of specific points, we wanted to allow
the creation of points that were initialised to different coordinates.
To do this,
we extended the generator to accept an extra initialisation argument,
a pair of Integers [6]:
And from
this, we could define a simple object constructor, makePoint,
which uses the type generator GenPoint and the extended object
generator initPoint internally
to establish the recursive Point type, and the recursive point
instance, respectively:
An
example of creating a point instance at a different location is given
by:
The main thing to notice about all this is that object generators
like initPoint contain
within them the structure of the instance that they create. The initPoint function
accepts some arguments (a type argument, then a pair of Integers, then
the value for self) and returns, as the body, the structure of the
point instance.
The generator must logically exist prior to the creation of any object
instance.
It is therefore hard to imagine how we might create an object instance
that contains its own generator! This is rather like trying to pull
yourself up
by your own
shoelaces.
6 CREATING OBJECTS LIKE MYSELF
However, as we anticipated in section
4 above, every time the move method
is invoked, we require a Point object to create a new instance
like itself, except that the x and y coordinates
will take on different values.
This is exactly
like requiring an object to have its own constructor as one of its
methods. To see
this, we shall change the definition of the Point-type, so
that it now also has a move method. Defining the type is straightforward:
However, the implementation
is less straightforward. If we could assume that an object constructor makePoint already
existed, we could provide the extended generator for moveable points
with extra initialisation
arguments
as the following:
Here, the implementation
of the move method has been added,
in which the body simply calls makePoint with the same pair
of Integer arguments that were given to the move method. This
should in principle create and return a new Point instance
at the desired location.
However, the above is not yet a legal definition.
The reason for this is that makePoint must
use initPoint internally to construct the new object instance.
As a result, the above implies a recursive definition of initPoint.
To see the recursion more clearly, we can replace the occurrence of makePoint by
its expansion
into generators (this comes from the body of the definition of makePoint in
section 5 above):
From the bold highlight, it is clear that initPoint occurs
both on the left and right-hand sides of this “definition”.
As readers of this series will appreciate, a recursive definition is
not a proper definition in the -calculus
[1], but merely an equation that must be solved for some value of initPoint.
7
CONSTRUCTOR-LEVEL RECURSION
It is interesting to note that the model
now requires recursion on three different levels:
- object-level recursion, because objects frequently need
to refer internally to
self, so that methods can call other methods of the same object;
- type-level recursion, because object types frequently define
methods that accept
and return objects of the same type as themselves;
- constructor-level recursion, because objects frequently
have methods that construct
and return other objects like themselves.
Constructor-level recursion
was first identified by Cook and others [8]. In the cited paper, they
referred to this initially as “class-level” recursion.
Later, this was changed to “constructor-level” recursion,
to better reflect the facts [9].
The technique for solving constructor-level
recursion is the same one we have used for solving recursive definitions
before [1], in which
we abstract
at
the point of recursion and introduce a new variable standing for the
recursively-defined thing, here the object constructor for Points.
At first, it is tempting to think
that we need to introduce a recursion variable standing for the whole
of initPoint.
However, the type-argument of this function doesn’t enter into
the constructor-recursion: we know in advance that we are always going
to create things of type  ,
where
is eventually bound
to Point. The object constructor function
is something that takes a pair of Integers and returns genPoint :
,
a simple object generator for building recursive Point instances
after their fields have been initialised.
We shall therefore introduce a constructor recursion variable ctor,
with the type:
standing for the Point constructor.
We will introduce this recursion variable after the type argument (so
that will be bound)
but before the other arguments
from initPoint, because we need to fix the constructor-level
recursion before we accept Integer arguments and fix the object-level
recursion.
The result
is a typed generator for an object constructor, which we shall call genInitPoint and
which has the type signature:
This looks a little daunting,
but essentially it is similar to the type signature for initPoint,
with an extra type argument in the signature, giving the type of the
recursion variable ctor, standing
for
the constructor.
The
full definition
of genInitPoint is given by:
In this, ctor is introduced as the extra recursion variable standing for the Point constructor.
This allows the use of ctor in the body of the move method.
The application of the fixpoint finder Y is essentially to bind the
object-level recursion inside instances created by ctor. We shall return
to this below.
Note that genInitPoint is now properly defined, without having
to refer recursively to itself.
8 OBJECTS WITH CONSTRUCTOR METHODS
Point instances, which now have their own constructor method move,
are created from this generator in several stages. First, we supply
the desired type argument Point:
This yields a
typed function in which {Point/}
has been substituted throughout. The first argument to this function
is the recursion variable
ctor. We
want to bind ctor recursively over the rest of the body, using
the fixpoint finder
Y.
But first, let us consider the type signature of the above function
(after step 1), to see whether taking the fixpoint is a legitimate
operation.
It has the
signature:
in other words, it takes a first argument of the ctor constructor-type
and then returns something with exactly the same type signature (if
we ignore
the bracketing
of the remaining types). This is useful, because it satisfies the conditions
for a generator. Generators must always have the form: gen:,
since, when they are applied to some argument, they must return that
argument
unchanged [1].

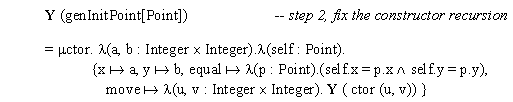

So, the step-1 result is indeed a generator-for-a-constructor, which
we can now fix in step 2:
This yields a
Point-constructor function beginning (a, b : Integer x Integer)
... and in whose body ctor is recursively fixed to refer
to
this, the same
Point-constructor function. We denote this fact by prefixing the function
with  ctor, according
to convention [1]. Below, we must remember that ctor now refers
to this function, the step-2 result. In the next step, we supply the
desired
coordinate position
for a particular point instance:
This yields a
function in which {2/a, 3/b} have been substituted, thereby supplying
the coordinate position (2, 3) for the first point instance.
The step-3 result
is a function beginning (self : Point)…, in other words, a simple
object generator, whose object-level recursion we can fix in the usual
way using Y:
This is now a
point instance, in which self refers recursively to this instance,
and ctor refers back to the constructor which built
this instance! Note how
the formula for creating an object that contains its own constructor
requires an
additional fixpoint operation. The above formula could be rewritten
to show all three fixpoints, including the type-level fixpoint:
In this, the innermost fixpoint:
[Y GenPoint] fixes the type-level recursion, yielding the recursive Point type.
The next outermost fixpoint: Y (genInitPoint[YGenPoint]) fixes the
constructor-level
recursion, yielding
the recursive ctor constructor. The outermost fixpoint: Y (Y (genInitPoint[YGenPoint]) (2, 3))
fixes the object-level recursion, after the constructor ctor has
been applied to some initialisation arguments (2, 3), yielding the
recursive
point instance.
9 UPDATING A POINT
Let us call this initial Point instance
p1, and construct it using the formula:
This object has
a move method, which contains a recursive
reference to the object constructor ctor that was used in
the building of p1. We
would like
to see the
effect of invoking the move method on p1, to see what kind
of object this returns. We should like it to return a new Point instance
at a different location, so we shall call this instance p2:
At this stage, we have to refer
back to the definition of ctor to
understand how to simplify this any further. We obtain this definition
formally
by unrolling the value of the variable ctor, which was recursively
bound at
the end of
step 2, above. The following sidebar shows this:
So we can now
continue the main simplification of p1.move(4,5) with the substitution:
This is the final
result, showing that p2 is another Point instance
at the coordinates (4, 5) and with its own copy of the constructor ctor embedded
inside its move method. So, we have shown that it is possible
to create objects with their own constructor-methods embedded inside
them.
However,
it was theoretically
dense
and required three different levels of fixpoints.
10 CONCLUSION
We started this article with a discussion of how to
model object state updates in the Theory of Classification. In -calculus,
variable reassignment is prohibited, but the same effect may be approximated
by extending all functions to accept
and return an environment argument, which is some kind of map storing
the current variable bindings. The machinery for binding and unbinding
variables
is quite
complex: eventually, we must use a multimap and handle all binding,
unbinding and lookup explicitly. Furthermore, we need implementations
of List-methods
like cons, head and tail to manipulate the multimaps, which are essentially
association
lists with duplicated keys.
An alternative approach is to model state
updates as the creation of new objects. A sequence of updates is modelled
as a nested series of
method
invocations. However this requires a new level of sophistication in
the model, in which
objects contain
their own constructors. The major part of this article was devoted
to explaining constructor-level recursion. This is the third
kind of recursion,
after
object-level and type-level recursion. With this
facility, we were able to provide Point objects
with a method: move : Integer x Integer  Point, which returns
a new Point instance.
This same facility would be required to define the List-methods cons and tail, which both return new List instances. So, constructor-level
recursion
is a
generally useful feature, essential for the definition of more complex
kinds of datatype.
With this facility, we may now provide implementations for the container-classes
like List and Stack, which had been deferred in the previous article
[7].
REFERENCES
[1] A J H Simons: “The Theory of Classification,
Part 3: Object Encodings and Recursion”, in Journal of Object
Technology, vol. 1, no. 4, September-October 2002, pp. 49-57. http://www.jot.fm/issues/issue_2002_09/column4
[2]
A J H Simons: “The Theory of Classification, Part 4: Object
Types and Subtyping”, in Journal of Object Technology, vol. 1,
no. 5, November-December 2002, pp. 27-35. http://www.jot.fm/issues/issue_2002_11/column2
[3]
A J H Simons: “The Theory of Classification, Part 7: A Class
is a Type Family”, in Journal of Object Technology, vol. 2, no.
3, May-June 2003, pp. 13-22. http://www.jot.fm/issues/issue_2003_05/column2
[4]
A J H Simons: “The Theory of Classification, Part 8: Classification
and Inheritance”, in Journal of Object Technology, vol. 2, no.
4, July-August 2003, pp. 55-64. http://www.jot.fm/issues/issue_2003_07/column4
[5]
A J H Simons: “The Theory of Classification, Part 9: Inheritance
and Self-Reference”, in Journal of Object Technology, vol. 2,
no. 6, November-December 2003, pp. 25-34. http://www.jot.fm/issues/issue_2003_11/column2
[6]
A J H Simons: “The Theory of Classification, Part 12: Building
the Class Hierarchy”, in Journal of Object Technology, vol. 3,
no. 5, May-June 2004, pp. 13-24. http://www.jot.fm/issues/issue_2004_05/column2
[7]
A J H Simons: “The Theory of Classification, Part 13: Template
Classes and Genericity”, in Journal of Object Technology, vol.
3, no. 7, July-August 2004, pp. 15-25. http://www.jot.fm/issues/issue_2004_07/column2
[8]
W Cook, W Hill and P Canning: “Inheritance is not Subtyping”,
Proc. 17th ACM Symp. Principles of Prog. Lang., (ACM Sigplan, 1990),
pp. 125-135.
[9] W Harris, Typed Object-Oriented Programming: ABEL Project
Posthumous Report, Hewlett-Packard Laboratories (1991).
About the author
|
 |
Anthony Simons is
a Senior Lecturer and Director of Teaching in the Department of
Computer Science, University of Sheffield, where he leads object-oriented
research in verification and testing, type theory and language
design, development methods and precise notations. He can be reached
at a.simons@dcs.shef.ac.uk.
|
Cite this column as follows: Anthony J.H. Simons: “The Theory
of Classification, Part 13: Template Classes and Genericity”,
in Journal of Object Technology, vol. 3, no. 8, September-October
2004, pp. 15-26. http://www.jot.fm/issues/issue_2004_09/column2
|
